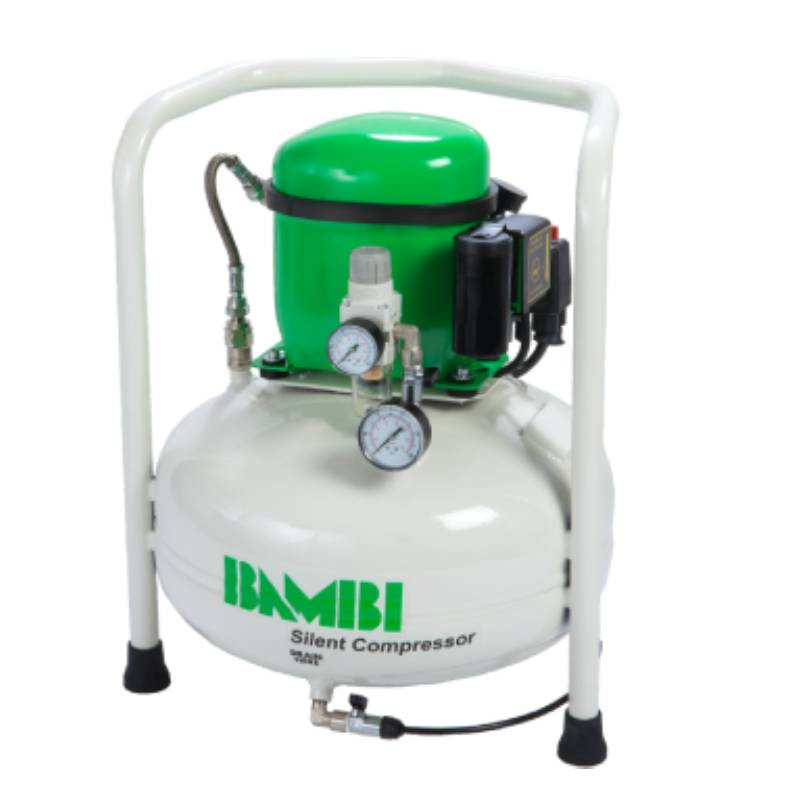

BB24V

Product Description

BB24V oil lubricated compressors were developed for users where ultra low noise and relatively small flow of air is required. With sound levels from just 40 dB(A) and almost no vibration when running, BB24V compressors can be used close to the end user without causing any noise intrusion.

Popular applications include laminating machines, staple guns, air brushing, exhibition stands, adhesive dispensing, test equipment, veterinary dental, door operating systems, pneumatic control valve systems, printers, heat presses, upholstery, watch pressure testing and engraving tools.

Designed to require minimal maintenance and to ensure years of trouble free use, the BB24V has a 8 bar maximum working pressure, clearview oil level check and 10 micron filter regulator.

Technical Specifications:
Motor Power: 0.34 kW (0.5 HP)
Duty Cycle: 50%
Air Receiver: 24 L
Maximum Working Pressure: 8 bar (114 psi)
Noise Level: 40 dB(A)
Weight: 28kg
Dimensions (HxWxD) 52 x 40 x 40 cm

Free Air Delivery:
@ 1 Bar - 45 lpm
@ 2 Bar - 40 lpm
@ 3 Bar - 37 lpm
@ 4 Bar - 35 lpm
@ 5 Bar - 34 lpm
@ 6 Bar - 33 lpm
@ 7 Bar - 32 lpm
@ 8 Bar - 31 lpm
