Bond-Rite® REMOTE
Manufactured by Newson Gale Ltd
Product Buying Options
Additional Sales Information: Wall mounted battery powered continuous ground loop monitoring with visual indication
Product Description
The Bond-Rite REMOTE indicator station houses the ground loop monitoring circuit and a bright green LED which pulses continuously when it detects that the resistance between the conductive metal equipment to be grounded and the site’s verified earth ground (e.g. copper tape) is 10 ohms or less.

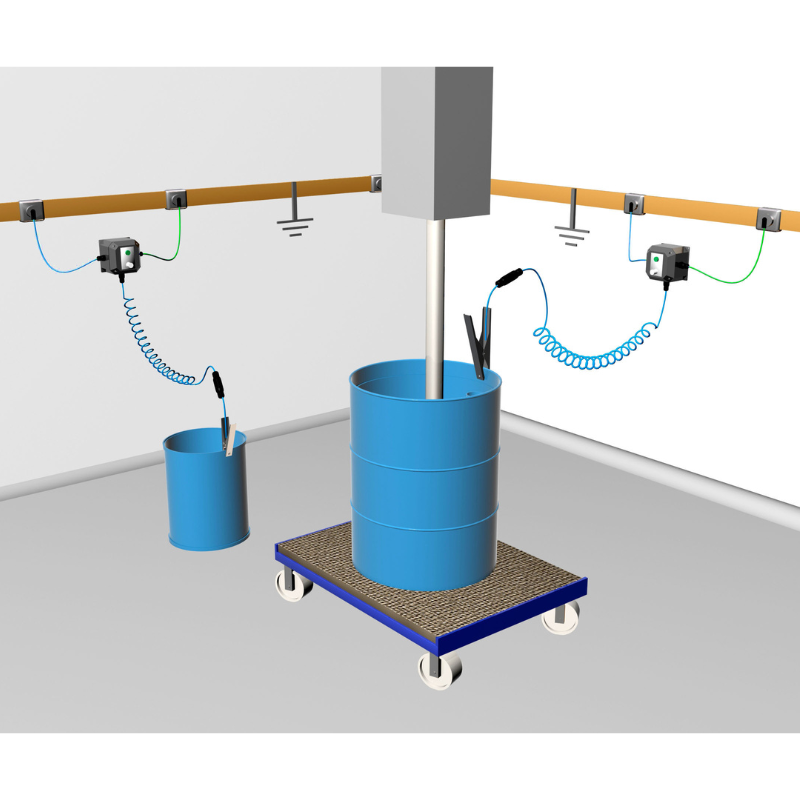

Once connected the Bond-Rite REMOTE continuously monitors the loop resistance of the circuit between the equipment and the verified ground point (e.g. wall-mounted earth bar).
The flashing green LED provides process operators with a continuous visual reference point that enables them to monitor the ground status of conductive metal equipment capable of accumulating static electricity.

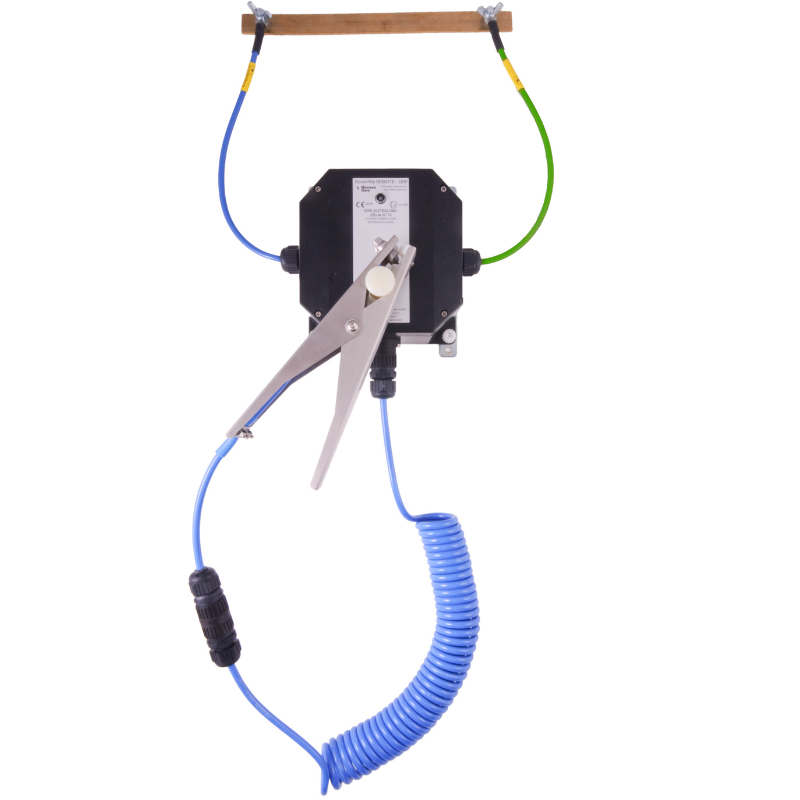

The standard GRP enclosure is static dissipative and suitable for general processing environments.

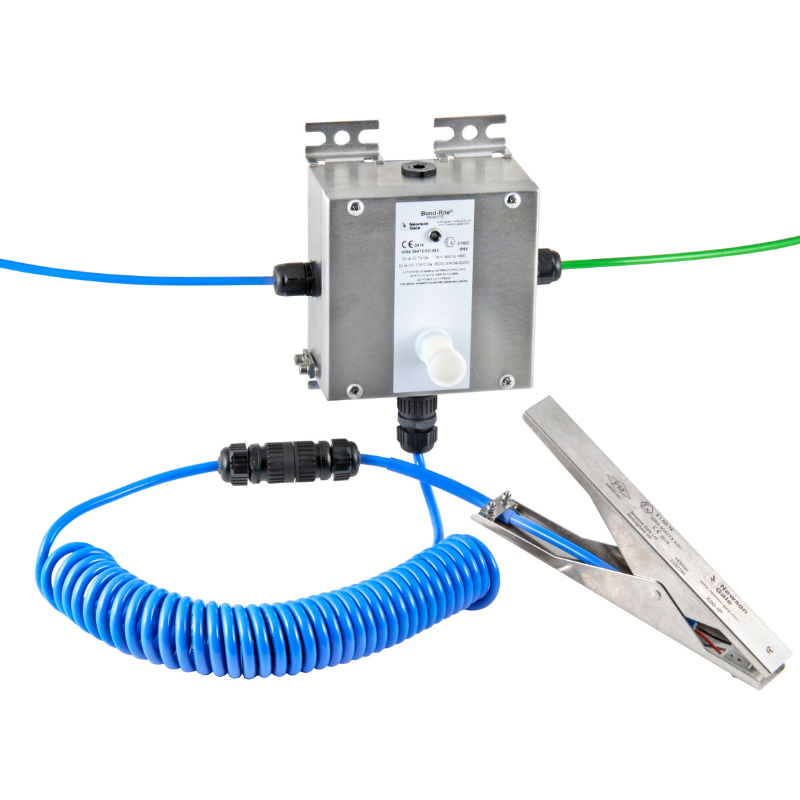

The stainless steel enclosure is designed to cater for hygienic or corrosive environment specifications.
Both enclosures provide a minimum IP 65 degree of ingress protection and are suitable for both indoor and outdoor installation.

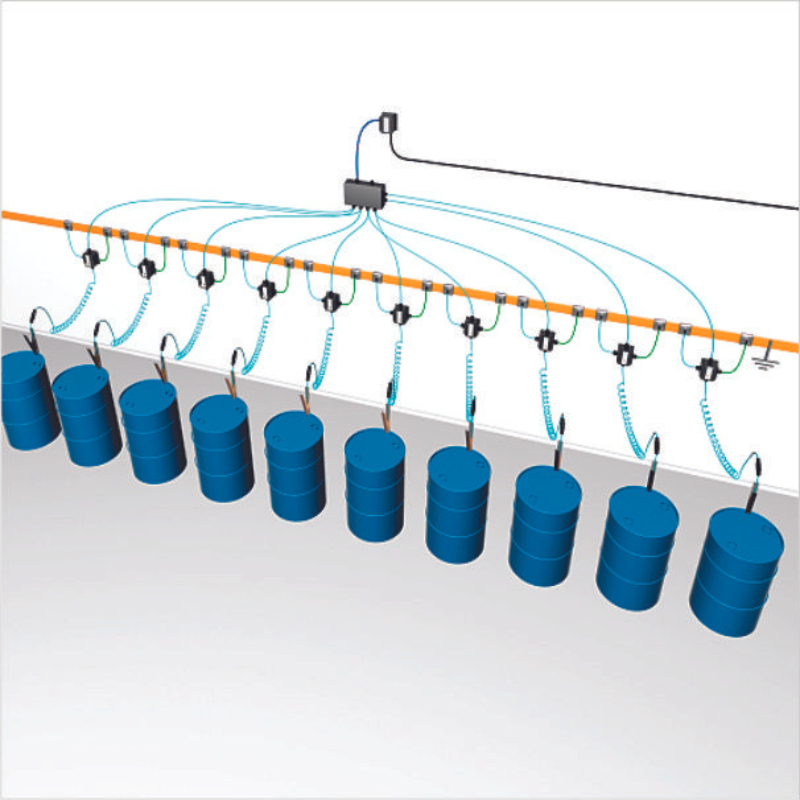

The Bond-Rite REMOTE can be powered with an intrinsically safe 9V battery (included) or an external 230/115 V AC power supply which can power up to 10 individual indicator stations.
The Bond-Rite REMOTE is an ideal solution for applications and installations where interlocks with the process are not possible or required.
Please Note: The Bond-Rite REMOTE does not check if the site’s verified earth grounding point is connected to the general mass of earth. It is the responsibility of the site owner to ensure that their installed ground network is connected to general mass of earth in line the relevant national standards.
