DOWNER FRAMING HOOK ON FRAMING SYSTEM - DCS033

Product Description


DOWNER FRAMING HOOK ON SYSTEM

DCS033 SYSTEM OVERVIEW

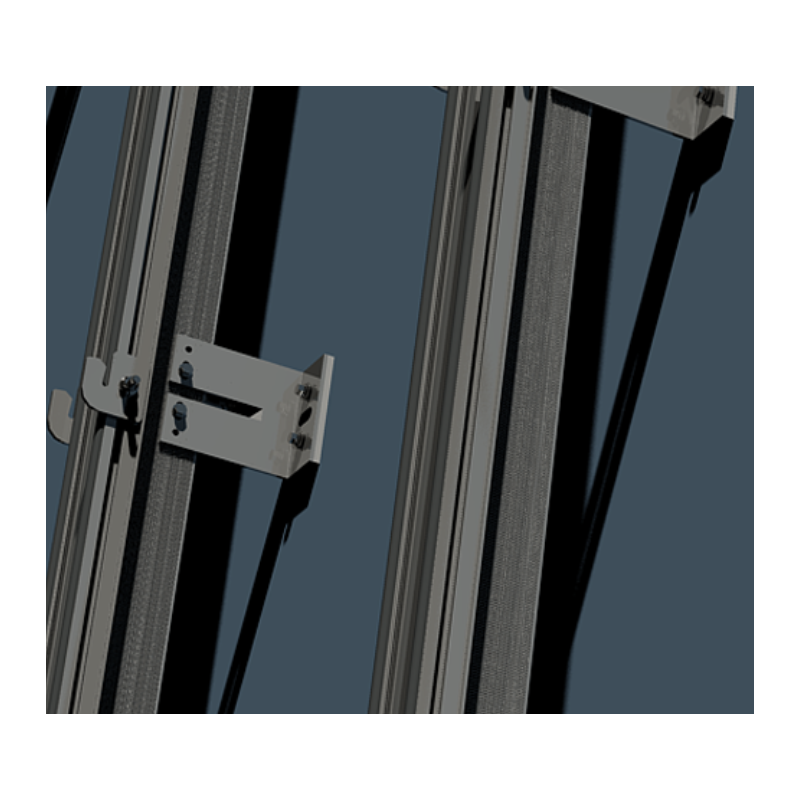

Downer Framing aluminium rainscreen claddingframing system, DCS033, is designed to provide support to metal hook-on cassette cladding panels using the principle of a ventilated façade.

Downer HELPING HAND® brackets combined with extruded aluminium L & T profiles offer an adjustable system allowing for thermal and structural movement and variation in cavity depth to suit your specific project requirements.

DCS031 HELPING HAND® brackets are available as standard with Ø6.5mm holes (SFS / Timber) and 22xØ11mm slots (masonry / concrete) to suit project specific primary anchors.

CAVITY RANGE

Downer DCS031 HELPING HAND® brackets are available in different sizes ranging from 40 to 400mm projection offering the following cavity ranges when combined with DCS033 vertical profiles.

FRAMING SITE CHECKLIST

Before commencing installation of DCS033 framing system please make sure you have received the following information:

Project specific static calculations from your Downer Designer portal. Or get in touch with the team direct – info@ downerdesigner.com. These will dictate maximum vertical HELPING HAND® bracket centres, location of fixed and sliding point brackets and size / type of primary fixing based on project specific dynamic and dead loads.

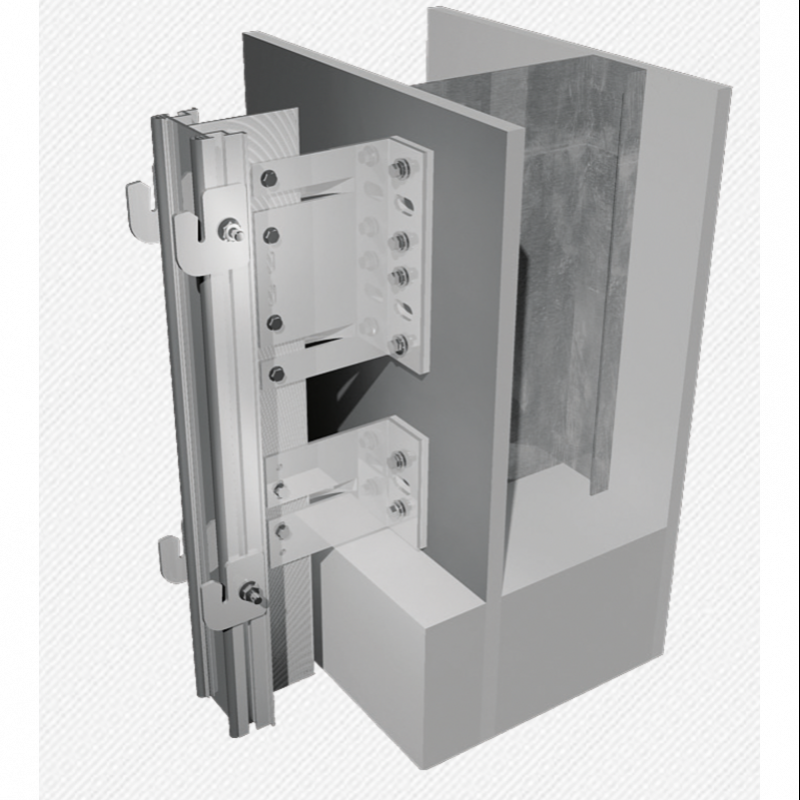

DCS031 HELPING HAND® brackets and DCS033 rails set out drawings showing location of dead load (fixed point), wind restraint / expansion brackets (sliding point) and rails horizontal spacing. Generally, double brackets are used as fixed point and singles as sliding point.

Downer Framing's Hook On Rainscreen Framing System DCS033 can be specified via NBS Source
