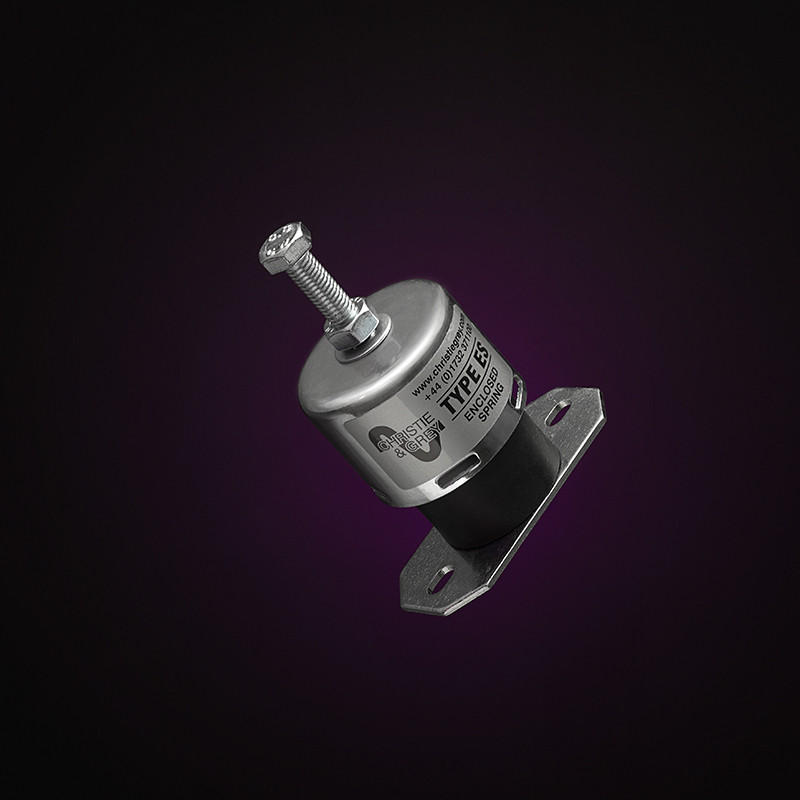

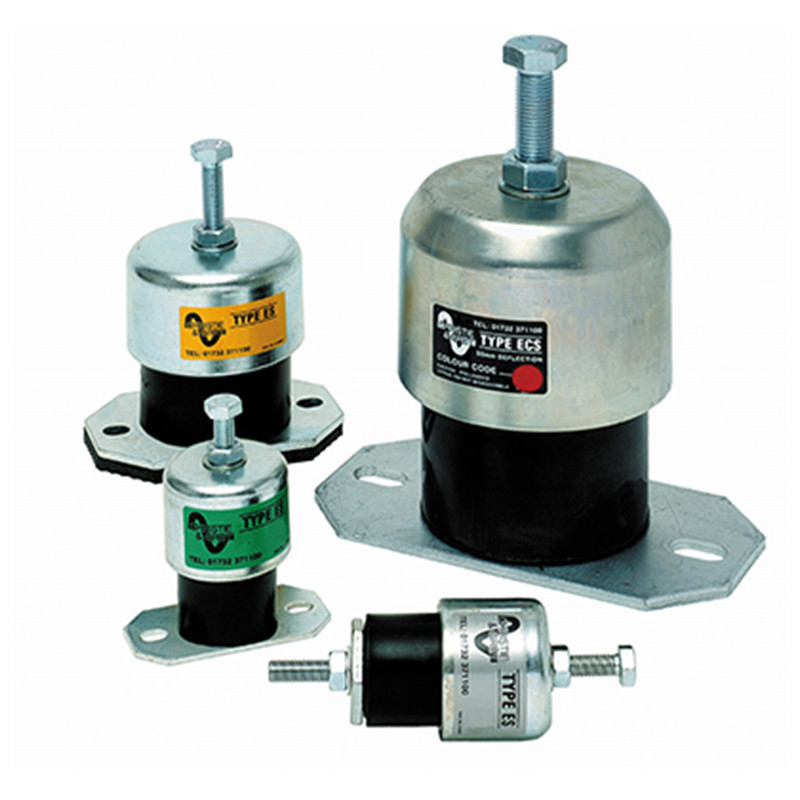

Enclosed Spring Mountings Type ES/ECS
Manufactured by Christie & Grey Limited
Product Buying Options
Product Description
A unique range of mountings designed primarily for building services applications where the control of low frequency vibration and noise emanating from mechanical plant is of paramount importance.
The benefits of a combined rubber and steel housing for the spring have helped establish the ES and ECS mountings as industry standards accepted by specifiers, equipment manufacturers and mechanical services installers alike.
Design Features
• Nitrile rubber (oil resistant) lower spring housing eliminates the possibility of metallic continuity and ensures excellent acoustic performance. Steel reinforced on ECS range.
• Full enclosed captive assembly protects the spring and controls transient motion.
• All steel components are zinc plated.
• Nominal 15, 20, 25 & 50 mm deflection colour coded helical steel springs to BS1726 Class B, laterally stable with 50% overload capacity.
• Simple single screw height adjustment.
• 6 mm thick ribbed rubber seating pads available for ES25 and ECS ranges.
• Colour coded labels for easy identification.
• Stainless Steel variants available.
Typical Applications
• Axial and Centrifugal Fans
• Air Handling Units
• Chillers and Cooling Towers
• Rotary and Multi-Cylinder Compressors
• Diesel Generating Sets (ECS only)
• Mechanical Test Rigs
• Isolation of Sensitive Equipment
