Miti-Gate® R Manual ‘Crash Tested’ Barrier

Product Description

This is the WORLDS FIRST Vehicle Security Barrier (VSB) independently tested to IWA14-1:2013, PAS68:2021, and CPNI's Vehicle Attack Delay Standards (VADS), ensuring the most comprehensive protection against the small, medium, and large hostile vehicle threats.

The Miti-Gate®R is our latest manual swing barrier, borne from the highly successful Miti-Gate® introduced by Cova Security Gates in 2012. Redesigned and Redeveloped to take account of new and emerging vehicle threats.

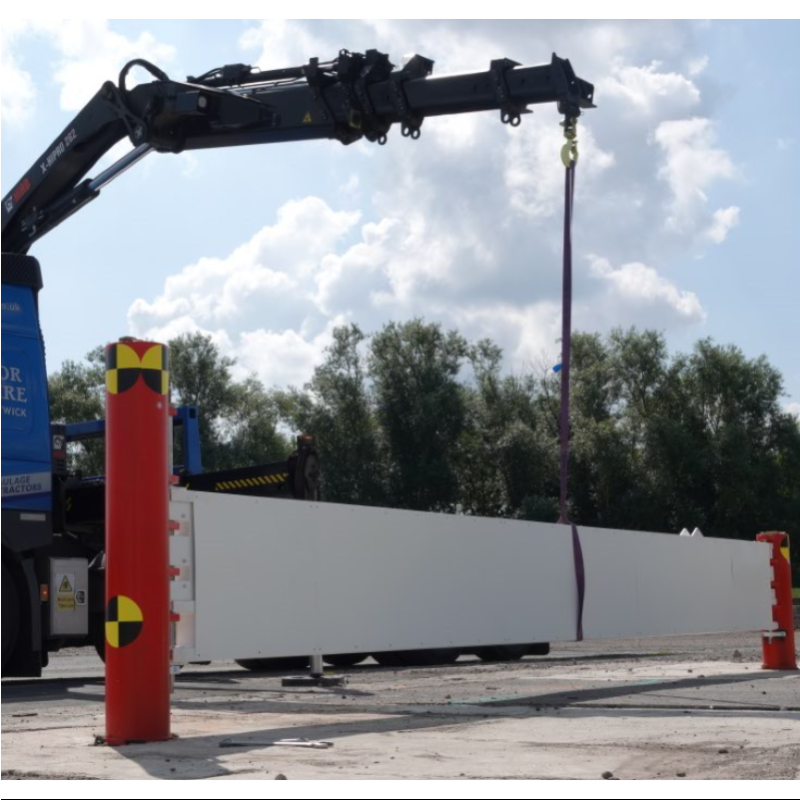

Having successfully completed 4 unique impact tests, the Miti-Gate®R is the only manual swing barrier tested to TRULY 'mitigate' all recognised vehicle threats.

Sizing
Miti-Gate®R is available up to 8-meter clear opening, utilising a single leaf, sited between 2 of our Crash Tested Shallow Depth Bollards, this a cost-effective, simple, 4 x crash-rated manual barrier for maximum protection.

Patented Arrestor System
The Miti-Gate®R holds our patented arrestor system, housed within an aluminum/steel leaf, designed to be mounted between Cova Security Gates static crash-rated shallow depth bollards, secured with a hinge, and locking pin.

Advertising space

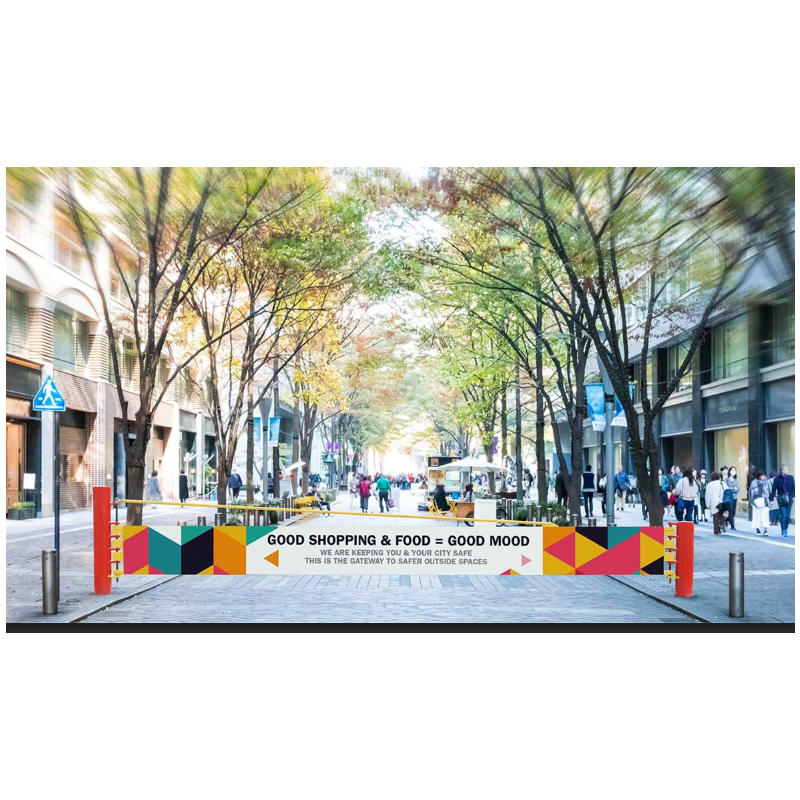

Finished to your choice of RAL colour, this large flat surface is the perfect advertising space for branding or specific messaging. With the use of graphics, this gate can also be finished to blend with the installed environment. All it needs is your imagination!

Our 'new' Miti-Gate®R leaf is designed to easily replace the original Miti-Gate® leaf, leaving the original bollards in situ. Effortlessly increasing your protection without the need for any additional groundworks, making this an affordable solution to current and emerging vehicle threats.

• Manufactured in the UK
• 2 x CPNI Vehicle Attack Delay Standard (VADS) 10-2019 rating
  Small Vehicle - Class M1B
  Medium Vehicle 4x4 - Class N1G
• 1 x IWA14-1:2013 rating
  Small Vehicle - Class M1B - 30mph/48kph
  V/1500[M1]/48/90:0.4
•  1 x PAS68:2010 rating*
  Large Vehicle Class N2 - 7.5 tonne - 40mph/64kph
  D/7500[N2]/64/90:3.0/0.0
  *Design assessment, (derived from the original physical Miti-Gate® PAS68 Impact Test)

• Available in widths of up to 8m.
• Ideal permanent or semi-permanent solution.
• Fully removable leaf in under 5 minutes!
• Shallow depth foundation of 215mm.
• Manual swing gate - wide opening for easy access.

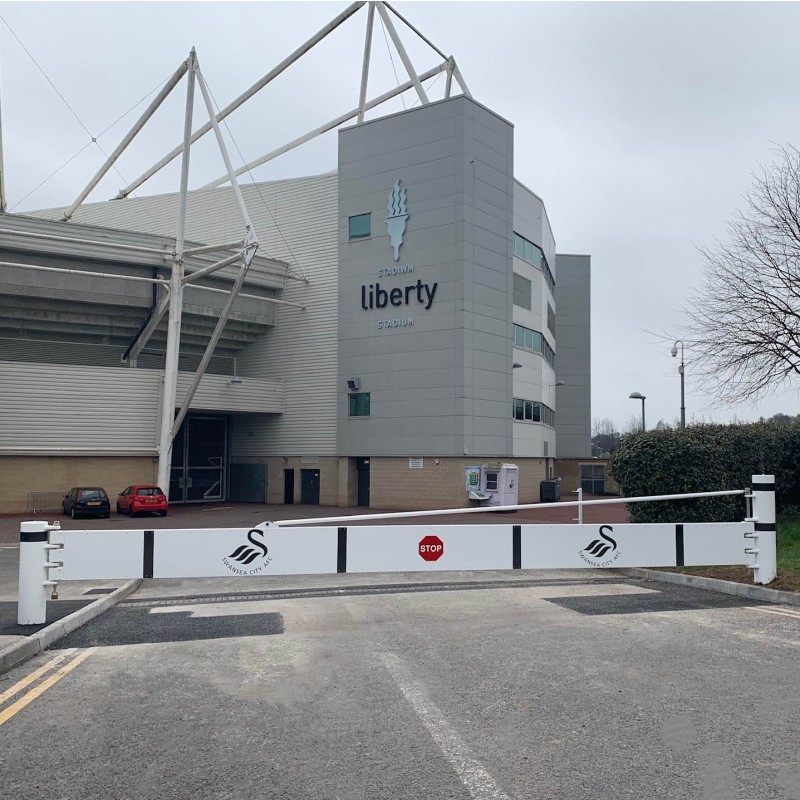

• Ideal solution for securing public areas, high streets, airports, and sports stadiums.
• Retrofit available to our existing Miti-Gate®
• Perfect Advertising/Branding Space!
• Often used to manage traffic flow in and out of venues.
