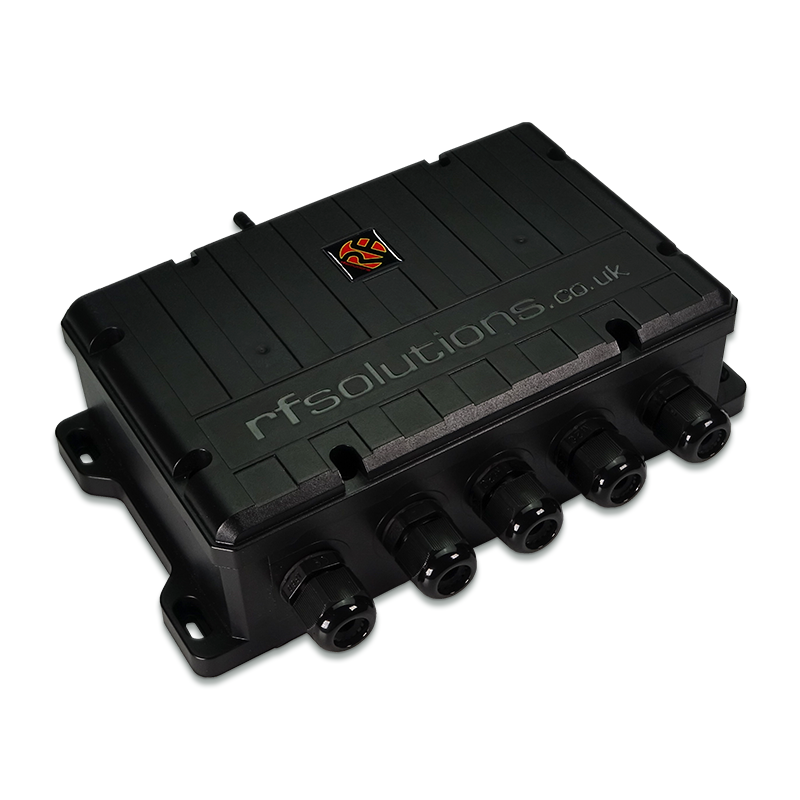

RIoT - 4 Channel Dual Band Receiver

Product Description

4 Channel Dual Band receiver - RF LoRa and Wi-Fi.

This versatile wireless switching control receiver is designed for many industrial applications. It has 4 changeover relay outputs which can be controlled from one or many switches from one or many transmitters. Can be operated via App control via a smart device as well as a handheld transmitter.

NEW Feature - Auto Event Timers - With a built-in time clock available wherever the system is deployed, this RIoT system is feature-rich for switching outdoor lighting. With automatic event timers preset by the installer, the relays can be auto configured to operate relays at preset times, as well as to dawn or dusk times that change all year round.

Available as a receiver only or complete system setup (receiver & transmitter)

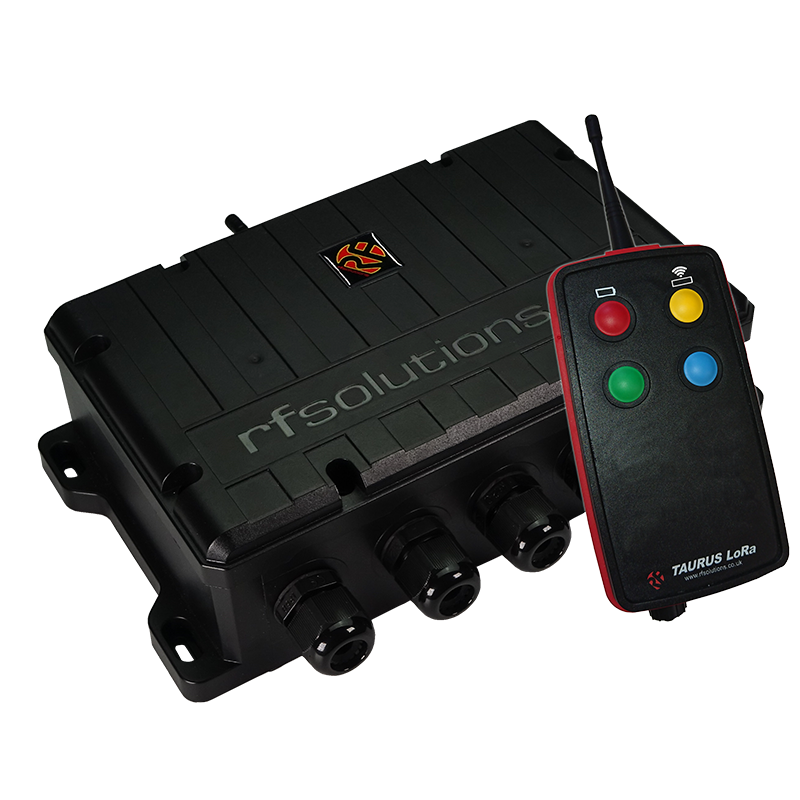

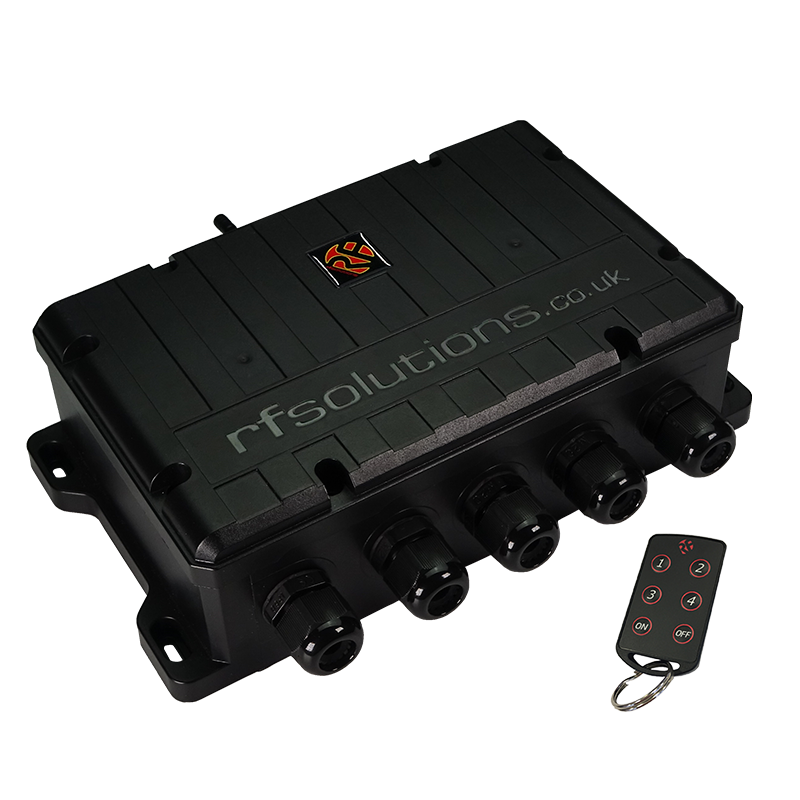

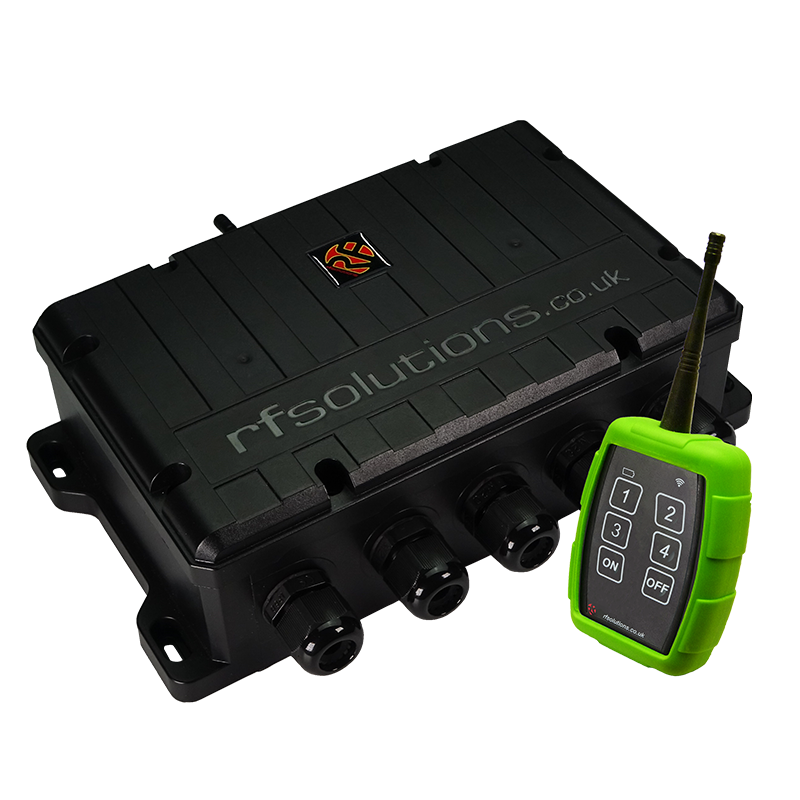

Complete Remote Control Systems - RIoT-FOB-8S4 / RIoT-TRAP-8S4 / RIoT-SCORPION-8S4 / RIoT-TAURUS-8S4

Features:

• RF and Wi-Fi control
• Smart device app control (from anywhere)
• Operating range:
  • Up to 2KM (FM)
  • Up to 16Km (LoRa)
  • Up to 100m (Wi-Fi)
• 4 Channels each rated @ 1KW
• Easy connections via Screw terminals
• Outputs can operate in - Momentary, Latching or timed
• Power supply -
  • 12-32Vdc/ac
  • 110/230Vac
• Signal strength LED indication
• Learns up to 128 transmitters (Buttons/channel)
• Transmits acknowledge signal back to transmitter/app
• Snubber network for each relay
