SE IAQ Control
Manufactured by SE Controls
Product Buying Options
Product Description

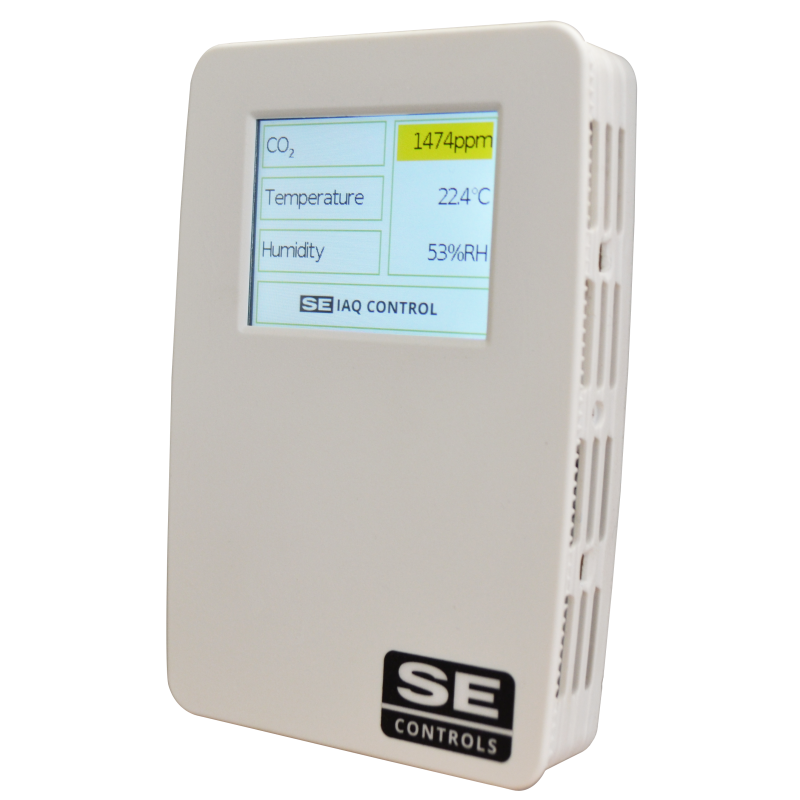

SE IAQ Control for wall mounting measures indoor air carbon dioxide concentration, temperature, and relative humidity in rooms.
The unit connects to Direct Digital Control (DDC). Linear outputs are pre-programmed as CO , temperature, and relative humidity transmitters.
Power
Power Input, 24V dc (50-60HZ) ± 20%
Power Consumption <0.6W
Peak Power Consumption <2W
Wiring Connections Screw terminal, max 1.5mm ²
Environment
Sensor Life Expectancy > 15 years
Display Configurable colour LCD with CO2 [ppm], Temperature [°C] and Humidity [% RH]
Buttons Touch Display [Disp]
Warm-up Time ≤1min. (@full specs 15 min)
Operating Temperature Range 0-50 °C
Operating Humidity Range 0-95% RH, non-condensing
Operating Environment Residential, Commercial
Miscellaneous
Dimensions 116 x 83 x23mm
Dimensions display 50 x 38mm
SE IAQ Controller is compatible with NV LogiQ PSU. For other applications please contact SE Controls
