SONJA™

Product Description

WHEN AVAILABLE WIDE AREA NETWORKS ARE INADEQUATE, INSECURE, OR UNPREDICTABLE:

SONJA™ from Mediaport Systems bonds up to eight WANs to create near enterprise-grade connectivity, at a moment’s notice, and in the most challenging environments:  SONJA bonds up to four cellular networks, four satellite, or any combination of 5G, 4G, satellite, public WiFi, and fixed-lines.

SONJA uses different telcos and WAN access media to create multiple diverse backhaul routes.  It combines the WANs into a single, virtual connection, aggregating the available bandwidth and creating layers of redundancy.

• Combines up to eight WANs into a single virtual connection.
• Can dramatically increase bandwidth, resilience, and uptime.
• Aggregates up to 80% of the available WAN bandwidth, presenting a single fast connection to users and applications.
• Bonds upstream as well as downstream.
• Simultaneously connects to up to 4 different cellular networks for best available coverage.

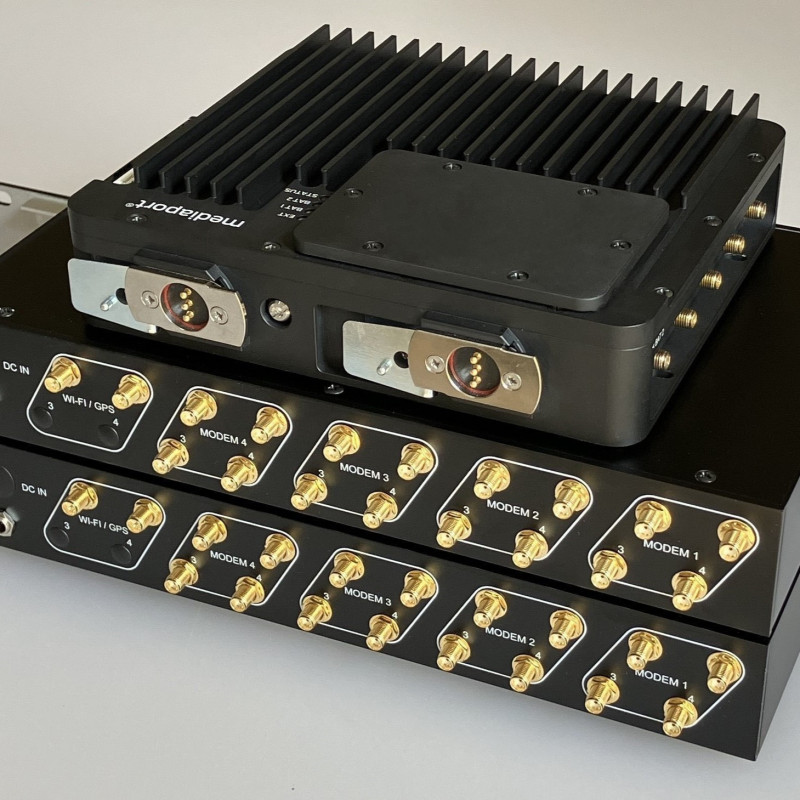

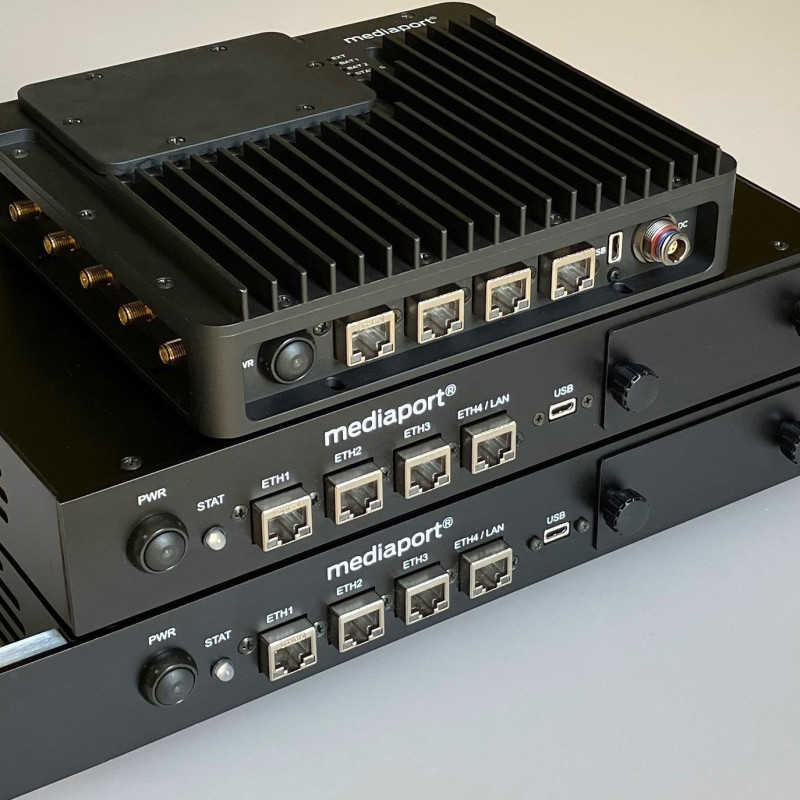

SONJA is available in three enclosure formats, optimised for different deployment scenarios.  All are based on the same industrial-spec, gigabit-class hardware, high-grade Telit® Cinterion modems, and real WAN bonding by Bondix®.

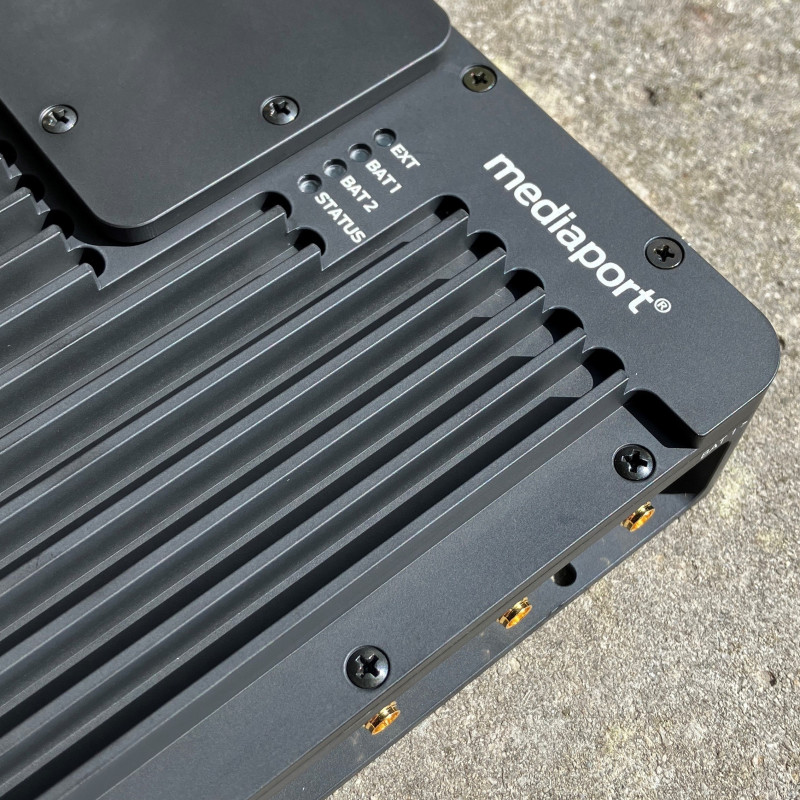

• SONJA Rugged:  Battery portable, outdoor, IP67.
• SONJA Rackmount:  19” x 1u, indoor or in-vehicle.
• SONJA Desktop:  Compact, indoor or in-vehicle.

Alongside these standard COTS versions, SONJA is available with powerful edge computing capabilities to certified OEMs.  Our OEM platforms include one or more Guest VMs in which specialist apps can be securely accommodated and run, with direct access to SONJA’s core gateway and WAN bonding functions via the Linux VM vSocket interface.

• Secure Guest VM(s) for edge computing by certified OEM partners.
• Potent compute-and-connect functionality in small rugged form-factors.
• Real-time interaction between apps and router functions via API.
• Reduced box count optimises SWaP (size, weight, power) and reduces hardware costs.

Made In Britain, and with critical components sourced exclusively from trusted jurisdictions, our SONJA range boast a hardened security posture:

• Trusted supply chain.
• Hardware-based secure boot.
• Trusted execution environment.
• Maxim® DeepCover® TPM.
• WireGuard-based tunnel encryption.
• Optional security features for approved government customers.
