SPIG-Lite
Manufactured by Pure Vista Ltd
Product Buying Options

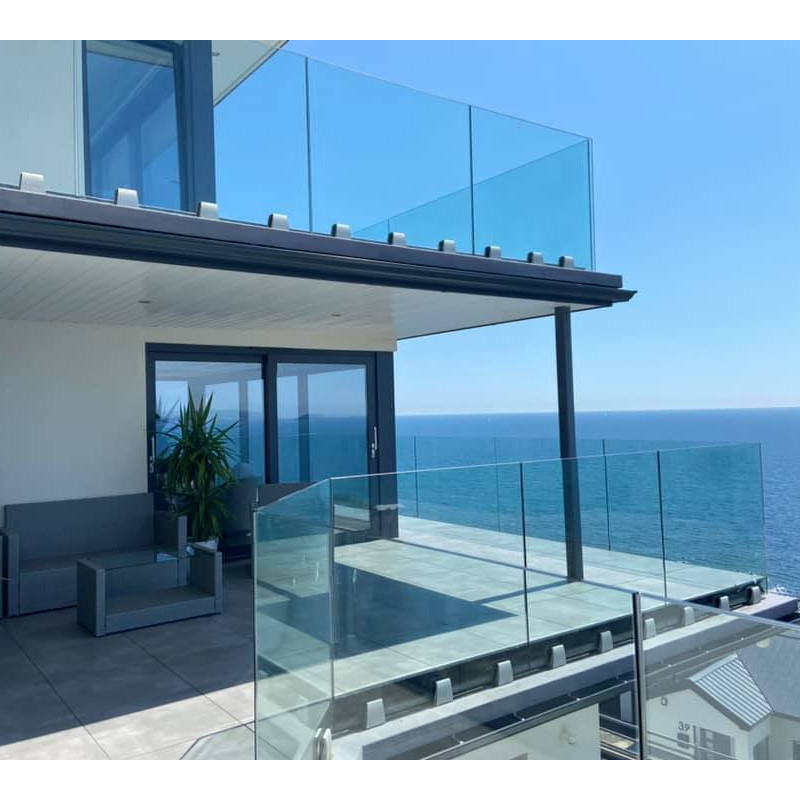

Additional Sales Information: SPIG-Lite is the easiest Pure Vista balustrade system to stock, dispatch and install due to its spigot-based configuration. The SPIG-Lite frameless glass balustrade system uses compact base-mounted adjustable spigots to support glass panels while
Product Description
PRODUCT COMPATIBILITY
Suitable for base fixing to concrete or steel, indoors or outdoors.
Can achieve up to 0.74kN according to the installation configuration, please refer to the SPIG-Lite product page for further details.
GLASS COMPATIBILITY
SPIG-Lite is compatible with the following glass thicknesses: 12mm/15mm/17.5mm/21.5mm. It is vital that you carefully check the building regulations for your project before choosing your glass thickness. Your glass thickness selection will determine the clamp kit, top bead and gasket configuration supplied.
As a guide, the following glass configurations and force loading can be achieved with SPIG-Lite:
12mm Toughened glass with a handrail 0.36kN (internal)
15mm Toughened glass with a handrail 0.74kN (external/drop over 600mm)
21.5mm Toughened Laminate (PVB) with no handrail 0.74kN (external/drop over 600mm)
PRODUCT VARIATIONS
Your glass thickness selection determines the clamp kit, top bead and gasket configurations. You can also purchase the clamp kit and balcony seal kit separately.
DIMENSIONS

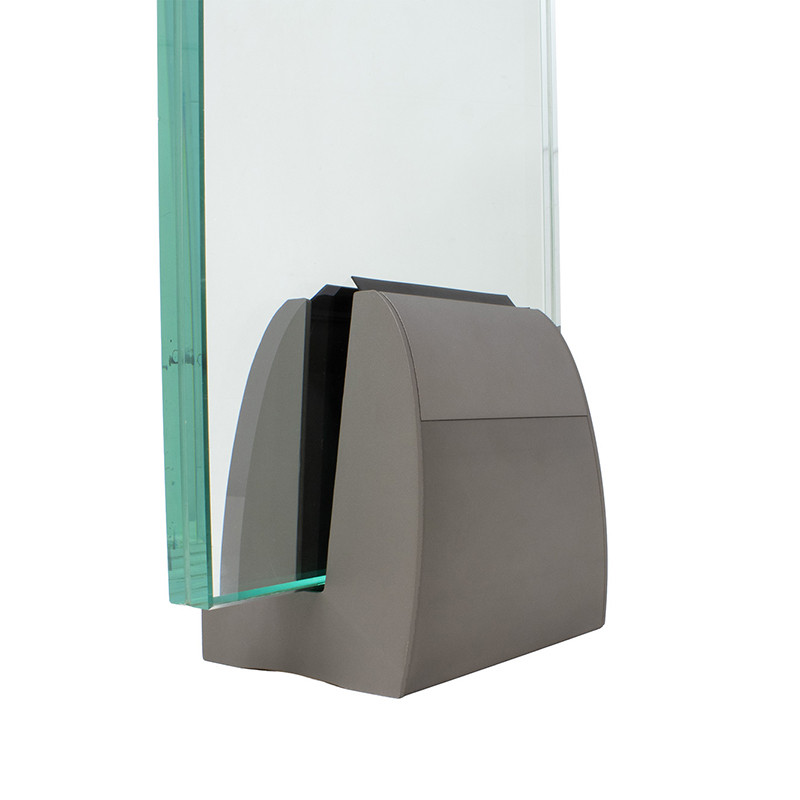

Spigot Dimensions:
L = 125.50mm
W = 97.47mm
H = 120.26mm
WHAT’S INCLUDED
2x SPIG-Lite Spigots
2x SPIG-Lite Clamp Kits, to suit your glass thickness selection
4x Lengths of Top Bead
4x Lengths of Co-Extruded Gasket, to suit your glass thickness selection
4x End Caps
This product is available in anodised Graphite Grey, Oil Slick, Black and Silver Brushed
