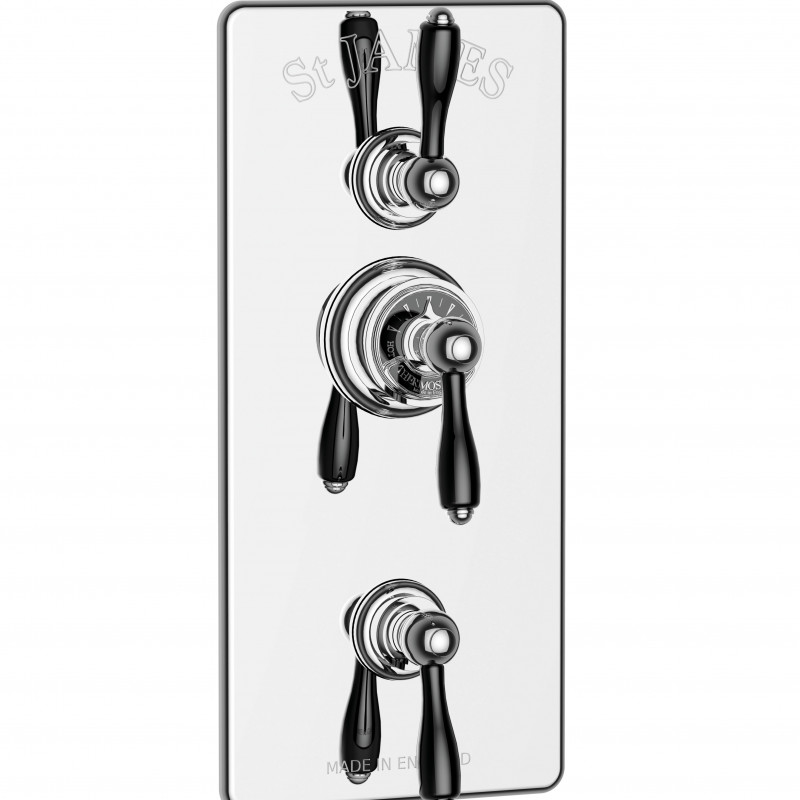

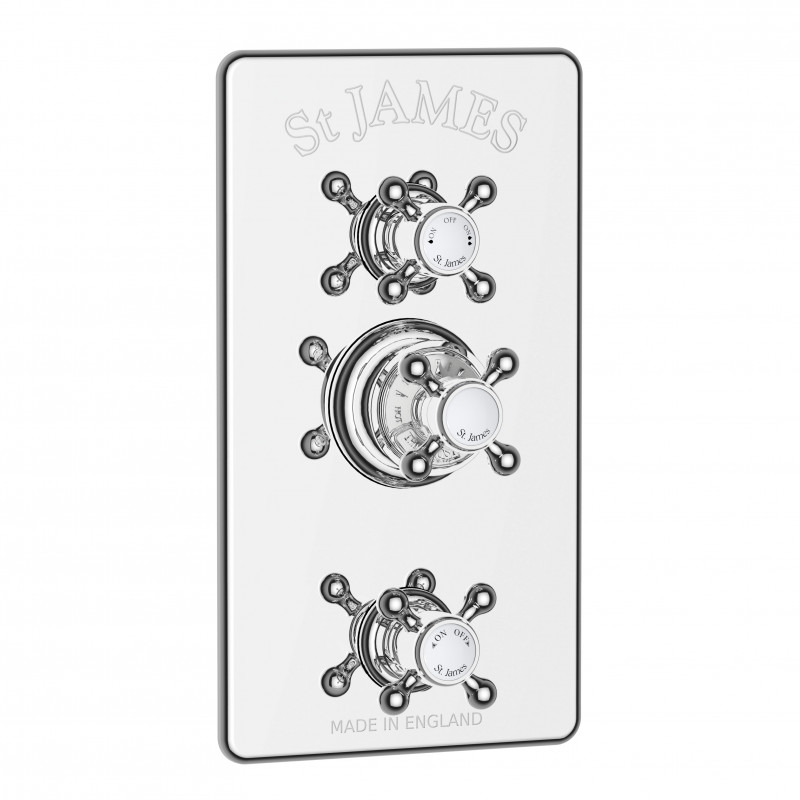

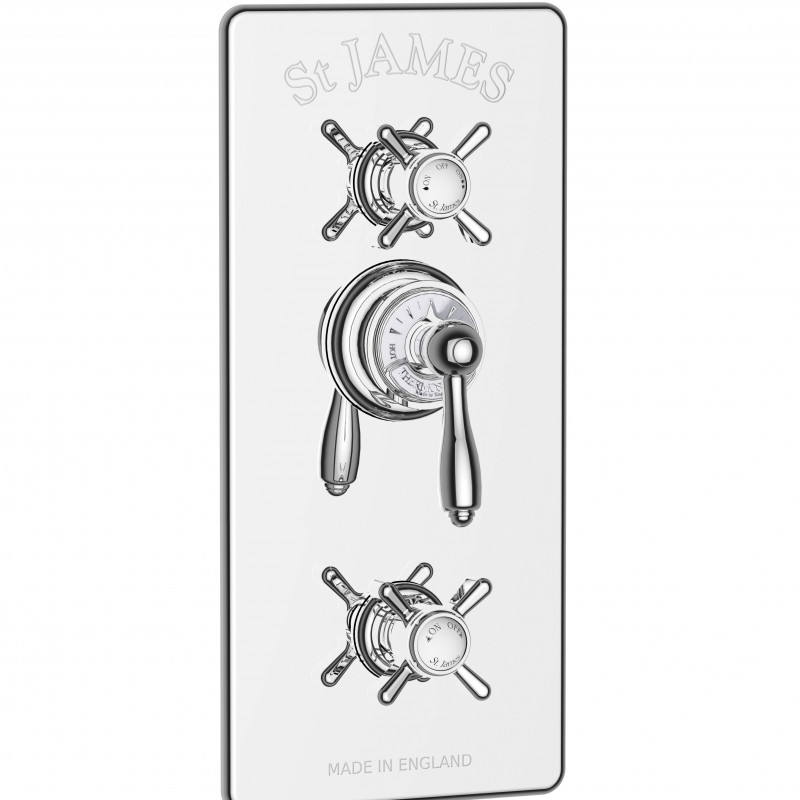

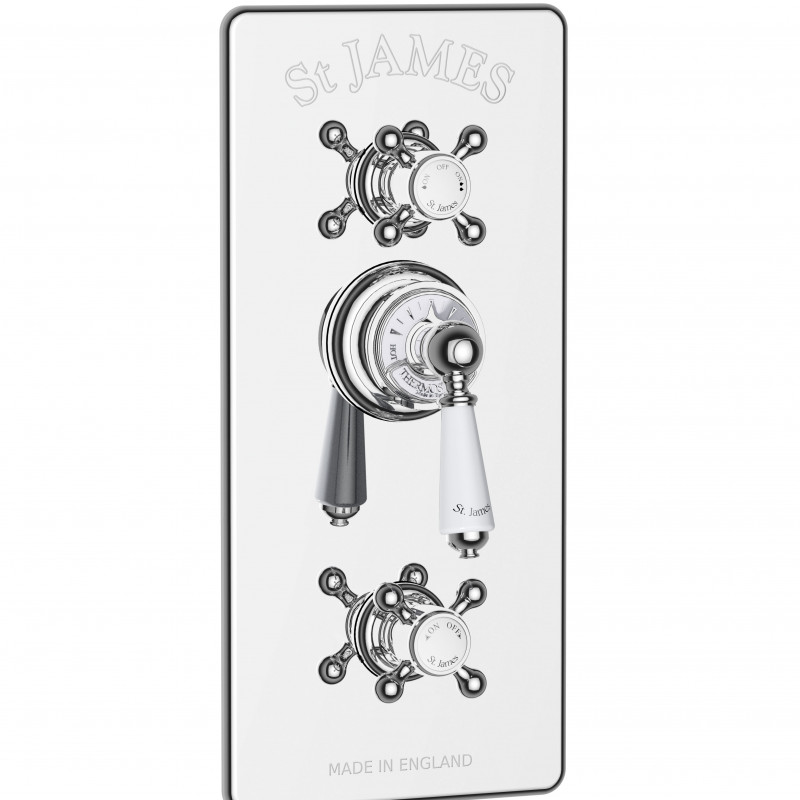

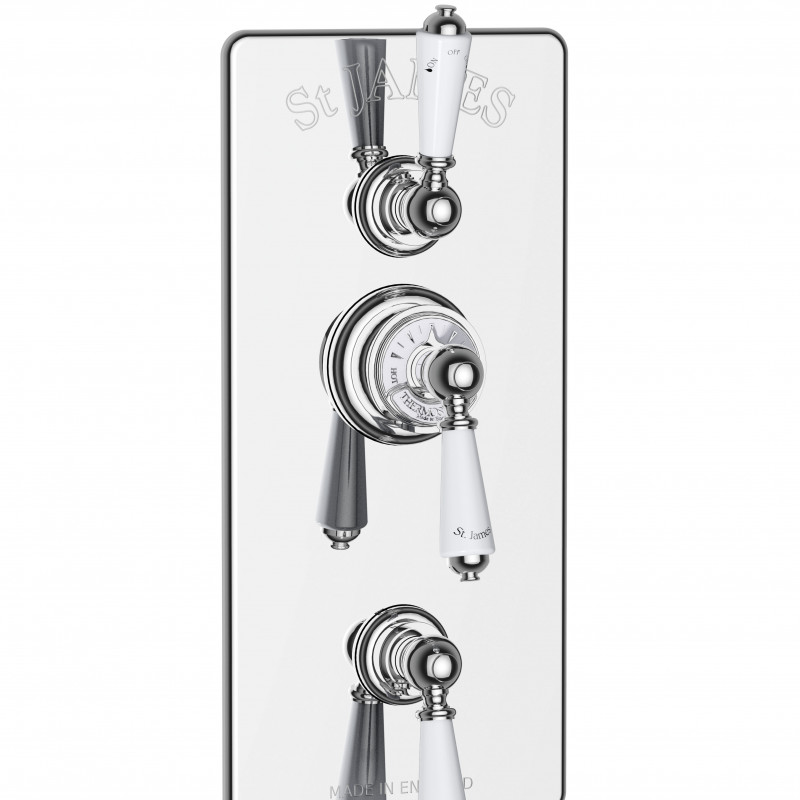

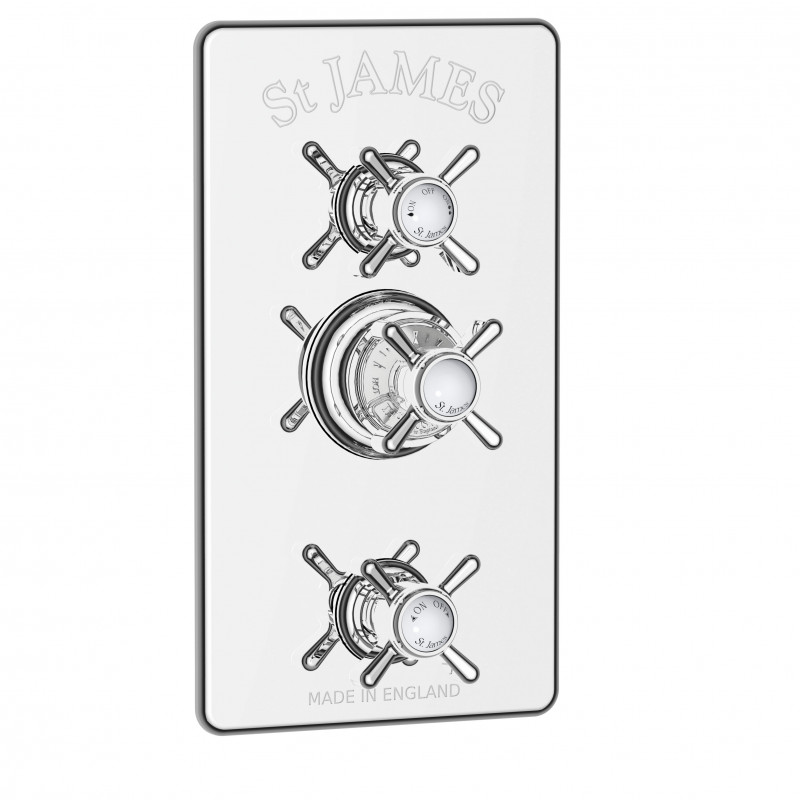

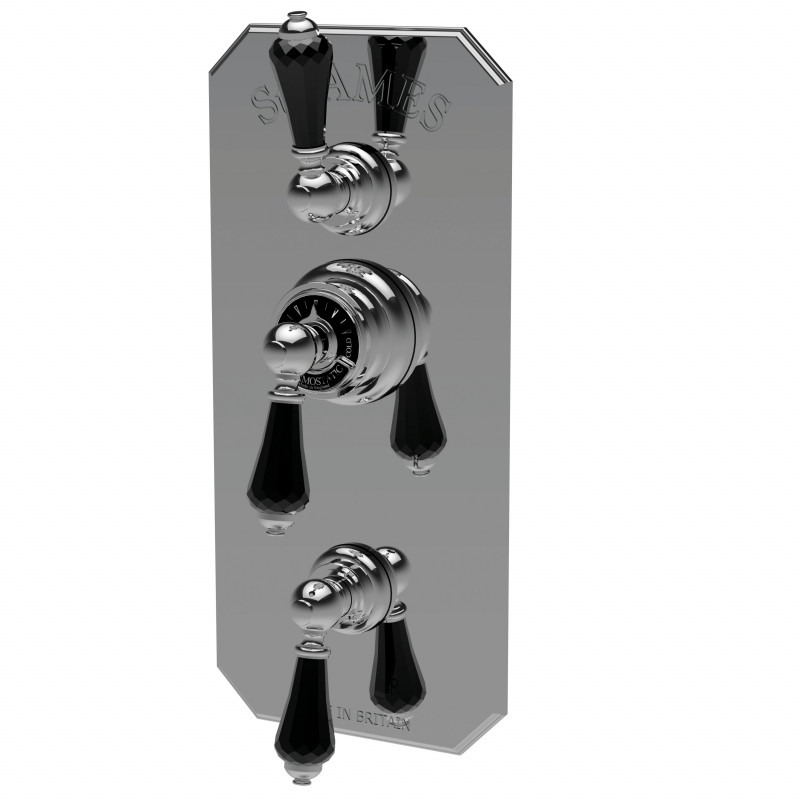

St James Traditional concealed thermostatic valve with 2 function diverter and flow valve

Product Description

Engraved concealing plate. Delivers to x3 outlets of water. Enamelled metal dials. Steps on the thermostaic shield. Temperature dial pointer. Temperature stop. Available in all finishes and selection of handle styles.

Technical & Dimensions

• Inlet: 15mm inlets Outlet: 3/4" top and bottom outlet, 1/2" side outlet
• Flow Rates: 1.0 bar: 12 l/min 3.0 bar: 22 l/min 5.0 bar 28 l/min
• Fitting Depth: min 64mm to max 70mm from finished tiled surface to rear of fixing when used with a Traditional valve.
• Extension kits available on request.

All of Marflows St James thermostatic shower valves are made in solid brass, then hand polished. Each shower valve is fitted with the very latest in thermostatic cartridge technology that ensures optimum temperature control and safety. The thermostatic showers are also dual control, so that water flow and water temperature can be independently operated. All valves and their components, including cartridges are tested by Marflow to ensure they meet our exacting standards. They provide easy maintenance access from the front once fitted and each carry a unique serial number with certification for product traceability.
