Tratos®MULTICORE – PVC SHEATH

Product Description

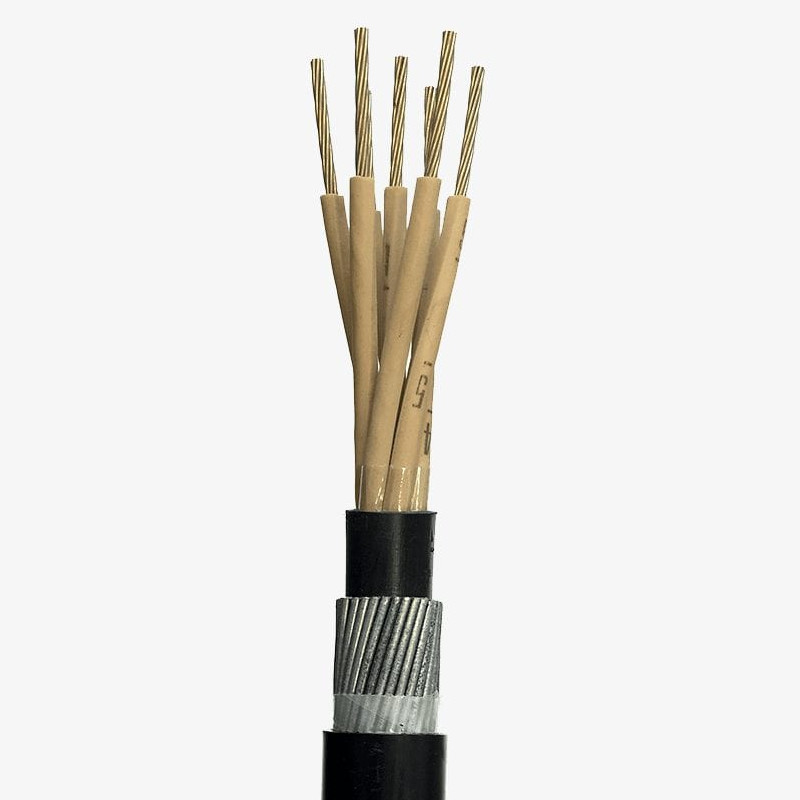

Tratos®MULTICORE – 0.6 1 KV – PVC SHEATH

Low voltage PVC insulated cables for use by distribution and generation utilities for power and control applications to BS 7870 8.1 and ENATS 09-6. Conductor – plain copper 2.5mm (class 2).

Conductor Insulation – PVC type TI 1 conforming to the requirements of BS EN 50363-3.1 (white with black numbers). Extruded Polymer bedding. Galvanised Single wire armour.

Oversheath – PVC Type TM 1 conforming to the requirements given in BS EN 50363-4-1
Colour – Black (other colours can be supplied on request). Voltage rating Uo/U 0.6/1kV.
The cable can be used directly in the ground, in ducts or in free air.
Standard configurations available, 2, 3, 4, 7, 12, 19, 27 and 37 core.

Standards
BS 7870-8.1 (implements HD 627 3A1) and ENA Technical Specification 09-6
BS 7870-1
BS EN 60228
BS EN 50363-3.1
BS EN 50363-4-1

Application
Low Voltage armoured cable for use by the Distribution Network Operators (DNOs) and Independent Distribution Network Operators (IDNOs) for use above ground or underground in wet conditions suitable for running alongside high voltage cables and also withstand high levels of the induced voltage. Note: These cables may be used indoors but they should not be used where fire propagation is a risk or where the emission of corrosive fumes and excessive smoke in the event of a fire is forbidden.

Construction
Conductor: stranded plain annealed copper (Class 2)
Insulation: PVC
Assembly of cores: cores laid up in concentric layers
Bedding: extruded polymer compound
Armouring: Single helical layer of galvanised steel wires
Oversheath: PVC Type TM1
Colour: Black (other colours can be supplied on request)
Marking: TRATOS ELECTRIC CABLE BS 7870-8.3 (N x mm2) (Year of Manufacture)
Low Voltage armoured cable for use by the Distribution Network Operators (DNOs) and Independent Distribution Network Operators (IDOs) for use above ground or underground in wet conditions suitable for running alongside of high voltage cables and also withstand high levels of the induced voltage. Note: These cables may be used indoors but they should not be used where fire propagation is a risk or where the emission of corrosive fumes and excessive smoke in the event of a fire is forbidden.

Construction
Conductor: stranded plain annealed copper (Class 2)
Insulation: PVC
Assembly of cores: cores laid up in concentric layers
Bedding: extruded polymer compound
Armouring: Single helical layer of galvanised steel wires
Oversheath: PVC Type TM1
Colour: Black (other colours can be supplied on request)
Marking: TRATOS ELECTRIC CABLE BS 7870-8.3 (N x mm2) (Year of Manufacture)
