Vapour Pressure Analyser (1354)

Product Description

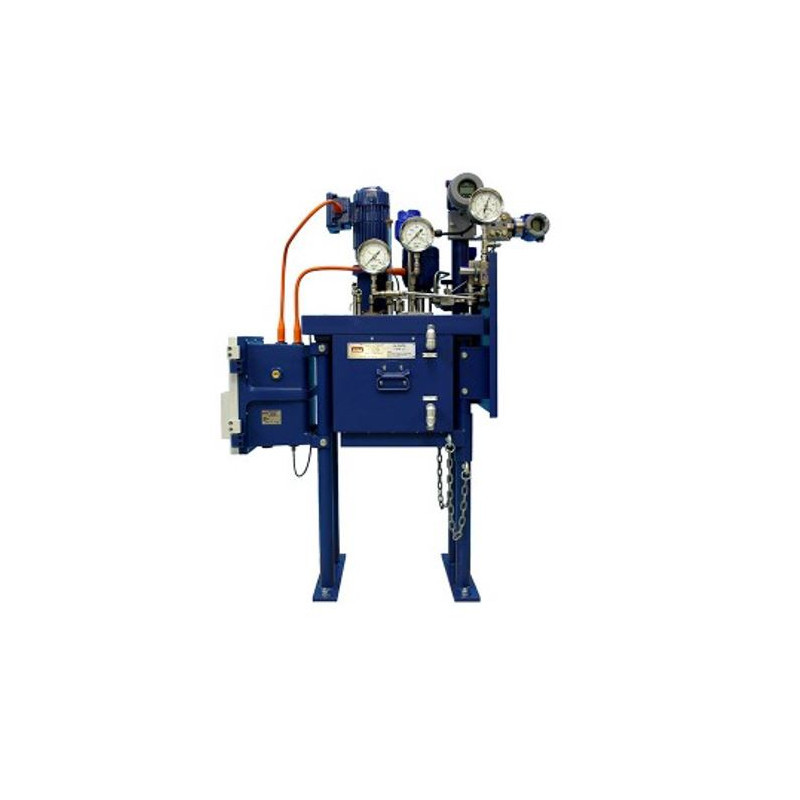

Model 1354 Vapour Pressure Analyser

- ATEX Certified

- Fast, continuous vapour pressure analysis

- Accurate, reliable absolute pressure measurement

- ASTM D323 or D1267

- Communications – HART, Fieldbus, Modbus

- Repeatability of 0.1 psi (0.007 bar)

- Ingress protections IP65

- Developed from the original Hallikainen VPA

The ATAC Model 1354 is a completely automatic Vapour Pressure Analyser for measuring the Reid Vapour Pressure (RVP - the vapour pressure exerted by a liquid at 37.8°C/100°F) for a wide range of refinery streams. Accurate measurements that correlate with ASTM D323 or D1267 can be made on samples having viscosities up to 80cP at the measurement temperature. Designed to provide the True Vapour Pressure (TVP) at the nozzle temperature, based upon the Kinetic Vapour Pressure (KVP) produced in the system.

Typical Applications:

- LPG

- Gasoline

- Naphthas/kerosenes

- Crude oil

- Fuel oil
