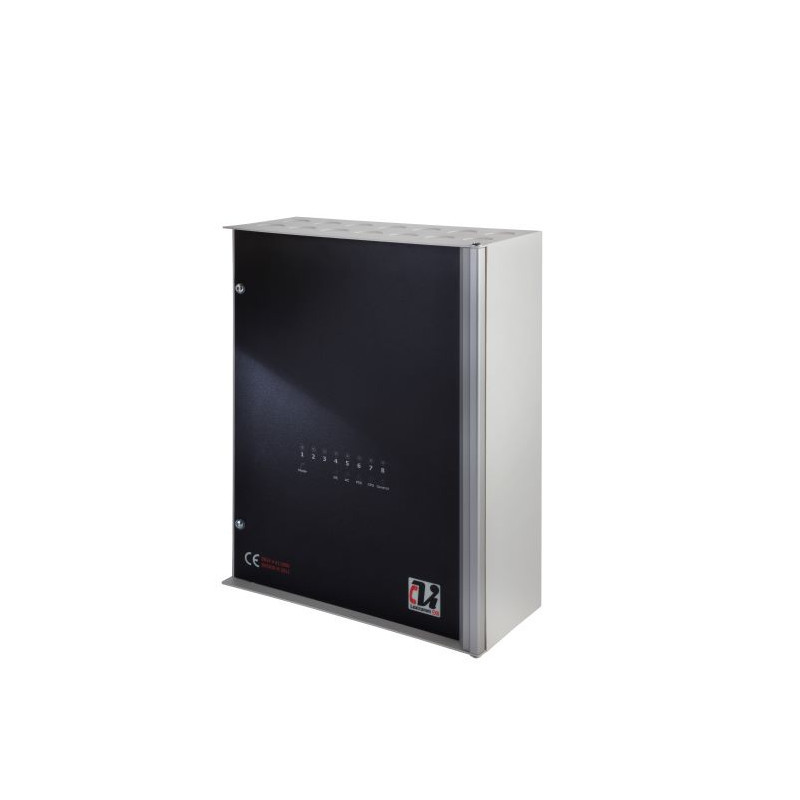

ViLX-EX8 - Lexicomm Network 8 Line System Expander Panel
Manufactured by Vox Ignis Limited
Product Buying Options
Minimum Order Quantity: 1
Additional Sales Information: Refer to website
Product Description
The Lexicomm ViLX-EX8 system expander panel is utilised to expand the Lexicomm Network System, it can accept up to eight lines of outstation, (Type A fixed phones, Type B refuge hands free points, emergency assist alarm point or jack points in Far East and Middle East applications) as required.
Lines auto identify by flashing Red for EVCS calls, Blue for assist calls or flashing Green for Connected calls as detailed in
BS 5839-9:2021.
The ViLX-EX8 has inbuilt networking allowing it to form one of the 64 panels on a Lexicomm network installation allowing a total of 512 outstations to be accommodated. This would be a mixture of touch screen master stations and system expander panels.
The display on the front of the ViLX-EX8 gives the current call or fault status of each line of the local panel aiding fault finding.
Typically it is mounted in electrical risers adjacent to stair cores where its compact size assists with riser layouts.
