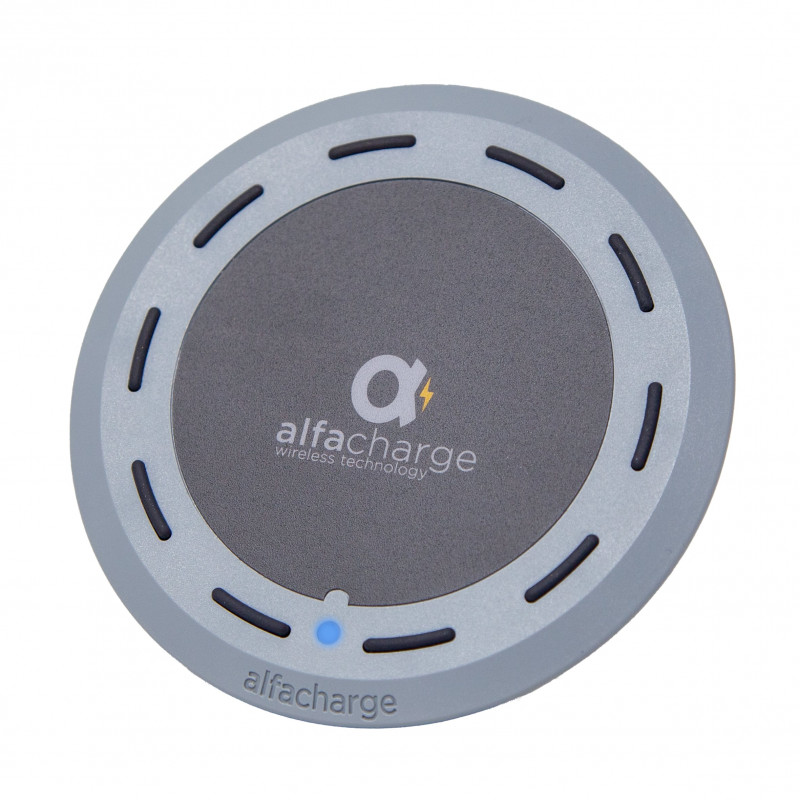

AL3-V Table-Top Wireless Charger

Product Description

The AL3 wireless charger is designed for installation into table tops or media benches for public transport applications to allow passengers the ability to charge their mobile devices on the move which provides an unobtrusive and functional enhancement of the user experience.

An 80.0mm hole is required in the table and the unit is then installed through the table and secured underneath providing an
unobtrusive and functional enhancement of the passenger experience.

These units make a complementary addition to the AL1 integrated charger modules and can be installed at the vehicle build stage or as part of a retrofit activity as required.

The Alfacharge range has been designed to meet the rigorous standards required for on board commercial vehicle applications including EN50498, ISO7637-2 and is both CE and E marked (Reg10).

The casings are made from V0 rated (self extinguishing) high impact polycarbonate and the PCB is populated by computer controlled SMT for maximum accuracy and durability.

All electronics protected to IP65. Convenient wide input range of 9-32Vdc.
