Alf 150 Duct Leakage Tester

Product Description

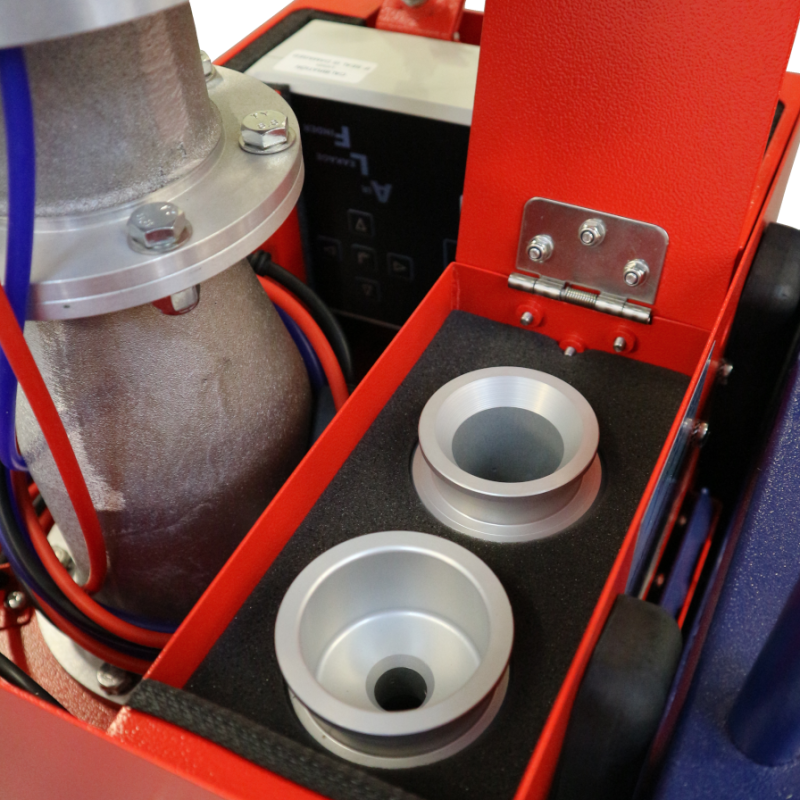

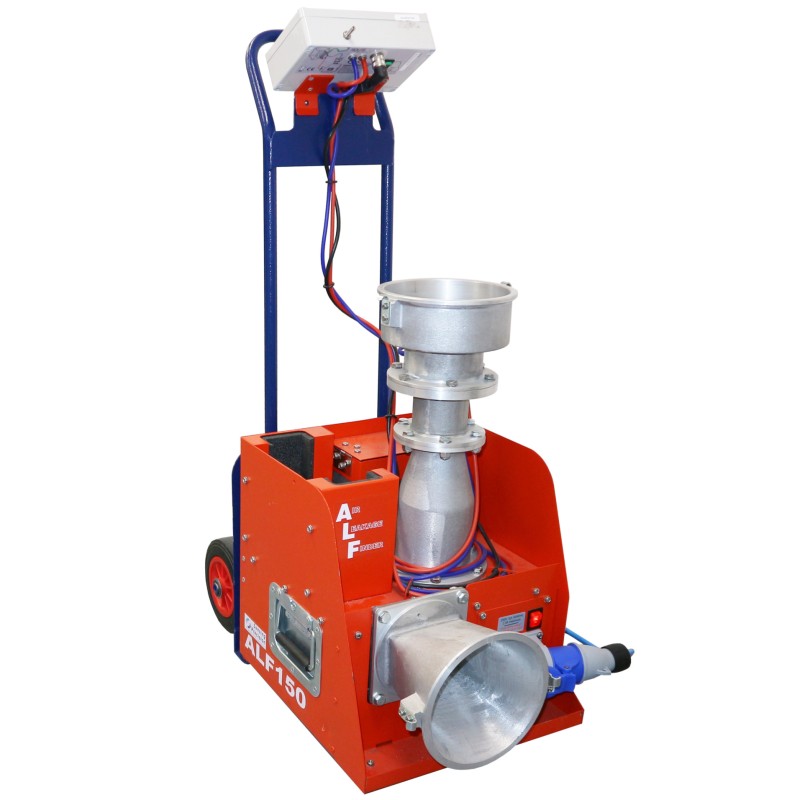

The ALF 150 Duct Leakage Tester is a low cost, compact, light-weight and totally self-contained unit. Commissioning engineers are provided with a high-quality duct leakage tester with everything needed to test duct work systems for leakage under both Positive and Negative pressure. It is capable of developing static pressures from -2500Pa to +2500Pa, and flow rates of 1 to 150l/s. This provides approximately 140l/s of air flow for Class A leakage tests and up to 70l/s for Class C/D leakage tests. The ALF 150 uses conical inlet nozzles, which means the unit is a primary device.

A single all in one instrument means that this duct leakage tester is not only simple to use but also removes the complexity that might be associated with operating a duct work leakage tester and other forms of testing equipment. The ALF 150 duct leakage tester is easily transportable and can be moved to site in the back of most small hatchbacks.

Applications

• Duct Leakage Testing
• Chilled Beam Testing
• AHU Testing
• End Of Line Testing
