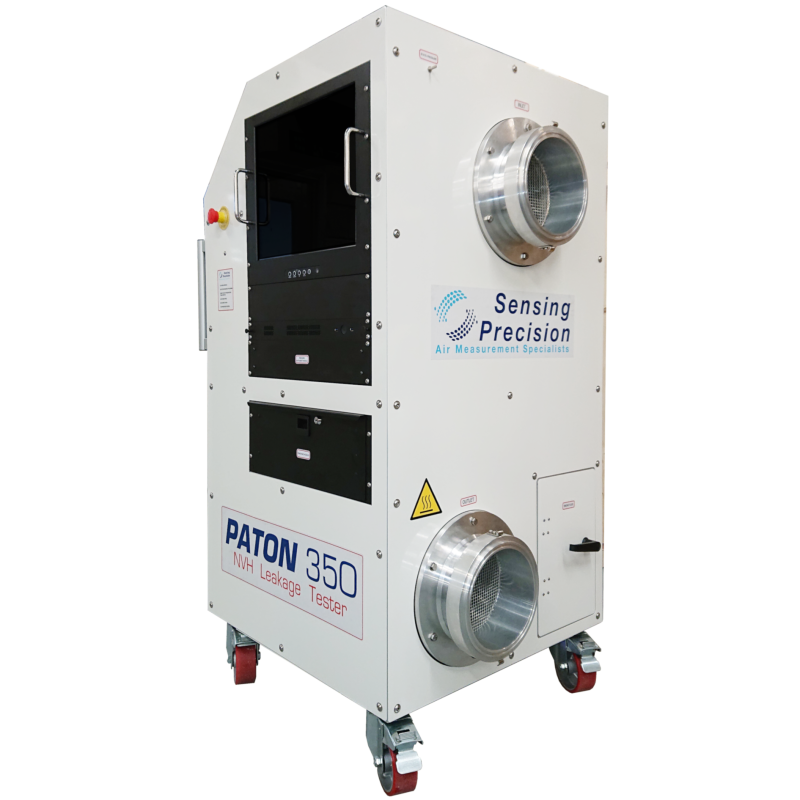

PATON 350 Leakage Tester
Manufactured by Sensing Precision Limited
Product Buying Options
Additional Sales Information: sales@sensing-precision.com
Product Description
The PATON 350 Leakage Tester is designed to allow an engineer to test the leakage rate of a vehicles cabin. The PATON 350 Leakage Tester works by pressurizing and depressurizing the vehicle under test to a specified pressure, and measuring the air volume flow generated to produce a leakage rate, or equivalent body hole size.
The PATON 350 is the mid range leakage tester that has been designed to meet 90% of NVH leakage testing requirements. It is equipped with a fan that is capable of achieving 350 L/s of airflow, and static pressures in excess of ±2500 Pa. The PATON 350 is also a primary measuring device using a set of precision machined conical inlet nozzles to provide impressive accuracy across the entire flow range down to 1 L/s. The PATON 350 is available with Windows control, an air heater and a smoke machine as standard. This provides the user with the ability to not only quantify the cabins ability to seal but also identify areas requiring further improvement. optional attenuators can also be supplied to provide a comfortable and safe working environment without the need for hearing protection, even at full flow.
Additional Information
The PATON 350 is the mid-range NVH leakage tester designed to meet 90% of NVH leakage testing requirements. It is equipped with a fan that is capable of achieving 350 L/s of air flow, and static pressures of ± 2500 Pa.
The Paton 350 includes a Touchscreen Windows PC control system, an air heater and a smoke machine.
PATON 350 Key Features
- Touch Screen Windows PC control system
- Temperature, Barometer and Humidity sensors
- PID Closed Loop Control with the ability to create individual test profiles
- Data saving direct to computer hard drive
- Automatic variable sensor damping
- Air Heater
- Smoke Machine
General uncertainty of Volume flow measurement is ±2% of reading
