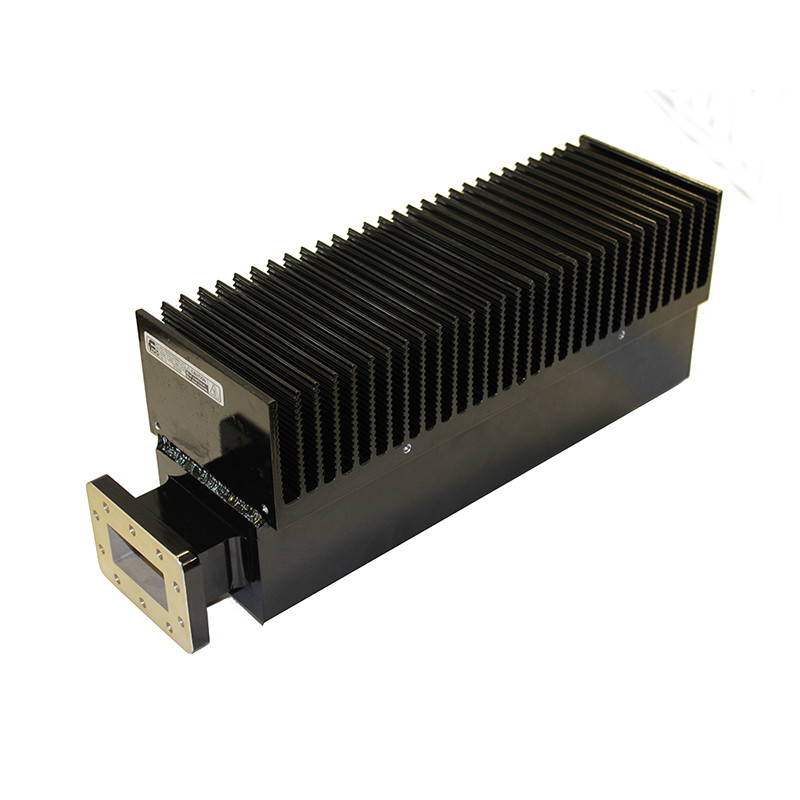

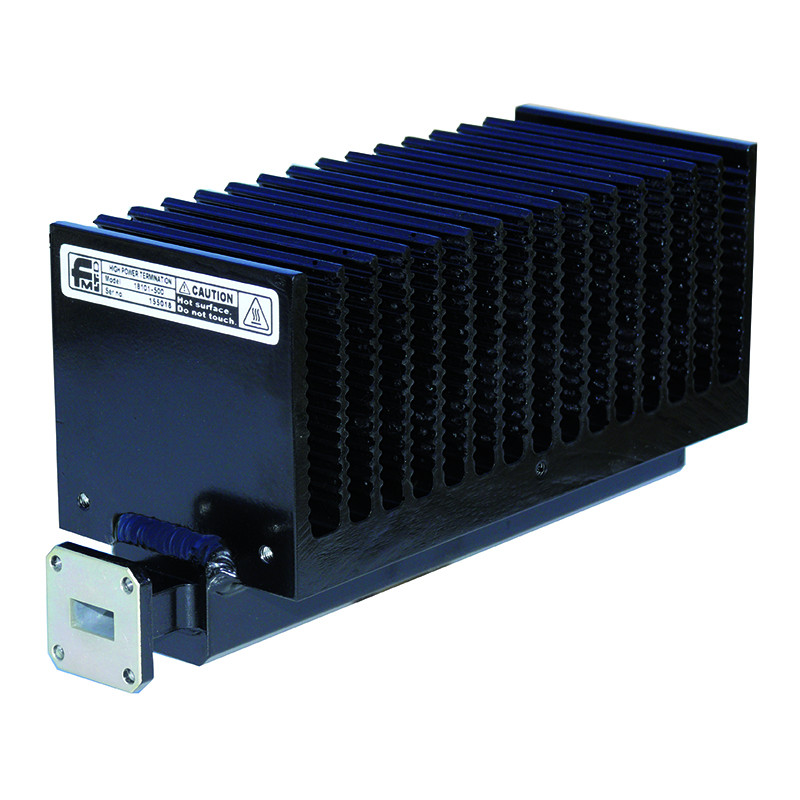

High Power Termination Series 101
Manufactured by Flann Microwave Ltd
Product Buying Options
Minimum Order Quantity: N/A
Additional Sales Information: To enquire about our range of High Power Terminations, please contact the sales team on +44(0)1208 77777 or at sales@flann.com
Product Description
Features
- 0.32 GHz to 330 GHz
- Industry Leading Performance
- Low VSWR over full waveguide range
- Sealed, 15 psi(g) Standard
- Models up to 10 kW Applications
- System Dummy Loads
- HPA Testing
General Specifications
- Maximum Power is Mean/CW Non shedding ceramic elements
- Non shedding ceramic elements
- Low out-gassing (load element total mass loss<1.0%, collected volatile condensable materials<0.10%)
Natural Convection
Terminations incorporating heat sinks orientation sensitive due to the direction of air flow over the heat sink. Flann model number includes a 'V' or 'H' code to differentiate which is the recommended orientation. It should be noted that the waveguide broad wall should be vertical in the 'H' configuration.
All terminations have been designed to give high durability and reliability using ceramic elements encapsulated in aluminium body.
