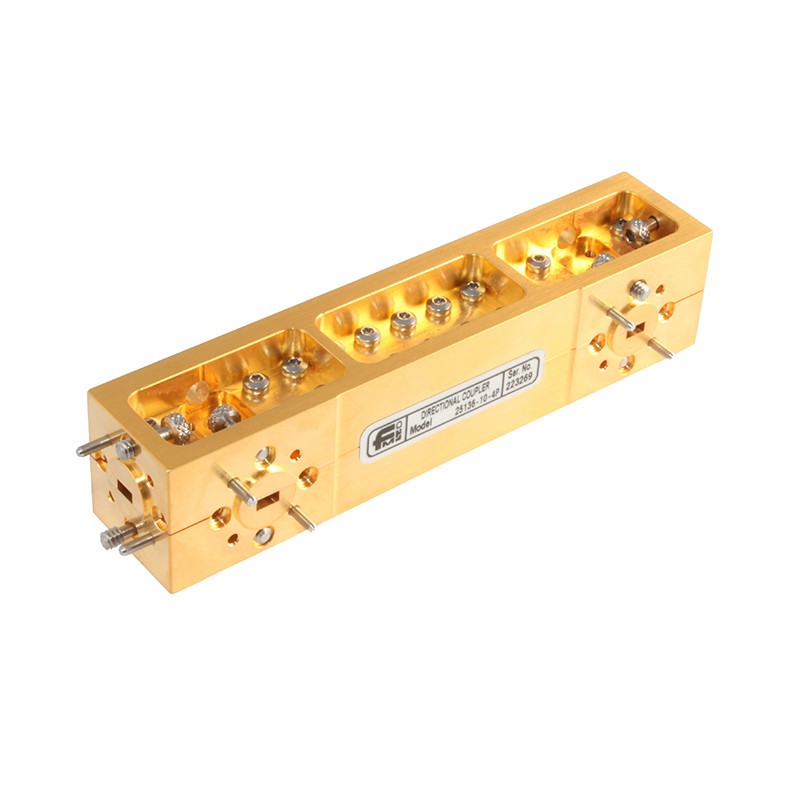

Multihole Directional Couplers Series 136/137
Manufactured by Flann Microwave Ltd
Product Buying Options
Minimum Order Quantity: N/A
Additional Sales Information: To enquire about our range of Multihole Directional Couplers Series, please contact the sales team on +44(0)1208 77777 or at sales@flann.com
Product Description
Features
- High Directivity - up to 40 dB (Series 136)
- Very High Directivity - up to 44 dB (Series 137)
- Models from 33.0 GHz to 500 GHz
Applications
- Power Sensing
- Network Analyser
- Reflectometer Systems
Series 136, high directivity and Series 137, very high directivity, are offered in all waveguide sizes within the frequency range 33.0 GHz to 500 GHz. The standard coupling values are 3, 10and 20 dB, other values, for example 6, 30, 40, 50 and 60 dB, can be supplied.
IMPORTANT! All directivities quoted include the measuring port and flange performance when connected to an ideal termination.
