Full-Band Orthomode Transducer Series 785
Manufactured by Flann Microwave Ltd
Product Buying Options
Minimum Order Quantity: N/A
Additional Sales Information: To enquire about our range of Full-Band Orthomode Transducers, please contact the sales team on +44(0)1208 77777 or at sales@flann.com
Product Description
Features
- Full Waveguide band
- Models available up to 330GHz
- High polarisation purity
- High isolation
- Circular common port (Square port options are available)
Applications
- For use with dual-polarised antennas
- For polarisation duplexing
- CATR-Compact Antenna Test Range
- 5G and 6G Test Systems

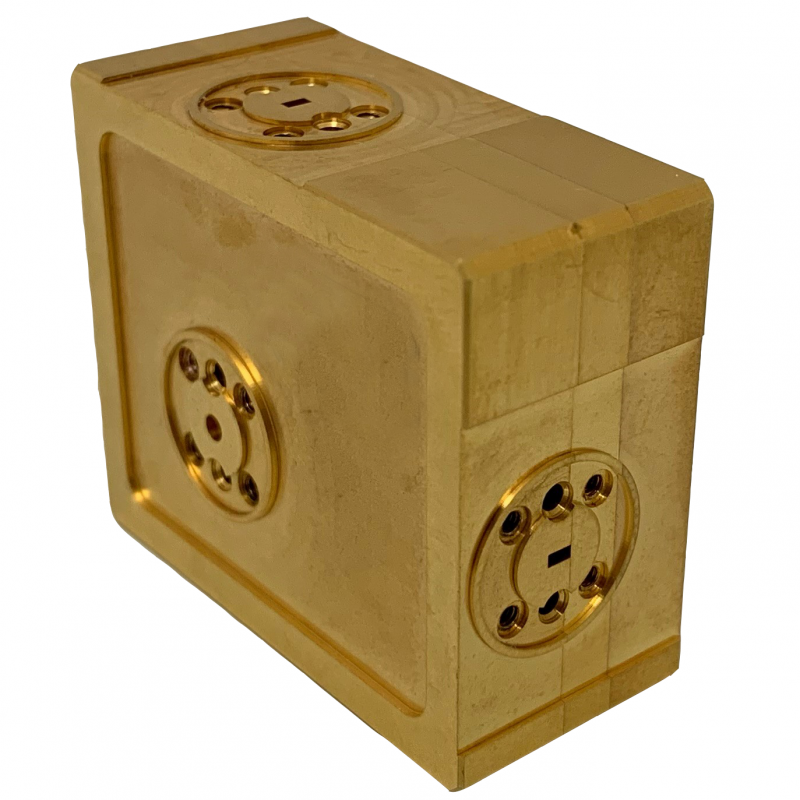

Flann's Full-band OMTs offer the high performance demanded by today's communication systems, in which good polarisation purity and isolation are paramount. These instruments have two rectangular ports on adjacent faces, and a common circular port.
The OMT is a bi-directional device which allows signals to be sent from, or received at, the rectangular ports via an antenna supporting dual polarisation (at the common port). It can also be used to separate the vertical and horizontal components of a circularly polarised or elliptically-polarised wave, or to combine two signals to transmit a circularly or elliptically-polarised wave from a suitable horn antenna.
