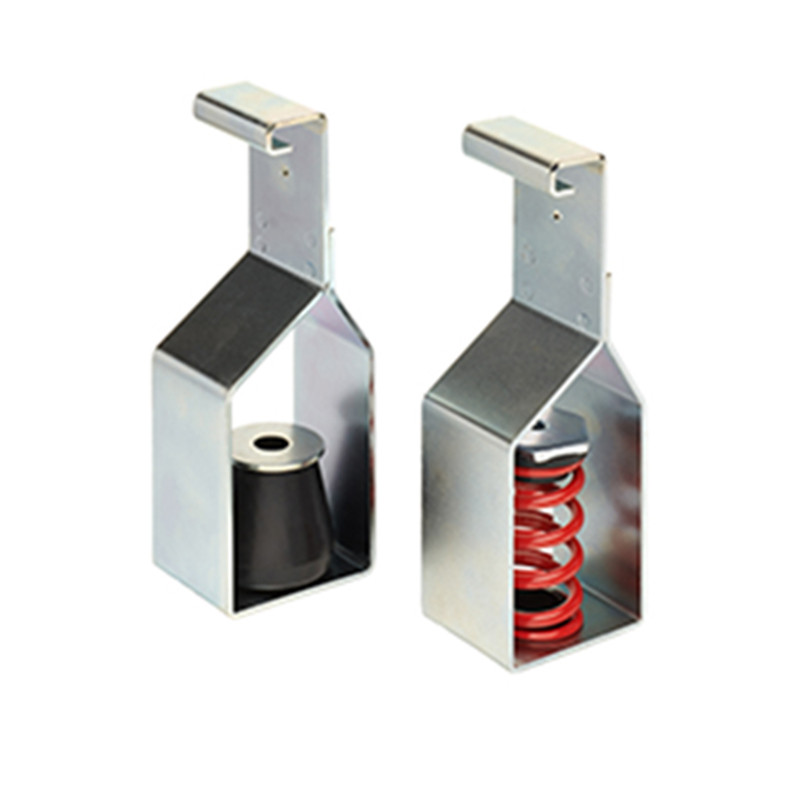

Spring and Rubber Hangers Type ASH and ARH

Product Description

A comprehensive range of rubber acoustic ceiling hangers, offering
the designer a choice between low frequency vibration isolation or
optimum performance at higher audible frequencies, if noise control is
of paramount importance.

Design Features

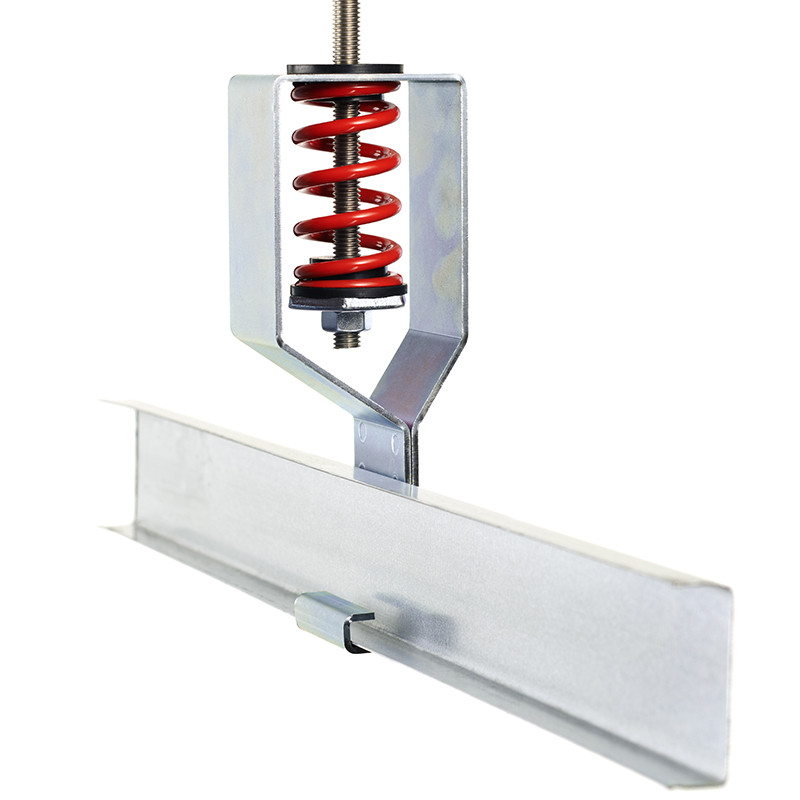

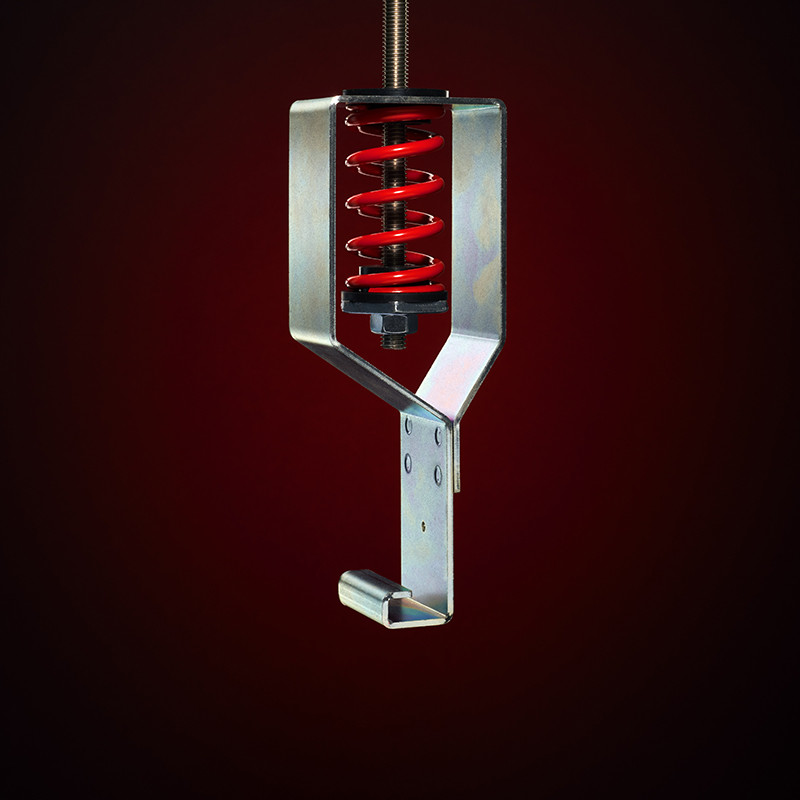

• Colour coded helical steel springs to BS1726
Class B with nominal deflections up to
20 mm, laterally stable with 50% overload
capacity.
• Rubber inserts for high frequency
attenuation on Type ASH also prevent drop
rod contacting hanger frame.
• Integral failsafe steel overload washers.
• All steel components are zinc plated.
• Capable of 15° angular misalignment.

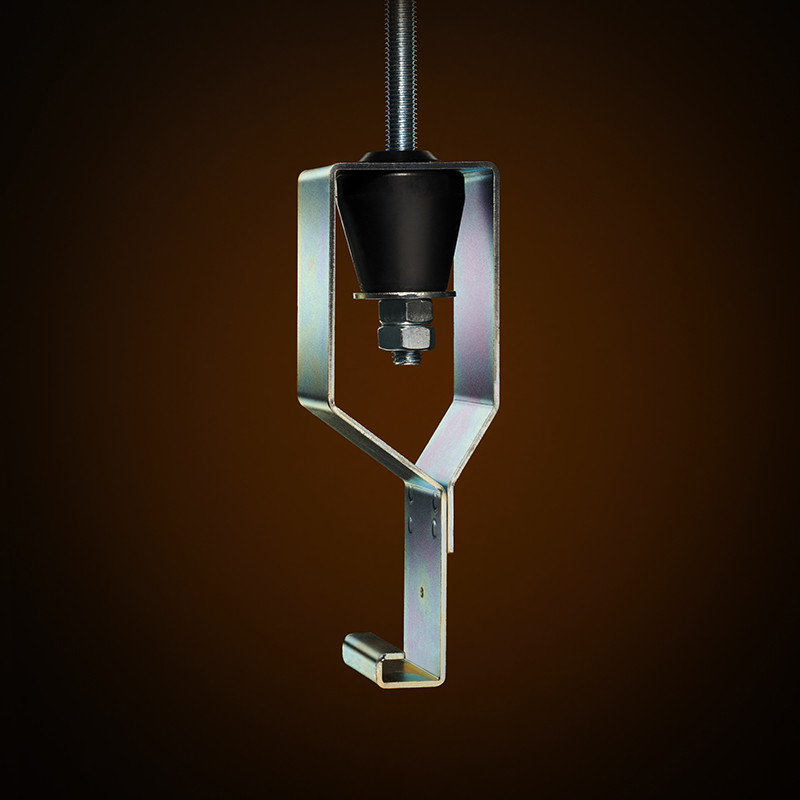

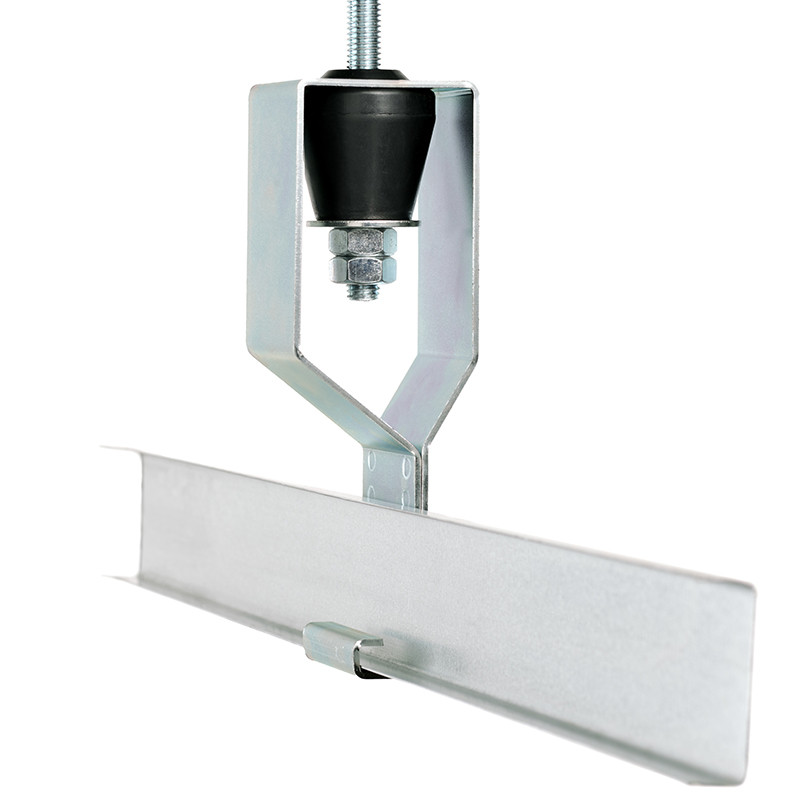

• Rubber hangers have natural rubber
elements with deflections up to 6 mm.

Typical Applications
• Acoustic Ceilings.
