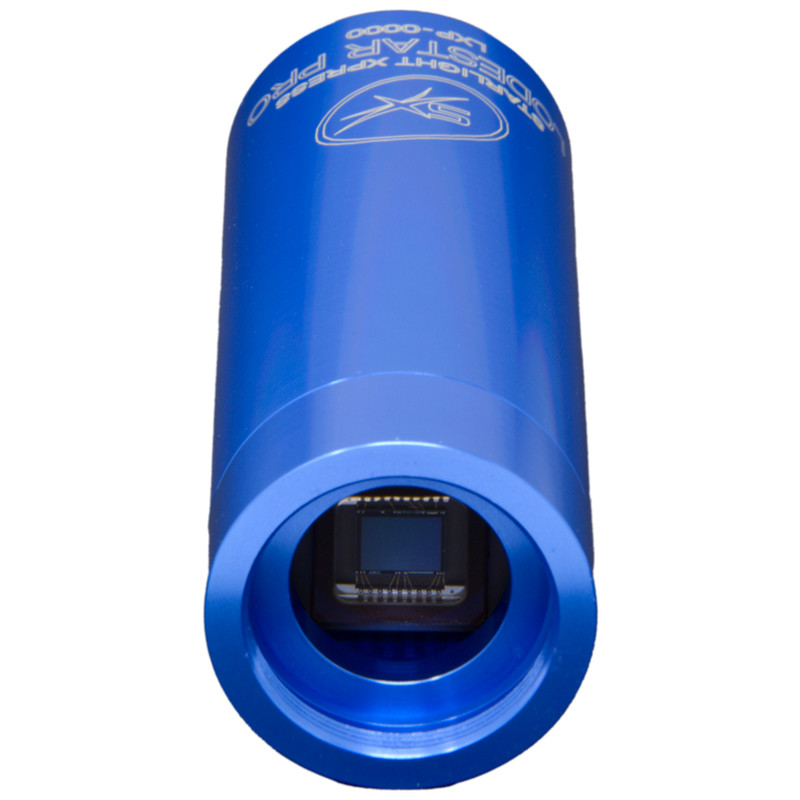

Lodestar PRO
Manufactured by Starlight Xpress Ltd
Product Buying Options
Product Description
The Lodestar PRO cameras is a small uncooled CCD Camera, which utilises the Sony 'Exview 2' ICX829 chip.
The camera is primarily used as a guide camera for telescopes, but it can also be used for many life science applications.
Specifications:
- CCD – Sony ICX829AL ExView2 monochrome CCD
- Pixel count – 752(H) x 580(V)
- Pixel size – 8.6 x 8.3uM
- Optical size – 6.47 x 4.81 mm
- Read noise – Typically 5.5 electrons
- Gain – 0.4 e/ADU
- Barrel size – 31.75mm dia. x 85mm long (1.25 inch eyepiece push fit size)
- Barrel thread – 25.4mm x 0.75mm ‘CS’ mount lens thread
- Computer connection – ‘Mini B’ USB socket for USB2.0
- Output connection – Standard RJ12 autoguider socket
- Output type – Opto-isolated 4 lines (N,S,E & W) pull down with common return line
- Download rate – Approx. 10 frames per second in binned 2×2 mode (recommended)
