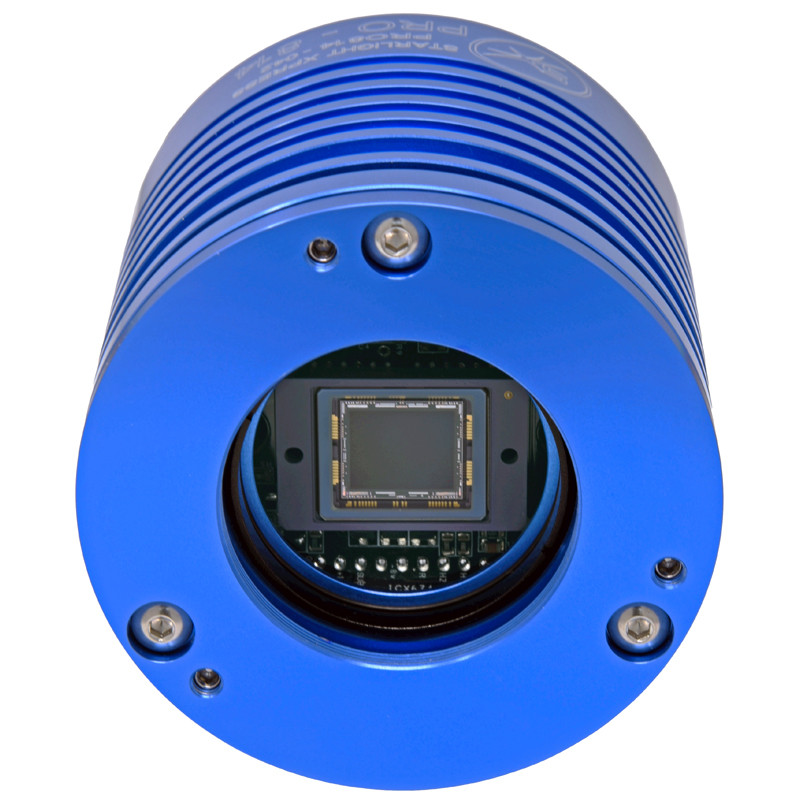

TRIUS PRO 814 CCD Camera

Product Description

The TRIUS range of cameras was introduced in 2014. These were the first cameras on the market to incorporate a powered USB 2.0 hub in the rear of the camera to enable the user to connect their USB filter wheel and guide camera directly to the camera rather than multiple cables back to the computer - simplicity and convenience.

The new TRIUS PRO Blue series follows on from that success. We have redesigned the electronics to give even lower read-noise figures and faster downloads. Dark frames really are a thing of the past, making calibration frames optional rather than compulsory, giving you more time to capture data and process your images.

• CCD type: ICX814AL (mono) Exview CCD with ultra low dark current and vertical anti-blooming.
• CCD Full resolution pixel data: Pixel size: 3.69uM x 3.69uM, Image format: 3388 x 2712 pixels.
• CCD Image area: 12.49mm (Horizontal) x 9.99mm (Vertical).
• CCD quality: Grade 1 or better – No bad columns, no dead pixels, no more than 50 ‘hot’ pixels (saturated in <10 seconds).
• Spectral Response: QE max at 580nM (~77%), 50% roll-off at 360nM and 770nM.
• Readout Noise: Typically only 3 electrons RMS.
• Well depth – 15,000e.
• System gain – 0.25e / ADU.
• Image download time – 5 seconds in 1 x 1 binning mode.
• Anti-blooming: Overload margin greater than 800x.
• Dark current: Less than 0.002 electrons/second @ – 10C CCD temperature.
• Data format: 16 bits.
• System gain:  0.25 electrons per ADU.
• Computer Interface: Built-in USB 2.0 compatible interface.
• Power requirements: 115VAC / 240VAC @ 12VA, or 12VDC @ 900mA max.
• Cooling system: Regulated set-point cooling supply with thermoelectric cooler to give a minimum CCD temperature of approximately -40C below ambient.
• Size: 75 x 70mm black anodised aluminium barrel with 42mm ‘T2’ thread at the CCD window end & input/output plugs at rear. CCD alignment screws are provided for setting the chip parallel to the focal plane.
• Weight: approx. 450g.
