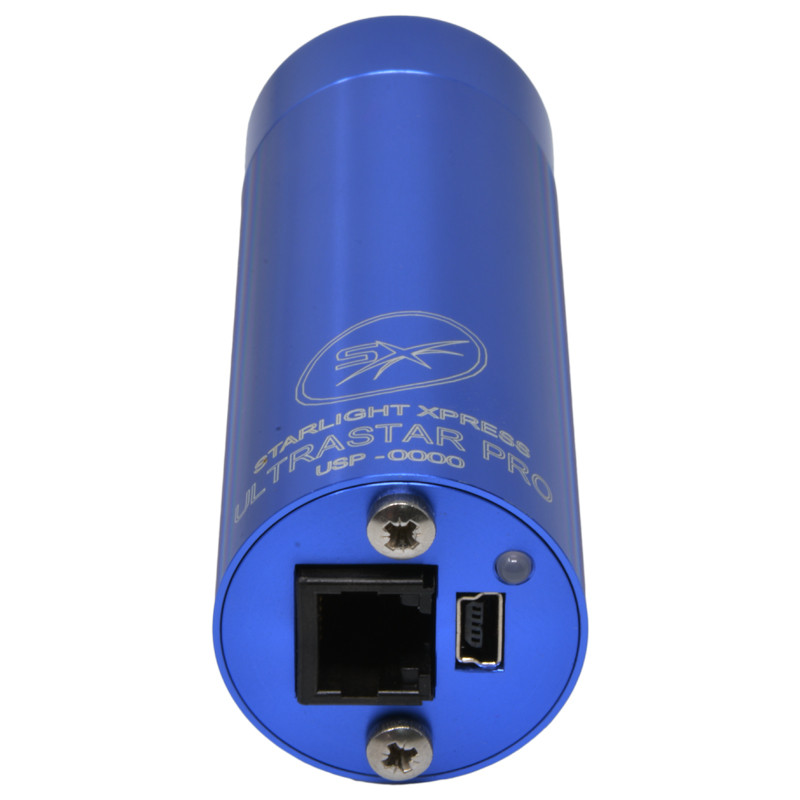

Ultrastar PRO
Manufactured by Starlight Xpress Ltd
Product Buying Options
Product Description
The Ultrastar PRO cameras are advanced versions of our ‘Superstar’ guide camera and have a similar resolution of 1392 x 1040 pixels. However, the CCD chip has 70% more area and the QE is considerably greater, at around 75% peak. These characteristics give the Ultrastar an excellent performance as both a guide camera and an imaging camera, which is especially well suited to ‘Live Viewing’ mode.
Specifications:
- CCD: Sony ICX825AL ExView2 monochrome CCD
- Pixel count: 1392(H) x 1040(V)
- Pixel size: 6.45 x 6.45uM
- Optical size: 8.98 x 6.71 mm
- Read noise: Typically 5.0 electrons
- QE: Peak QE 75% (yellow light)
- Gain: 0.3 e/ADU
- Barrel size: 31.75mm dia. x 85mm long (1.25 inch eyepiece push fit size)
- Barrel thread: 25.4mm x 0.75mm ‘CS’ mount lens thread
- Input connection: ‘Mini B’ USB socket for USB2.0
- Output connection: Standard RJ12 autoguider socket
- Output type: Opto-isolated 4 lines (N,S,E & W) pull down with common return line
- Download rate: Approx. 2 frames per second in binned 1×1 mode
