TRIUS PRO 694 CCD Camera

Product Description

 The TRIUS range of cameras was introduced in 2014. These were the first cameras on the market to incorporate a powered USB 2.0 hub in the rear of the camera to enable the user to connect their USB filter wheel and guide camera directly to the camera rather than multiple cables back to the computer - simplicity and convenience.

The new TRIUS PRO Blue series follows on from that success. We have redesigned the electronics to give even lower read-noise figures and faster downloads.  Dark frames really are a thing of the past, making calibration frames optional rather than compulsory, giving you more time to capture data and process your images.

Trius PRO-694 major features:

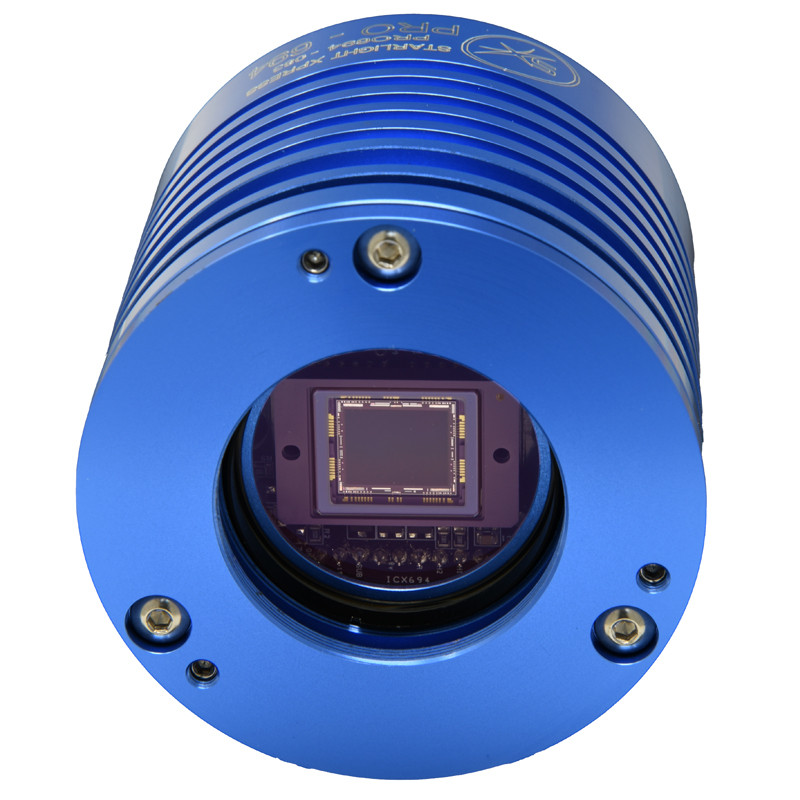

• Medium format, high resolution ‘Exview’ CCD chip, with 6,050,000 x 4.54uM square pixels in a 15.98mm diagonal array.
• Exceptionally low dark signal – No dark frames necessary for most deep sky objects.
• Excellent QE of 77% peak in yellow light, 65% at Hydrogen alpha (656 nm).
• Three port powered USB hub built-in. Can drive a Lodestar PRO or Ultrastar PRO + SX filter wheel.
• High performance two stage cooling for better than -40C delta T
• Dry Argon CCD chamber fill for improved cooling performance.
• Exceptionally effective anti-blooming with minimal effect on linearity and no lost active area.
• Back focal length 16mm +/-1mm.
