100 litre Prestige Water Fence Panel Tank

Product Description

The Prestige Water Fence Panel Tank has been designed to slot directly into standard existing concrete fence posts.

The tank can be used to as the gravel board or placed on an existing gravel board to raise the tank and allow the tap to be used.

The simple unique design makes it visually discreet and easy to install.

Multiple tanks can be joined together to achieve the desired storage capacity.

This tank can form part of an above ground pumped rainwater harvesting system by incorporating a pump to one of the tank outlets.

Alternatively the tanks can form part of a SuDS attenuation system or combined rainwater harvesting - attenuation system.

This tank incorporates two 2" access caps to allow access to the inner tank.

There are a number of connection/draw off points to allow flexibility:

• 4 high level  1" BSP connections to allow diverters to be fitted (2 on each side)
• 4 low level  3/4" BSP draw off points for a tap or pumped drawoff (2 on each side).

The top connections points are NOT drilled allowing the customer to drill  to suit the requirement.

Two of the four lower draw off points are supplied drilled through and finished with threaded bungs. These can be removed to fit a tap or pump suction line.

The 100 litre Prestige Water Fence Panel Tank is manufactured in the UK.

Dimensions:

• Height: 610mm (2ft)
• Width : 1820mm (6ft)
• Depth: 110mm
• Capacity: 100 Litres
• Weight 10kg
• Material: MDPE
• Colour: Oak (See the detailed Prestige Water colour specification here)

Included Accessories:

• 4 x 3/4” BSP tank outlet fitting (2 no. drilled customer side , 2 no. undrilled, drill to suit with a 16mm drill bit)
• 4 x 1” BSP tank inlet fitting (4 no. undrilled, drill to suit with a 24mm drill bit)
• 1 No. 3/4" Prestige Water brass tap
• 2 No 3/4" brass plugs

Optional Accessories

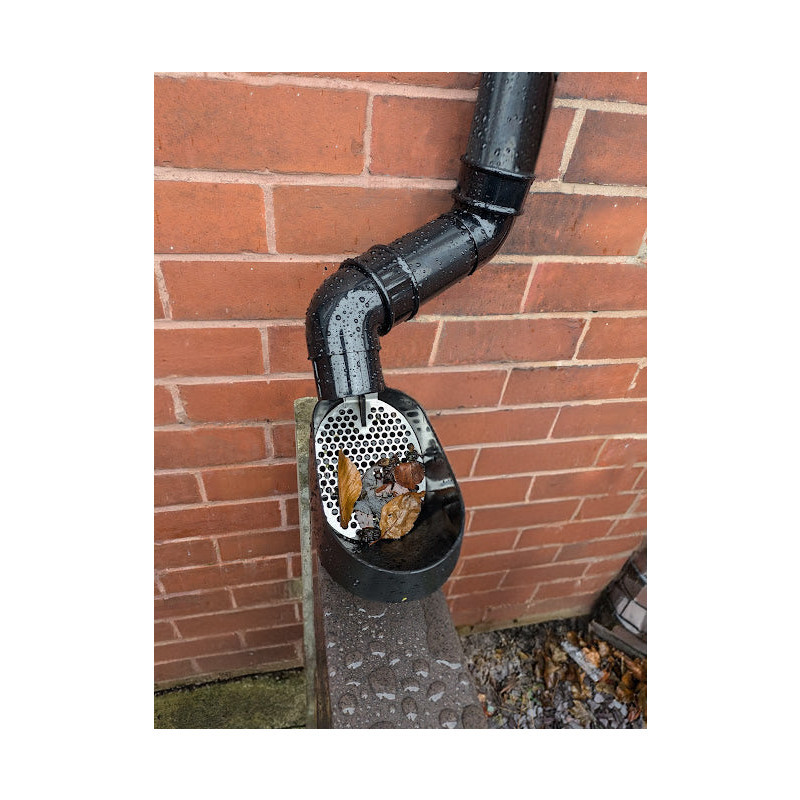

• Leaf catcher at the water butt inlet to capture leaves.

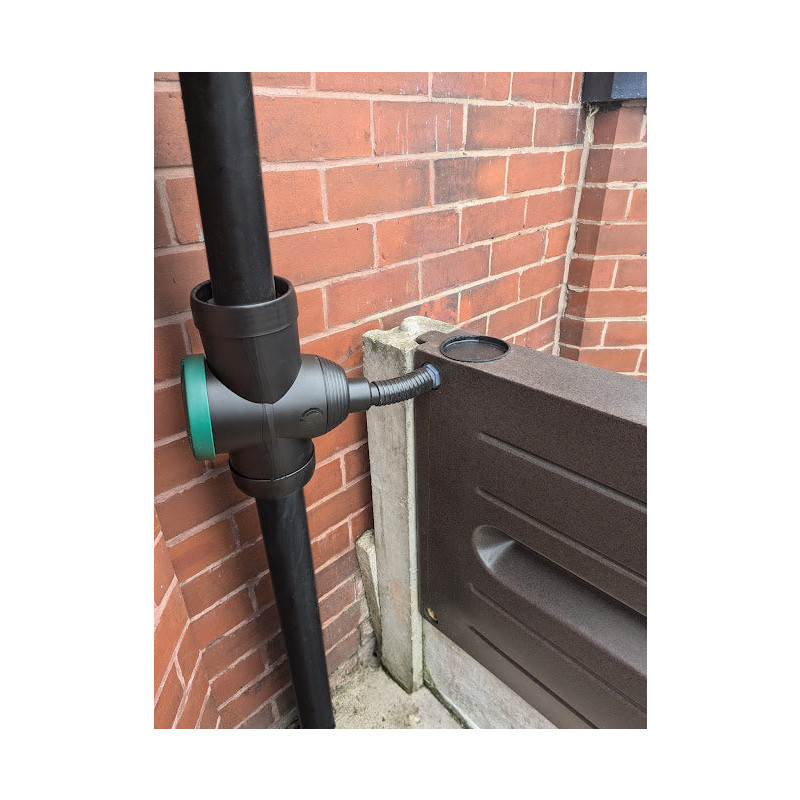

• Filter collector universal diverter
• Offset kit if a bend in the downpipe is required
• Overflow Kit if a diverter/filter is not being used
• Irrigatia solar water pump to water hanging baskets
• Tank Freshener to keep the tank fresh
• Linking Kit
• Mains Back Up Kit
• External Pump System

Notes

The top connections points are NOT drilled allowing the customer to drill  to suit the requirement. Two of the four lower draw off points are supplied drilled through and finished with threaded bungs. These can be removed to fit a tap or pump suction line.
