35/20

Product Description

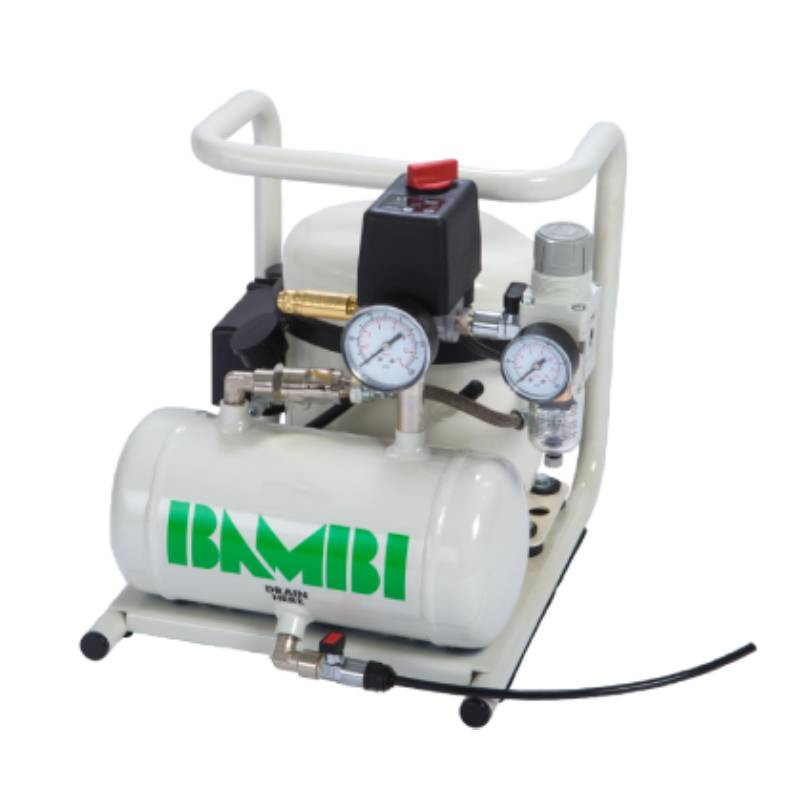

Bambi 35/20 oil lubricated compressors were developed for users where ultra low noise and relatively small flow of air is required. With sound levels from just 40 dB(A) and almost no vibration when running, 35/20 compressors can be located in the work area without causing any noise intrusion.

Popular applications include laminating machines, staple guns, air brushing, exhibition stands, adhesive dispensing, test equipment, veterinary dental, door operating systems, pneumatic control valve systems, printers, heat presses, upholstery, watch pressure testing and engraving tools.

Designed to require minimal maintenance and to ensure years of trouble free use, standard versions have an 8 bar maximum working pressure, with optional higher pressures available on request, clearview oil level check and 10 micron filter regulator.

Technical Specifications:
Motor Power: 0.34 kW (0.5 HP)
Duty Cycle: 50%
Air Receiver: 4 L
Maximum Working Pressure: 14 bar (203 psi)
Noise Level: 40 dB(A)
Weight: 18 kg
Dimensions (HxWxD) 33 x 28 x 32 cm

Free Air Delivery:
@ 1 Bar - 45 lpm
@ 2 Bar - 40 lpm
@ 3 Bar - 37 lpm
@ 4 Bar - 35 lpm
@ 5 Bar - 34 lpm
@ 6 Bar - 33 lpm
@ 7 Bar - 32 lpm
@ 8 Bar - 31 lpm
