Dalesman

Manufactured by Byworth Boilers

Product Buying Options

Additional Sales Information: For more information about our boiler ranges visit our website. To find out which boiler will suit your hot water requirements contact our friendly sales team on +44 (0)1535 665225 or email sales@byworth.co.uk

Product Description

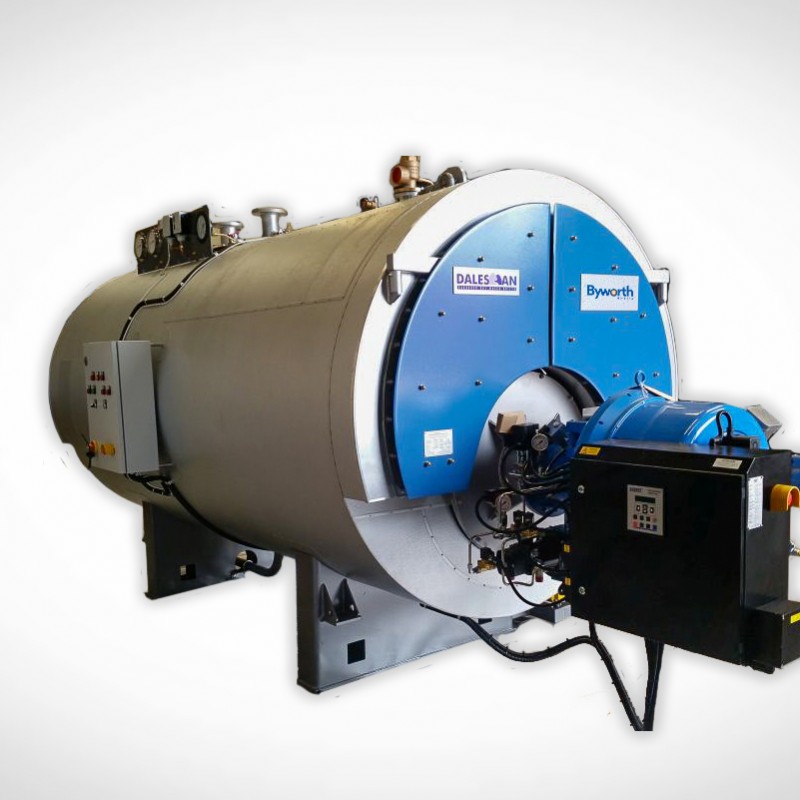

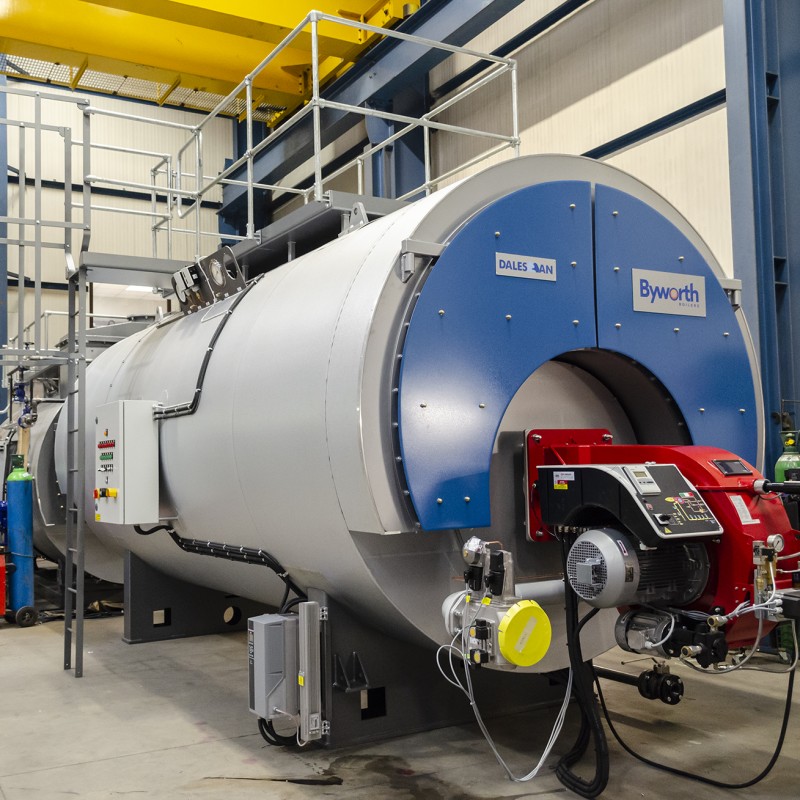

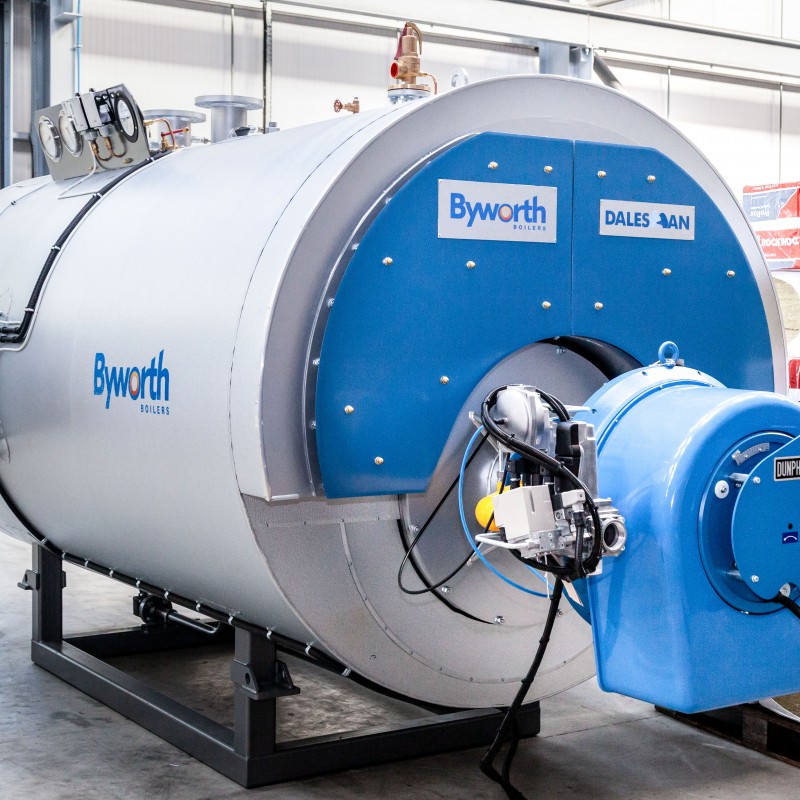

The Dalesman is a traditional three pass, full wet back hot water boiler. It is ideally suited to cope with the rigours and continual heavy workloads for industrial applications.
Every Dalesman is exclusively designed and built in the UK to meet customers specific hot water requirements.

The Dalesman high and medium temperature versions incorporate the unique X-ID boiler tube. With special helical internal ribs this tube increases heat transfer from tube to water space, making the Dalesman a most energy efficient hot water boiler.

Sizes From - 1000kW – 10000kW - Working Pressure - up to 16 bar g maximum temperature of 180°C

High efficiency
• Low NOx emissions
• Reliable and robust with long life span
• Generous shell and furnace sizes.
• Output easily achieved
• Central furnace with bowling hoops
• Easy access for cleaning and inspection
• High performance X-ID firetubes (med/high temperature models)
• High performance ceramic fireside insulation
• Thermal stresses are alleviated due to a central furnace and flat flanged end plates
• Heat losses are minimised with high-density external insulation
• By using high-performance, ceramic materials we have eliminated problems associated with traditional refractory cement
• Quality assured. Our internal inspection regime exceeds BS and EN requirements; this includes 100% ultrasonic inspections of all major welds
• Manufactured in Britain
• Removable NDT inspection panels
• Boiler access platform available upon request
