MaxAtec 100-A01/A02

Product Description

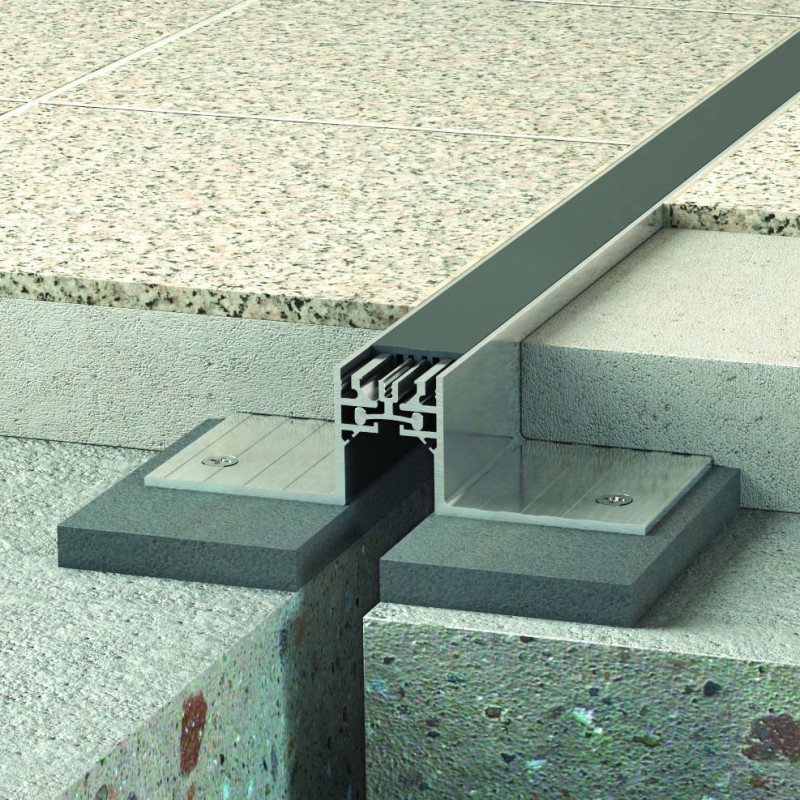

The MaxAtec 100-A01/A02 is an aluminum expansion joint with an EPDM rubber seal. This joint provides good movement capacities suitable for pedestrian traffic.

The Maxatec 100 can also come with either Stainless Steel (S01/S02) or Brass (B01/B02) capping's for an elegant finish to suit surrounding floor finishes. For a vinyl floor finish a compatible rubber seal (V01/V02) can be provided which extends 3mm above the level of the joint frame to create a level surface with the vinyl.

This joint is centre supported and follows the Disability Discrimination Act (DDA) compliances across the entire movement cycle. This product is available in the below options;

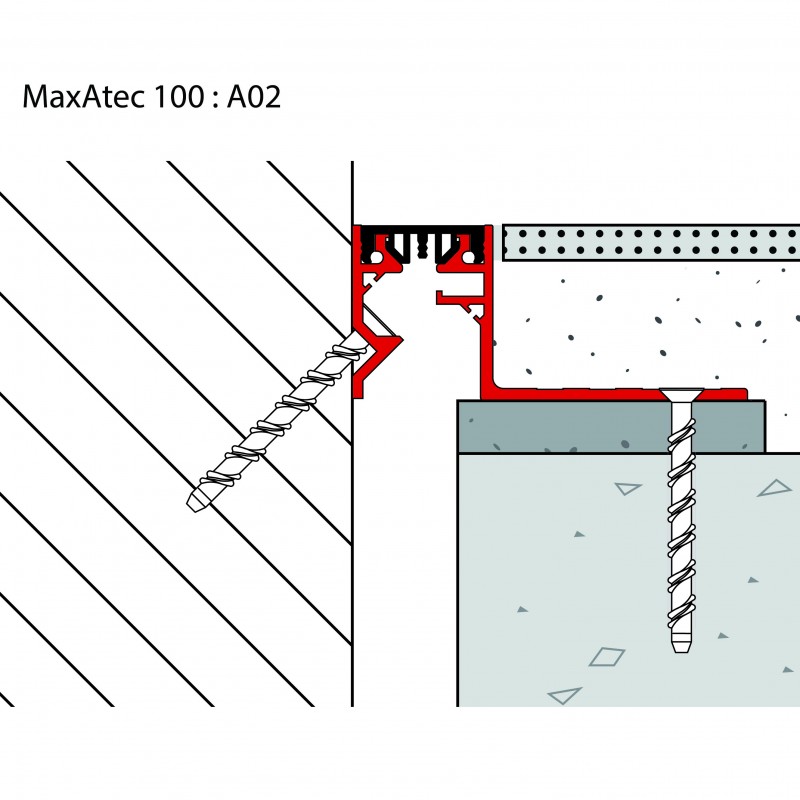

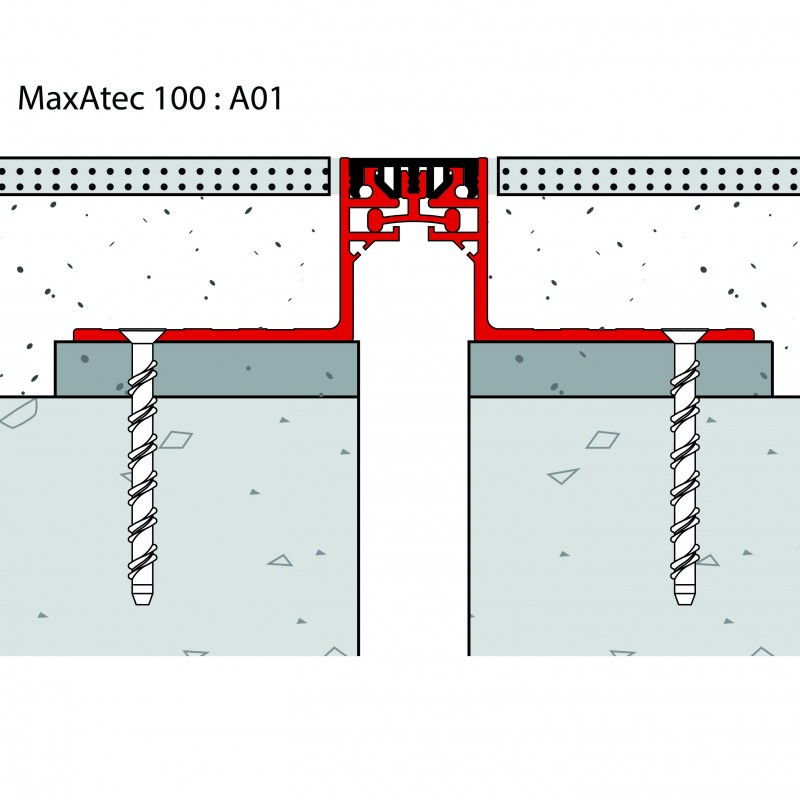

• Installation conditions - Floor-to-floor (A01)/ Floor-to-wall (A02)
• Gap Widths(mm) - 30/50/75
• Frame Heights(mm) - 25/35/50/75
• Seal Colour - Black/Grey/Beige

This joint system is also fully compatible with our AquAtec waterproofing  and Fireflex fireproofing systems.
