Model 84 (Open Face/Pneumatic Lift - Flat Lapping Machine)
Manufactured by Lapmaster Wolters Limited
Product Buying Options
Additional Sales Information: Contact our sales office on 0044 1752 891600
Product Description

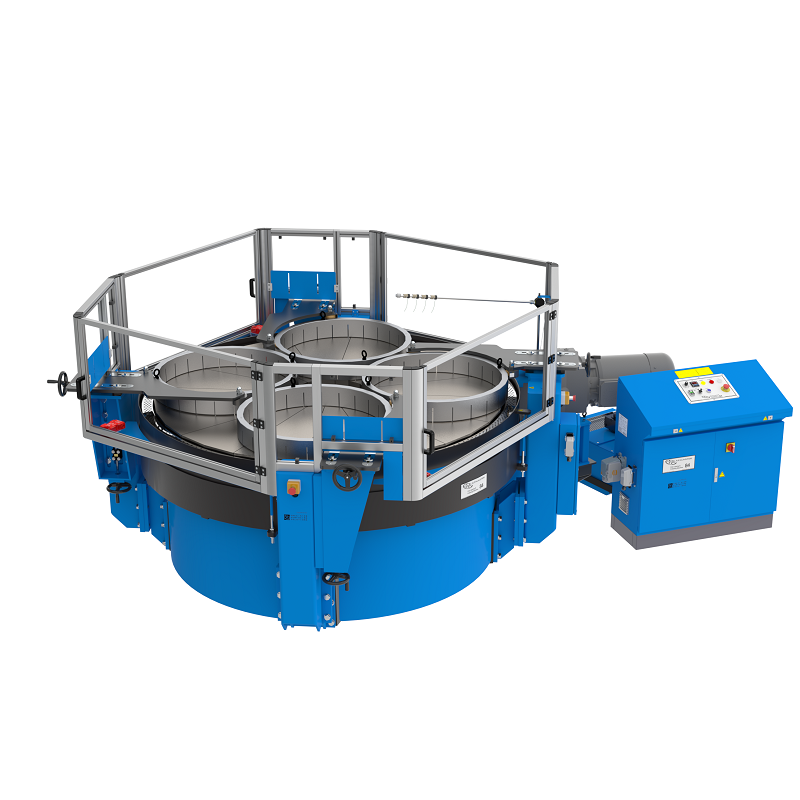

Model 84 machine for standard duty applications is equipped with four work stations. The machine includes a fabricated base assembly with segment support plate, splash trough and four equally spaced pillars.
- Heavy duty floor standing base, with integrally mounted drive motor, and reduction gearbox, abrasive distribution system
- Pneumatic lift version: Range of loads for pressure weights 220.5lbs to 881.8lbs / 100kg to 400kg
- Four conditioning rings, with adjustable, sealed roller bearing yoke assemblies to maintain lap flatness
- High torque drive unit consisting of 40.2hp/30kW (pneumatic lift version: 29.5hp/22kW) motor and reduction gearbox
- Operator controls at 110V
