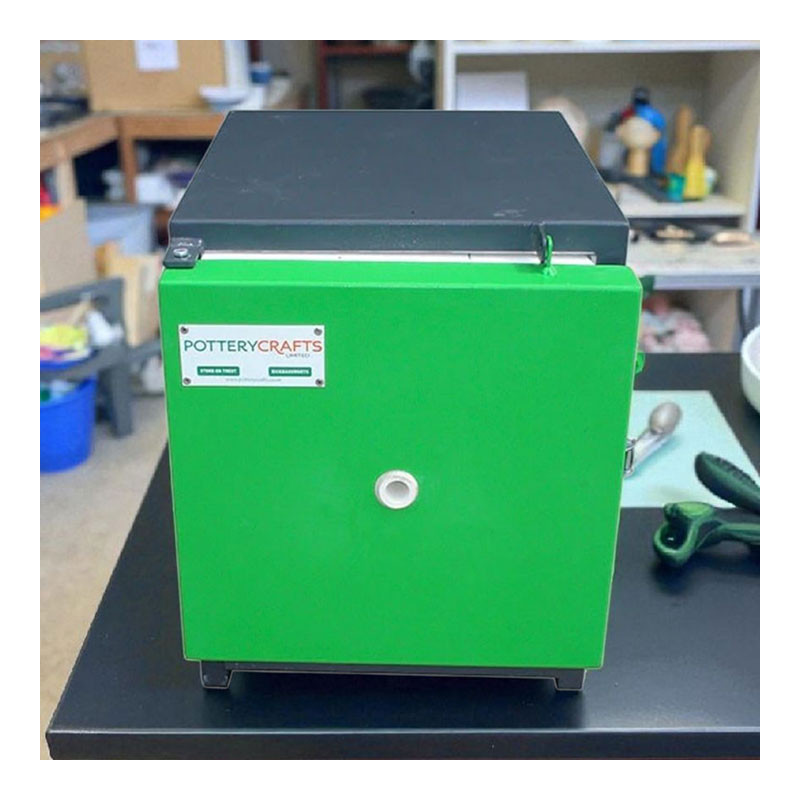

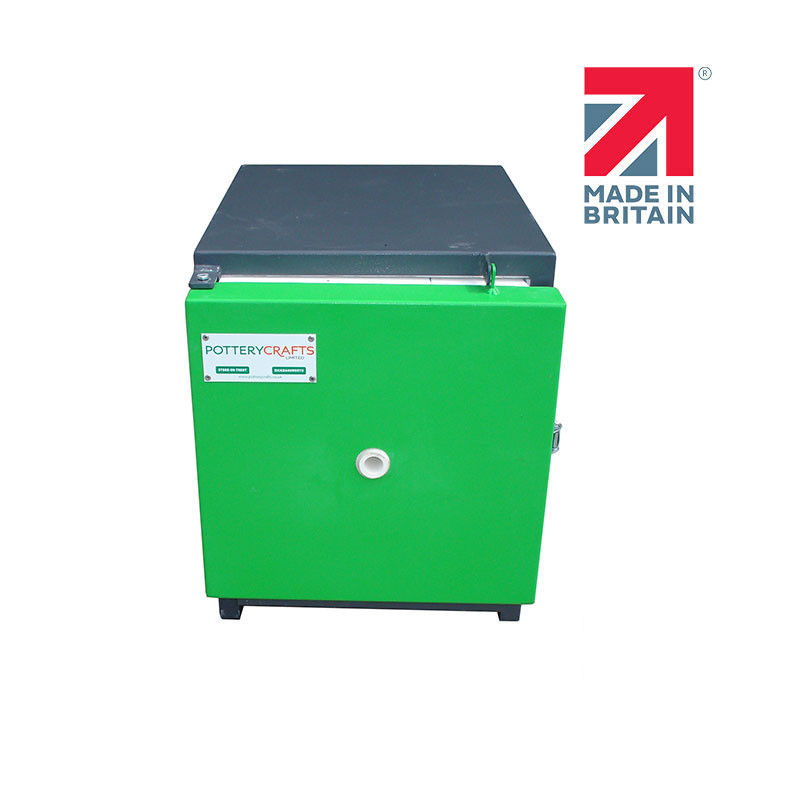

Potterycrafts 9 Litre Front Loading Test Kiln

Product Description

Potterycrafts Test kiln has a capacity of 9 litres. This model of kiln is ideal for test pieces or single item firings.

Like our main ranges, our FL9 Test kiln is constructed with the same durable low thermal insulation bricks with high grade backup insulation boards, all enclosed within a robust high quality pressed steel powder coated frame.

Our experts are available to answer questions on our kilns.

Designed and made in the heart of “The Potteries” in Stoke on Trent, England. Tried and tested formulas have made Potterycrafts kilns one of Europe’s best-selling brands for many years.
All spare parts in stock, here in our factory in Stoke on Trent.

• Two-layer efficient insulation comprising of the highest quality grooved insulation brick and backed up with high grade insulation board.
• Brick to brick door seal (no fibre seals which deteriorate) with a flush fit for better heat retention.

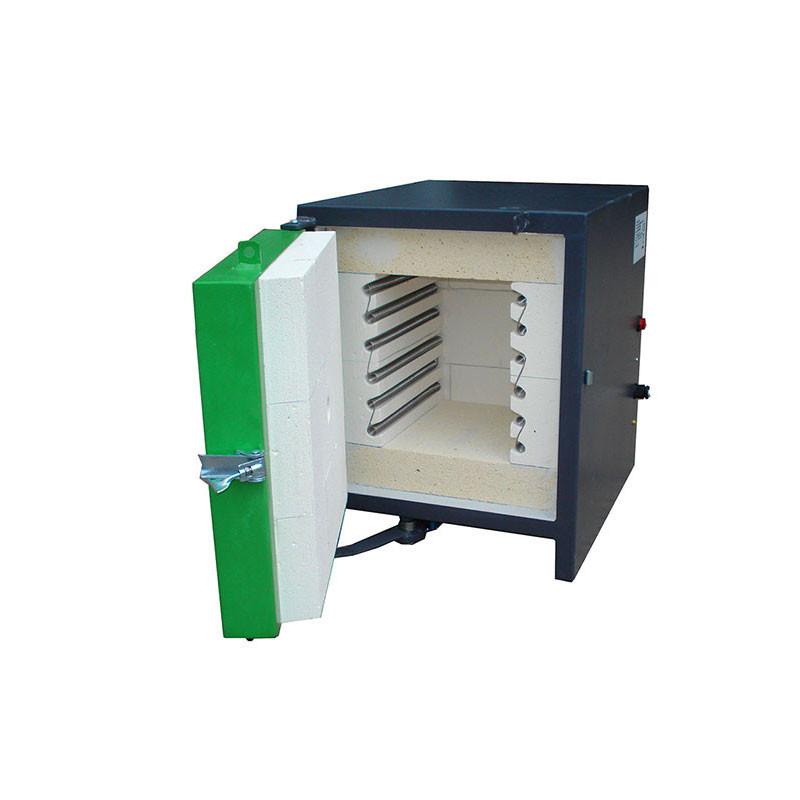

• Kanthal A1 elements sit within the grooved brickwork of the side walls and the floor of the kiln to allow uniform heat distribution throughout the chamber.
• Door Spy Hole/vent and flue vent with manual damper as standard (automated damper can be added at extra cost).

Specifications:

• Firing Capacity: 9 Litre
• Maximum Temperature 1300°C.
• Supply Required for Single Phase - 13-amp socket or switched spur Kiln power 2.5kw.
• Warranty Period: 2 years (excluding elements)

Safety feature:

• Dual contactors and over temperature monitoring provide protection against overfires, when used with Potterycrafts kiln controllers.
• Type R thermocouple for accuracy and longevity of use.
• Roof and door vent as standard for venting the kiln during firing and to aid cooling.
• Automatic safety interlock door switch ensures safe operation
• All Potterycrafts kilns are ROHS and WEEE compliant.
• For more information about installation, positing and ventilation with your new kiln, please see our support section of the website.

Includes the U.K. built CERA-10+ Controller:

The controller is the latest development in a long series of controllers; they incorporate new software giving improved efficiency and ease of programming together with up-to-date safety and diagnostic features.
