PowerTector Low Voltage Disconnect

Product Description

The PowerTector Low Voltage Disconnect is a solid state battery device that will monitor the source voltage and disconnect the equipment from the battery if the voltage falls below a pre-determined level.

This can work to ensure that there is always sufficient voltage remaining in the battery to start a vehicle engine or ensure power is available for other critical applications.

The total discharge of a lead acid battery can also cause damage to the cells significantly shortening the life of the battery.

The PowerTector unit can also be set to disconnect equipment at a lower voltage that will still protect the battery from total discharge, while allowing for maximum battery usage.

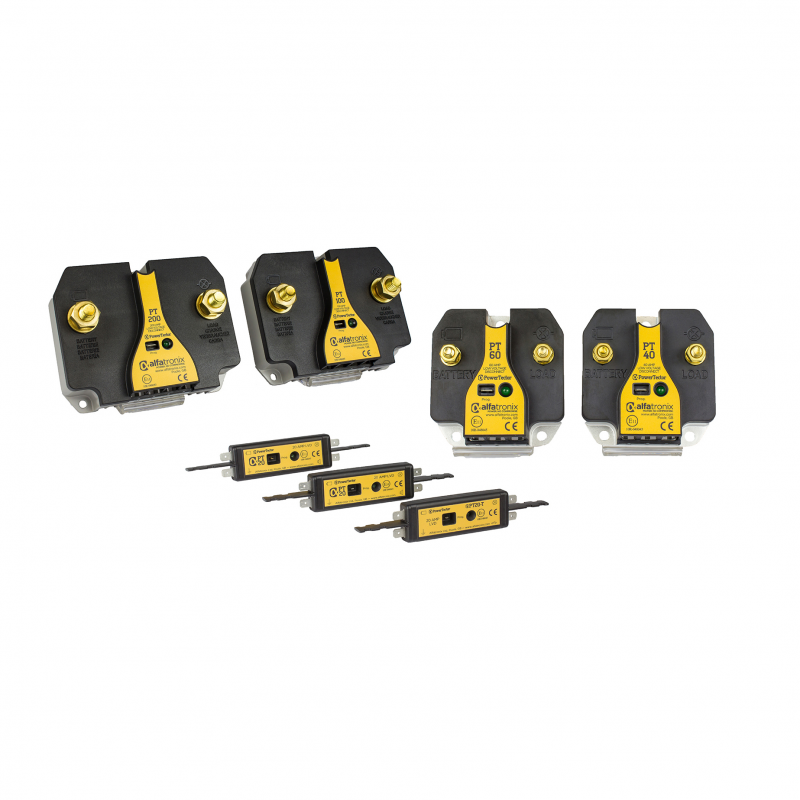

There are six units in the range from 20A to 200A. The 20A unit offer a simple inline system, usually wired to a specific piece of equipment.

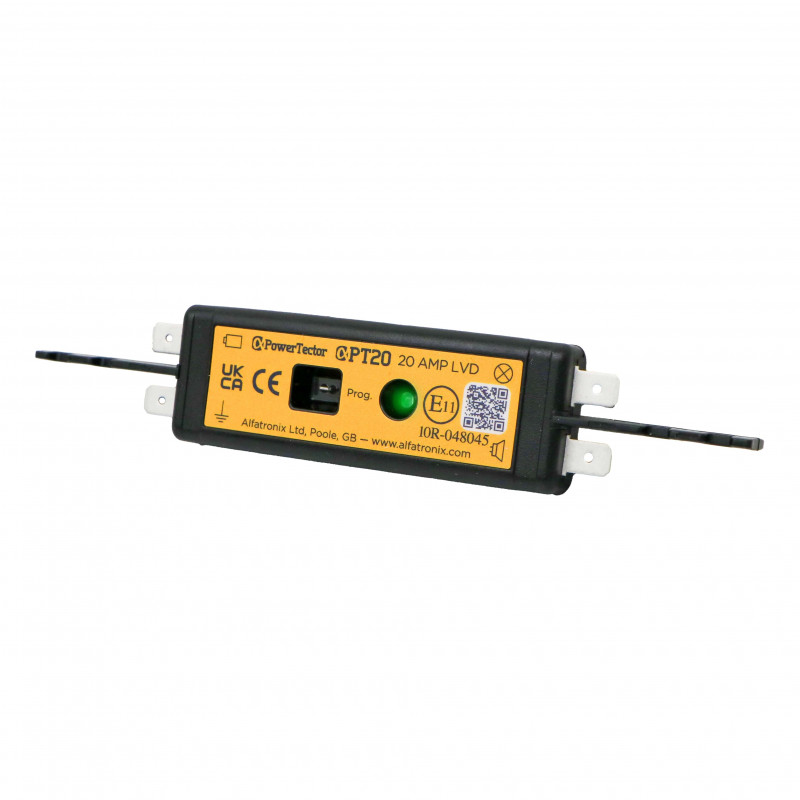

• PT20 (20A Continuous)

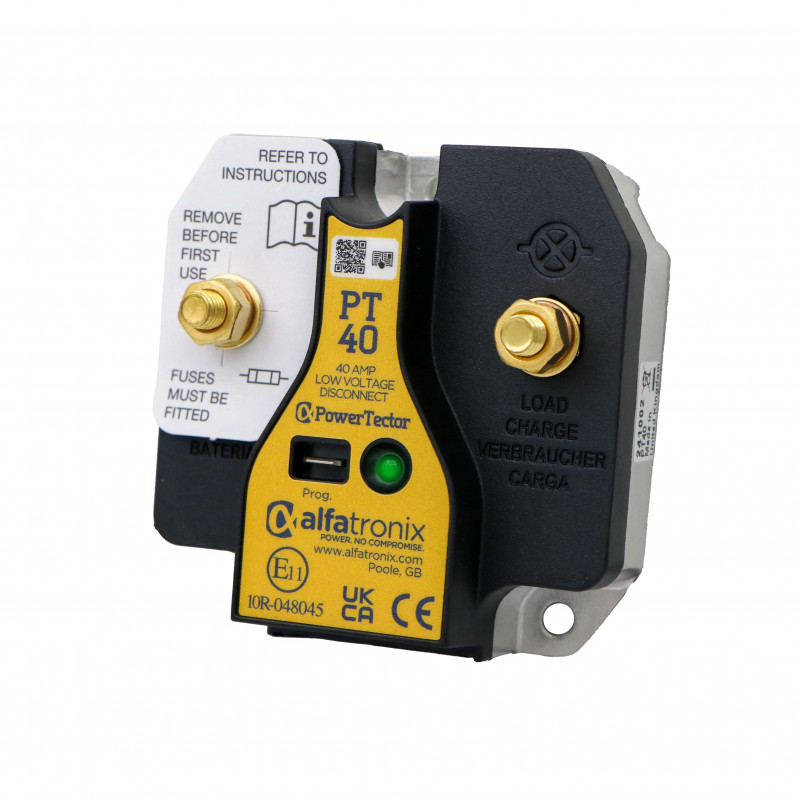

• PT40 (40A Continuous)

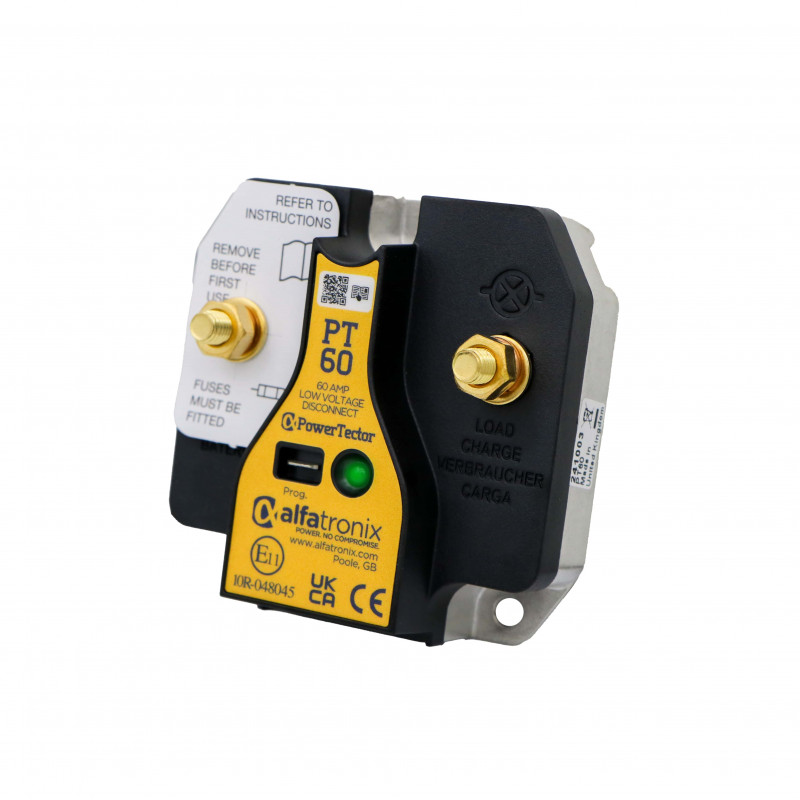

• PT60 (60A Continuous)

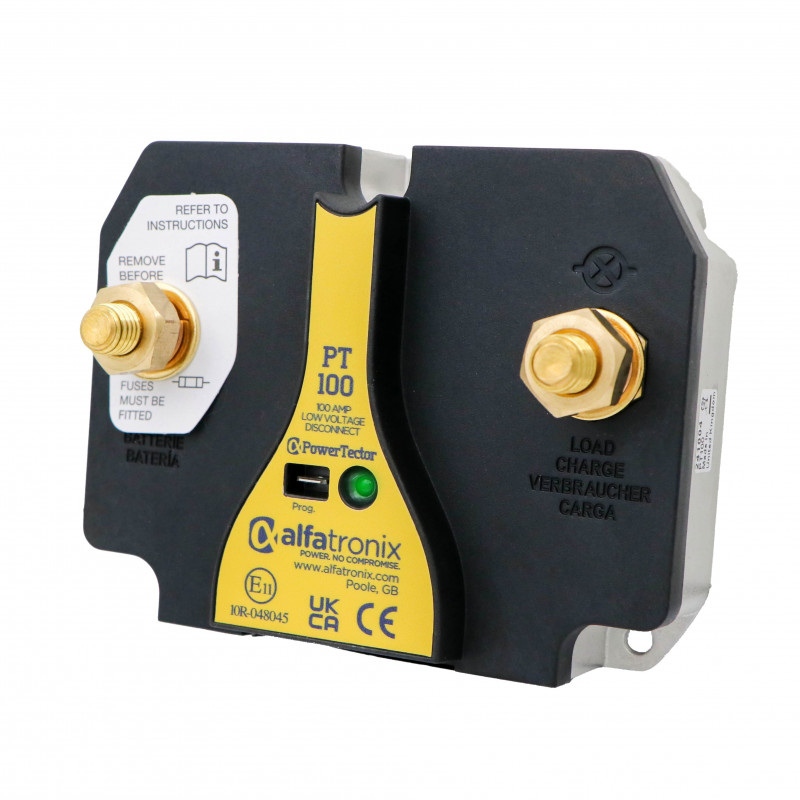

• PT100 (100A Continuous)

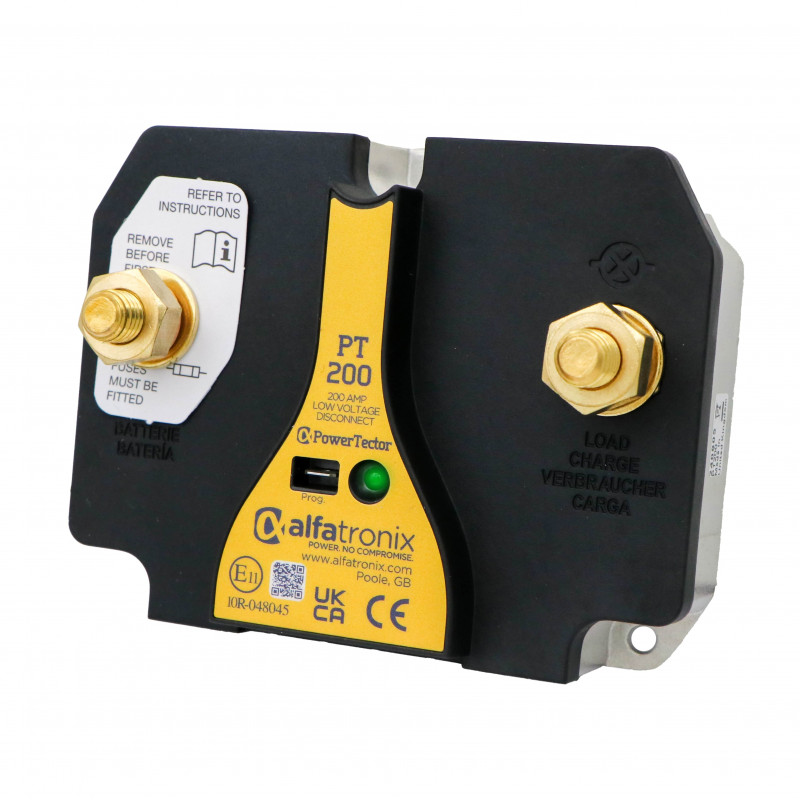

• PT200 (200A Continuous)

A  timed version is also available which will disconnect automatically a set period after the ignition has been switched off.

• PT20-T (20A Continuous)

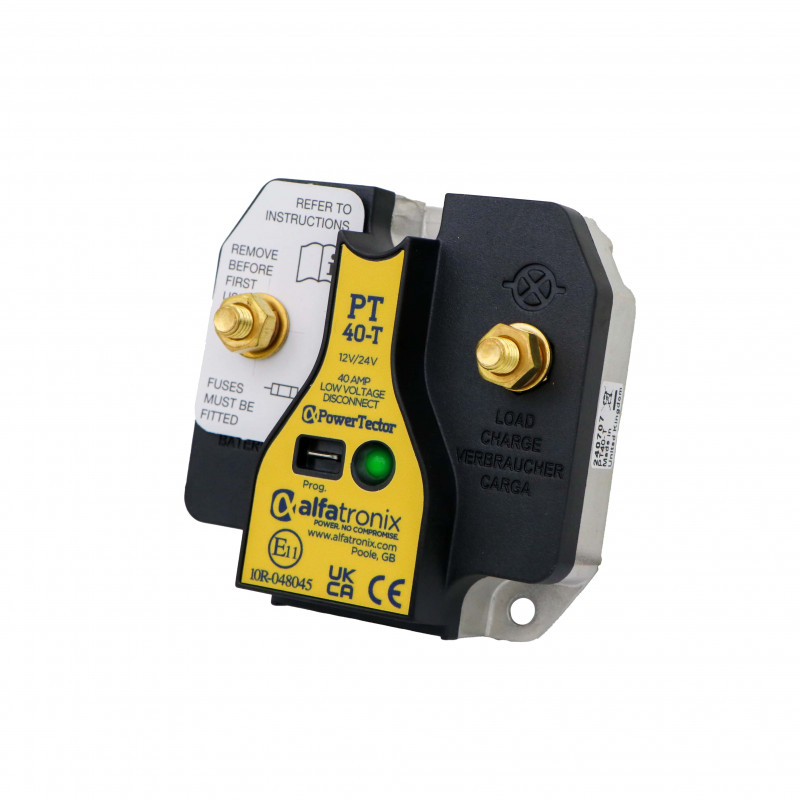

• PT40-T (40A Continuous)

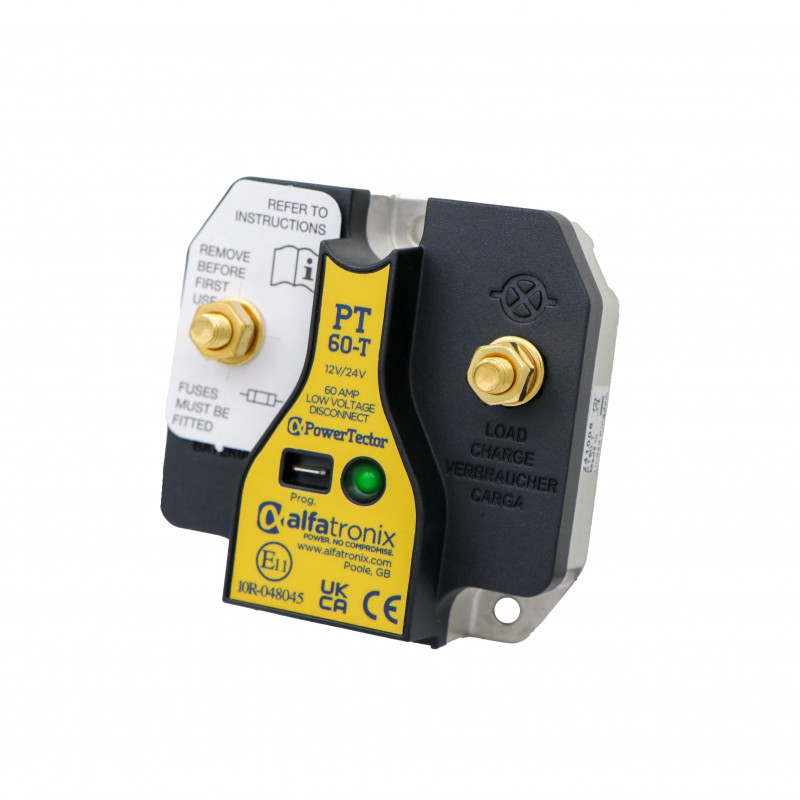

• PT60-T (60A Continuous)

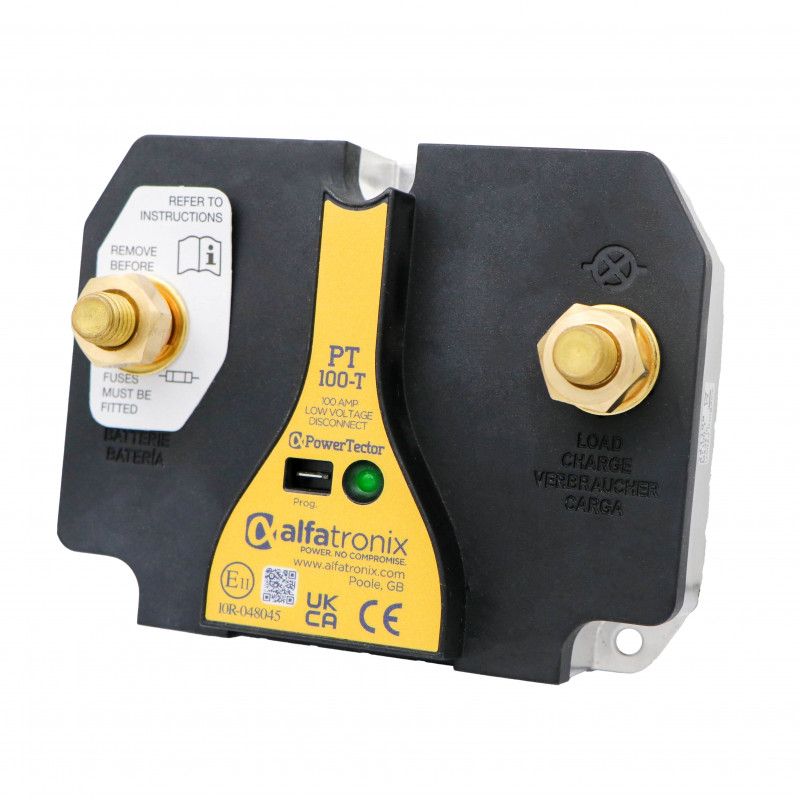

• PT100-T (100A Continuous)

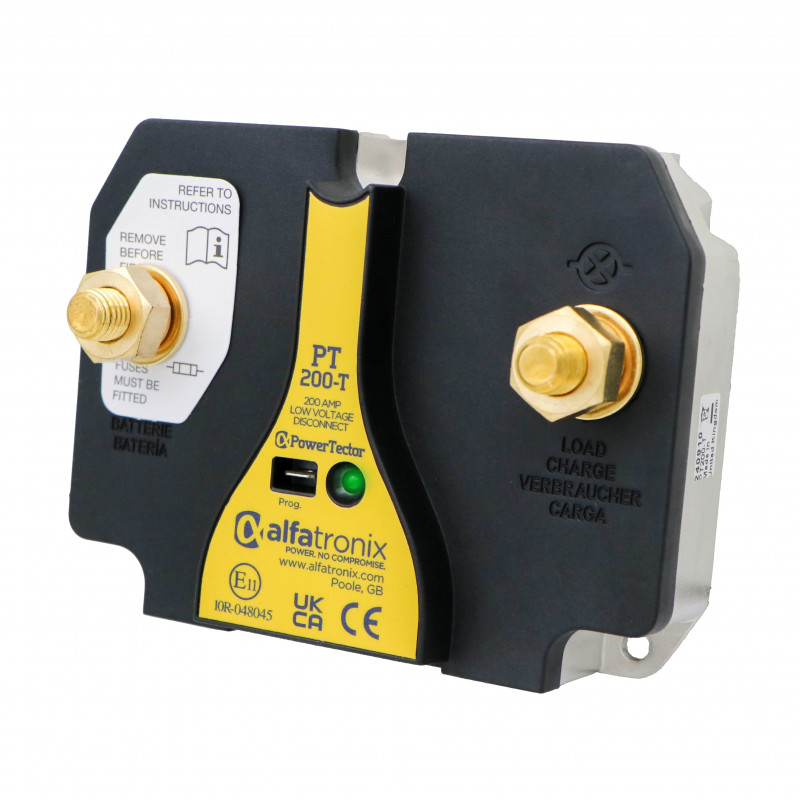

• PT200-T (200A Continuous)

These units do not require chassis mounting and simply connect and tie wrap neatly within the wiring system.

The 40A and 60A units are connected by M6 brass bolts, the 100A and 200A by M10 brass bolts and use a three point mounting system to avoid rocking or stress to the electronics when mounted on uneven surfaces. Heat is dissipated into our custom manufactured die cast casing and all units will operate at full power without additional heatsink dissipation.
