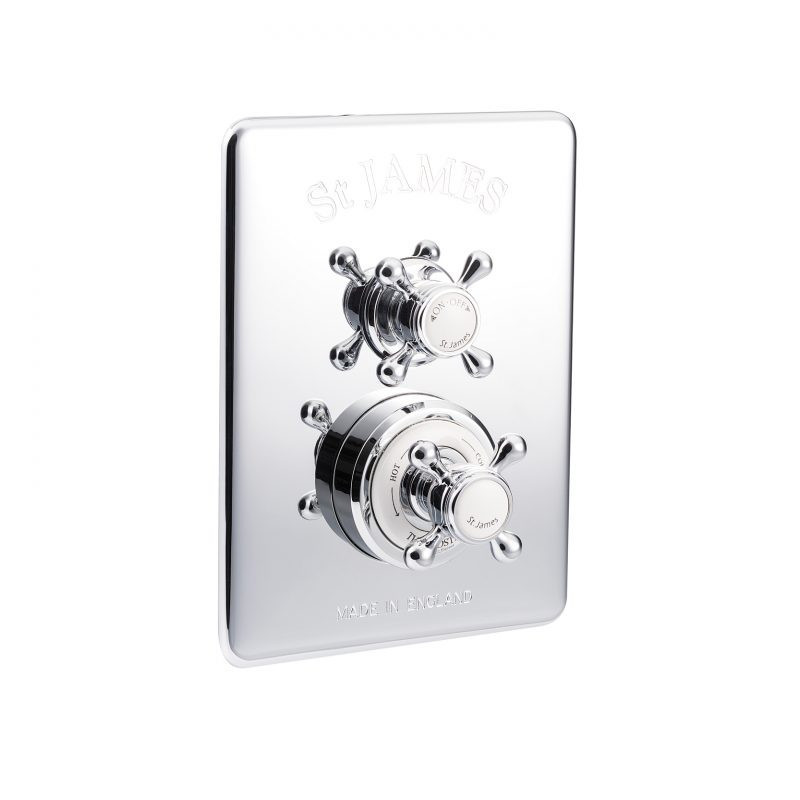

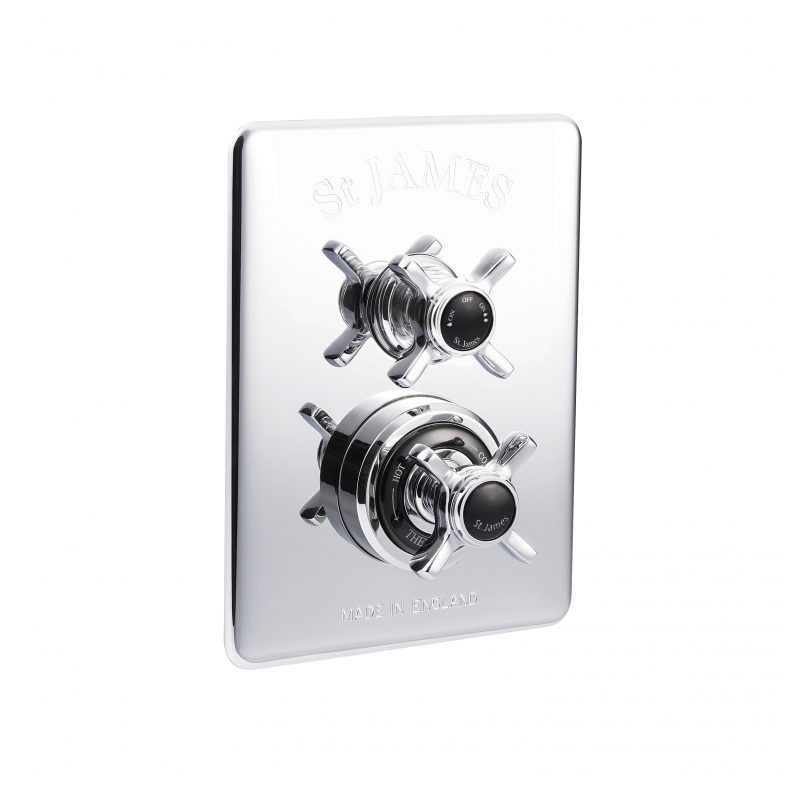

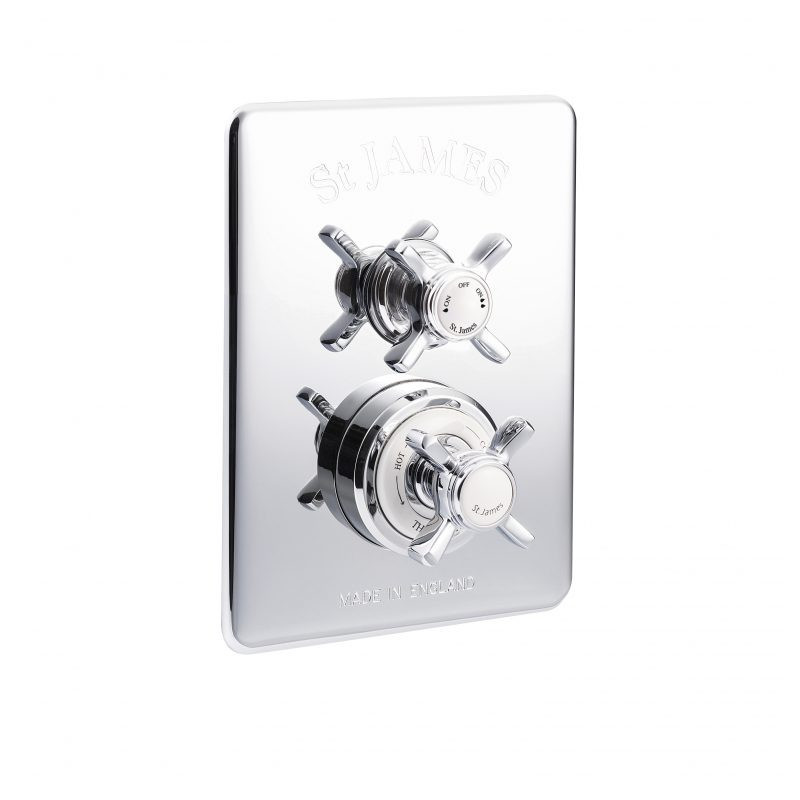

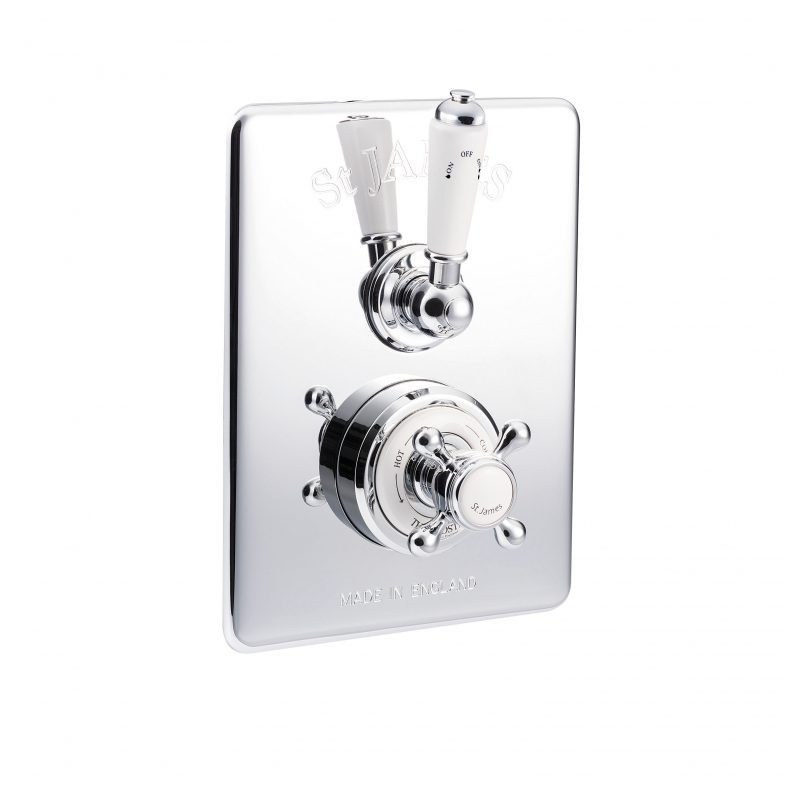

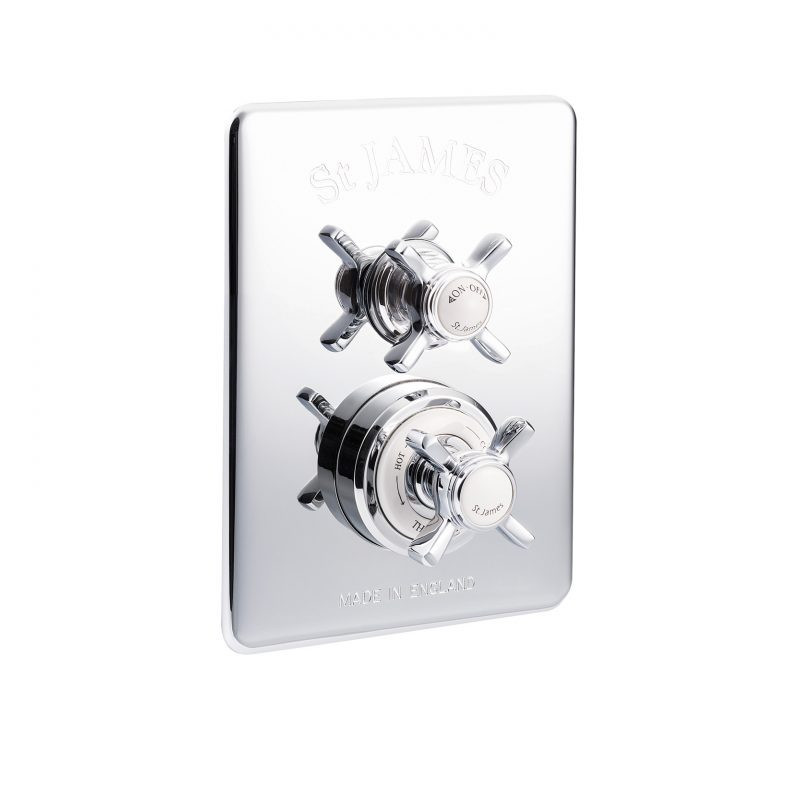

St James Classical concealed handshower dual control thermostatic valve

Product Description

Engraved concealing plate. Delivers to x1 outlet of water. Contemporary markings on temperature dial . Flush classical, smooth valve body. Temperature stop. Available in all finishes and selection of handle styles.

Technical & Dimensions
Inlet: 15mm inlets

Outlet: 3/4" (3/4" outlet nut not included)

Flow Rates:

1.0 bar: 20 l/min

3.0 bar: 35 l/min

5.0 bar 44 l/min

Fitting Depth: min 64mm to max 78mm from finished tiled surface to rear of fixing when used with a Classical valve.

Extension kits available on request.

10 year guarantee

All of Marflows St James thermostatic shower valves are made in solid brass, then hand polished. Each shower valve is fitted with the very latest in thermostatic cartridge technology that ensures optimum temperature control and safety. The thermostatic showers are also dual control, so that water flow and water temperature can be independently operated. All valves and their components, including cartridges are tested by Marflow to ensure they meet our exacting standards. They provide easy maintenance access from the front once fitted and each carry a unique serial number with certification for product traceability.
