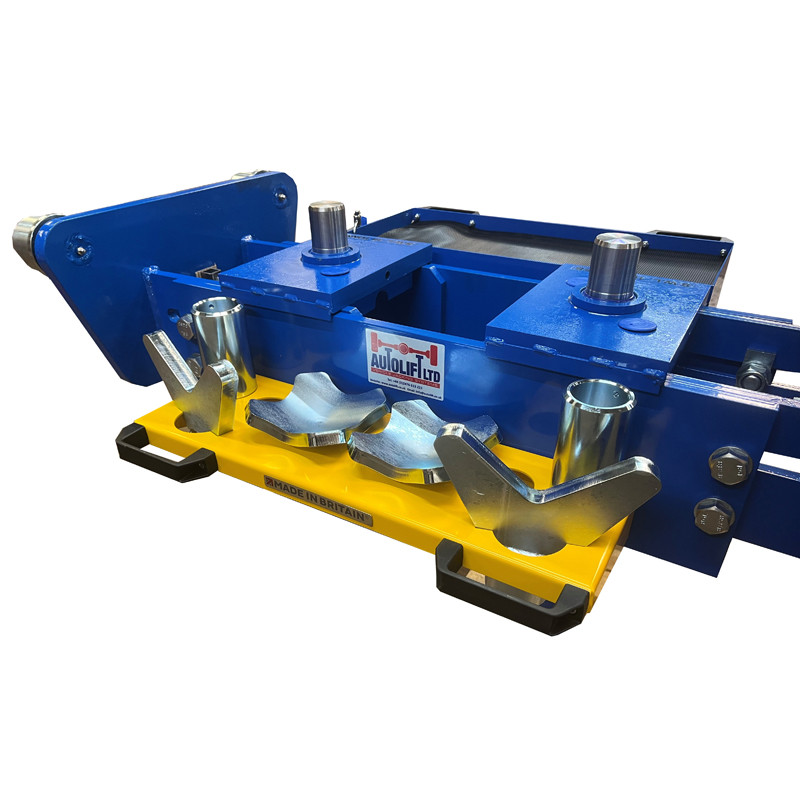

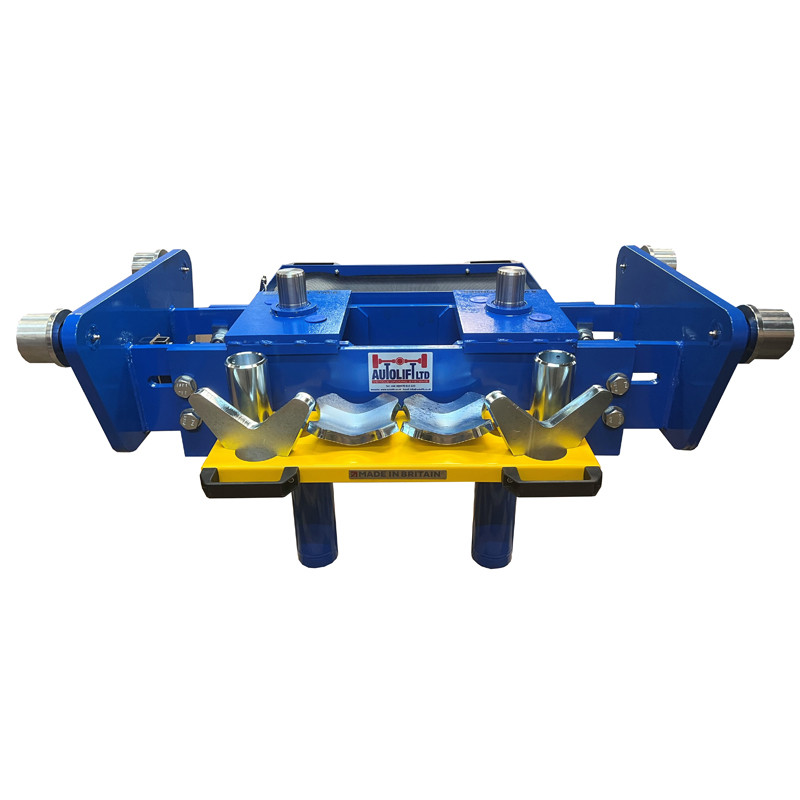

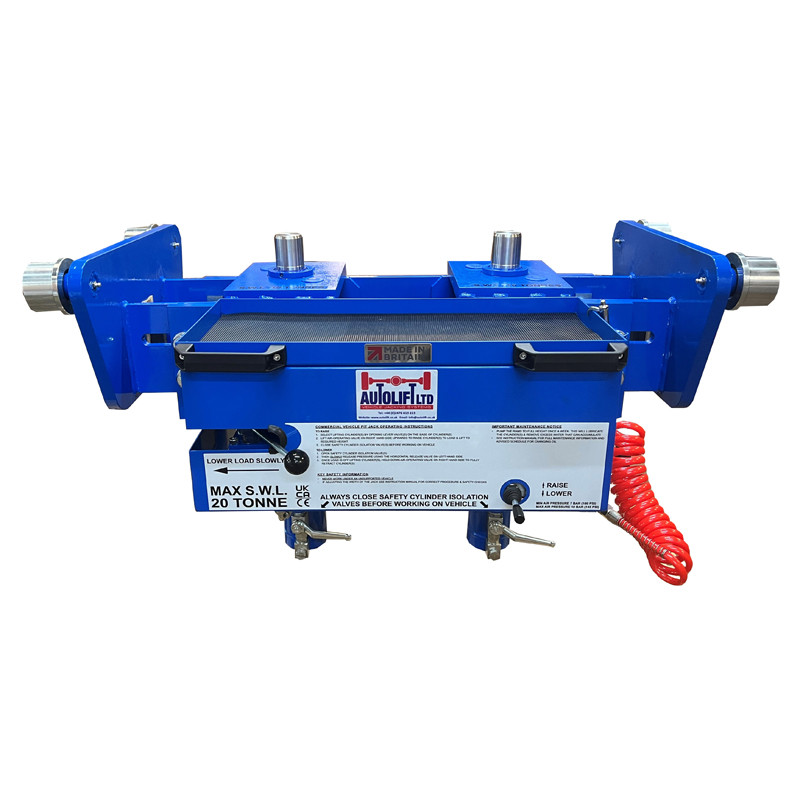

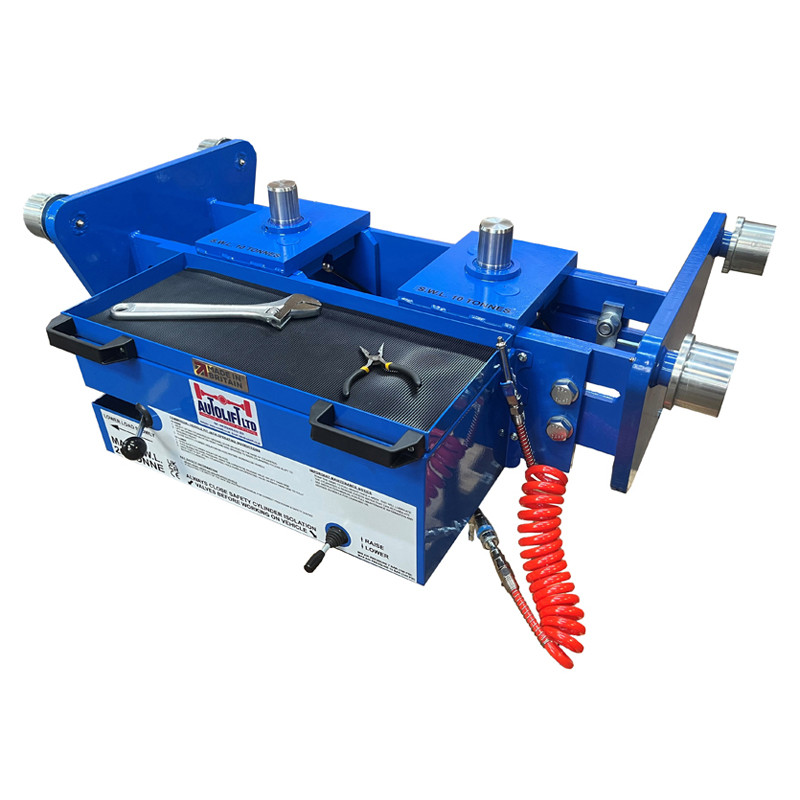

13 Tonne / 20 Tonne Air-Powered Adjustable Twin Ram Commercial Pit Jack

Product Description

This model of commercial pit jack is available in a 13 Tonne or 20 Tonne capacity.400mm lifting stroke

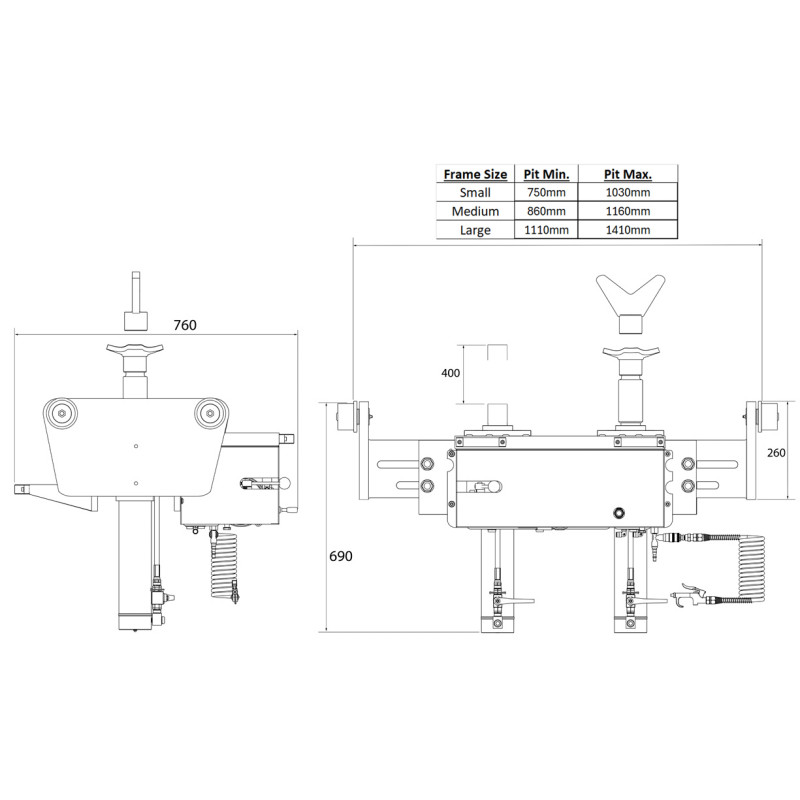

• Available in 3 sizes with a large range of adjustment for excellent versatility (see table in picture 5 for ranges).
• Fast acting air pump
• Air over oil hydraulic design allows for increased performance and longevity of cylinder lifespan.
• Ergonomic handles to move the jack along the pit with ease.
• Tool tray to provide an easily accessible place for your tools or parts while working on a job.
• Cylinders can be operated independently and transversely sliding rams for accurate positioning.
• Suitable for ATF & MOT test lanes.
• Triple layer of safety features – Safety Lowering Valves, anti-burst valves & ram lock-off handles. (Security Struts can also be added as an optional extra to provide additional layer of security to the user). Security Stuts can be easily retrofitted after the jack is already in the pit with minimal equipment downtime.
• Each jack comes with included in the price with; 2x 125mm Extensions, 2x Vee Head Adapters, 2x Dish Head Pansies, Rear Adapter Rack Holder & Air Blow Gun.
• UKCA / CE marked, conforms to EC regulations.
• Covered by a 5 year warranty.

The range of adjustment for each frame size is;

Small - Pit Min. 750mm. Pit Max 1030mm
Medium - Pit Min. 860mm. Pit Max 1160mm
Large - Pit Min. 1110mm. Pit Max 1410mm
