Acoustic Modular Wall System

Manufactured by Akustak®

Product Buying Options

Product Capacity: 500 units per week (400 m2)

Minimum Order Quantity: 10 units (c.8 m2)

Additional Sales Information: Visit the company website: www.akustak.com or email: enquiries@akustak.com

Product Description

Akustak®, by Mute Group, is a British made, acoustic modular wall system; granted a UK patent in 2021.

Designed for materials optimisation and off-site construction, Akustak® minimises waste, during manufacture and installation, whilst its unique demountable form, facilitates reuse and recovery.

In recognition of its sustainability credentials, Akustak® has been selected for growth & scale support, from the UK Government’s Innovate UK EDGE, alongside Innovative Start-up Membership, by the UK Green Building Council (UKGBC). Akustak® is also a valued member of the Association of Sustainable Building Products (ASBP).

Prefabricated and portable, Akustak® accelerates construction timescales, with configurations installed from 15 m2 / per hour, ready for plastering and/or decoration, whilst the Forest and Chroma range come pre-finished; eliminating the need for wet trades.

Akustak® has been laboratory tested for fire safety (BS EN ISO 1364-1) and resistance to sound (BS EN ISO 10140-2 & 717-1), surpassing Building Regulations – Part B and E.

Akustak® CONFIGURATIONS:

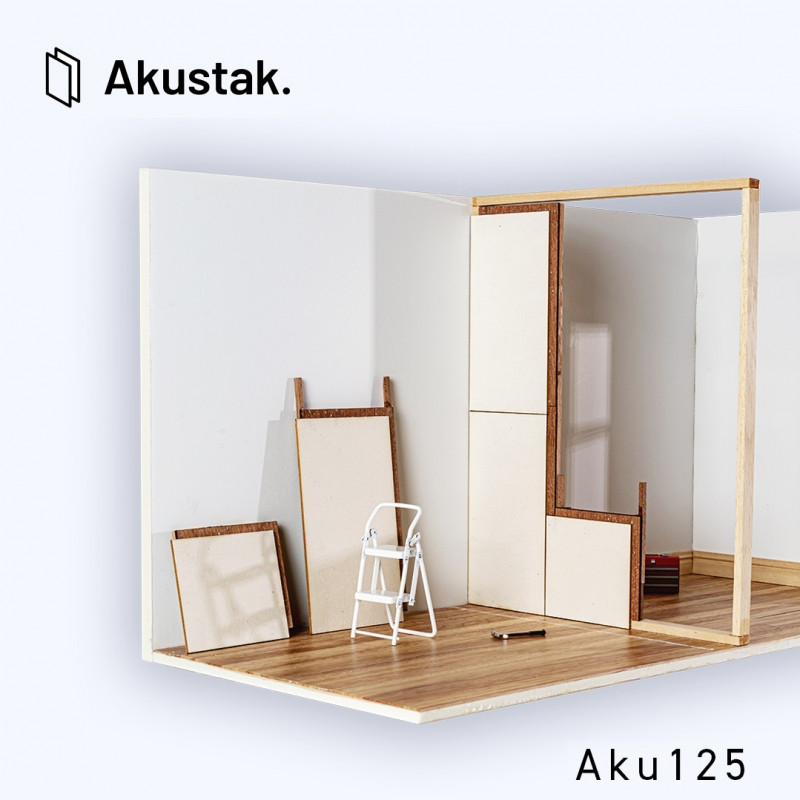

Aku125: Independent, twin-faced wall, typically installed to form new spaces and separations, where high levels of sound insulation are required, for example, interview rooms, meeting rooms and private offices.

  • Laboratory tested to Rw 49 dB airborne sound insulation (in accordance with BS EN ISO 10140-2 & 717-1)
  • Laboratory tested to 79 minutes fire resistance (in accordance with BS EN ISO 1364-1)

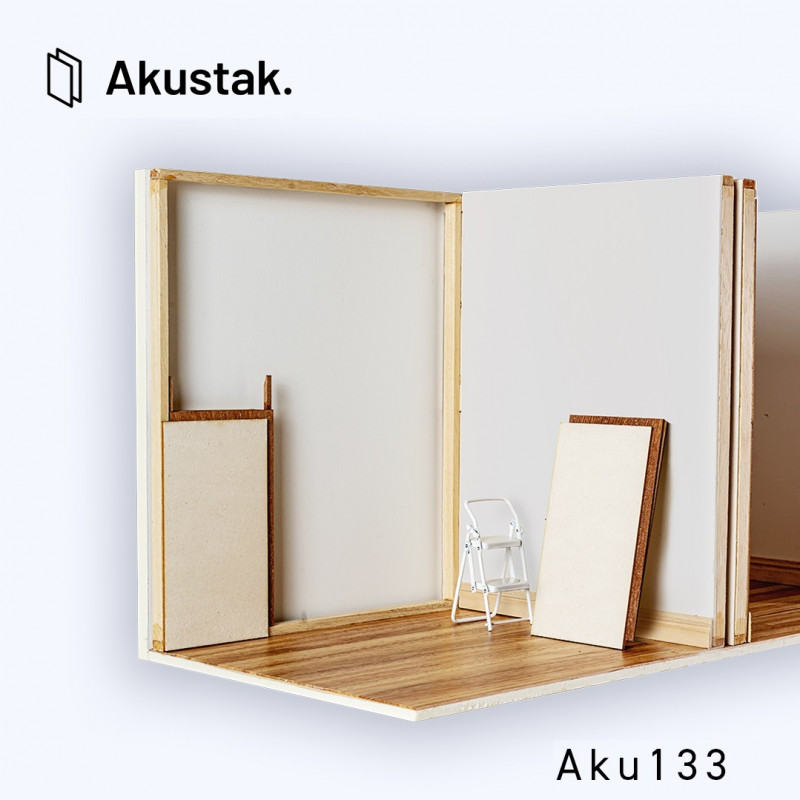

Aku133: Independent, single-faced wall, typically installed in front of existing walls,  where a significant increase in sound insulation is required, for example, party walls between dwelling-houses and flats.

  • Laboratory tested to Rw 43 dB airborne sound insulation (in accordance with BS EN ISO 10140-2 & 717-1)

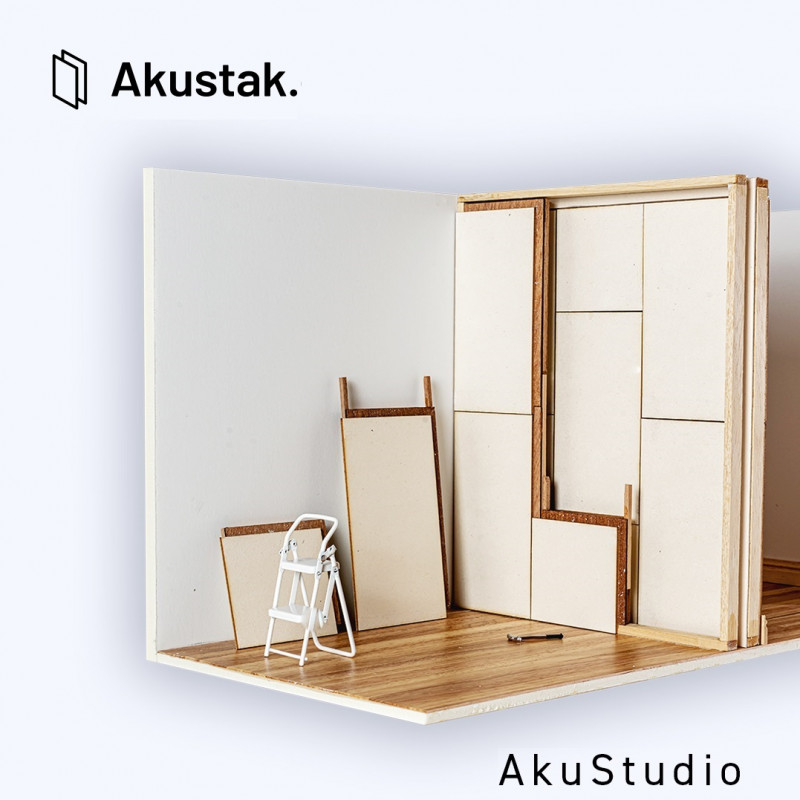

AkuStudio: Dual independent, twin-faced wall, typically installed to form new spaces and separations, where very high levels of sound insulation are required, for example, recording studios and test chambers.

AkuStudio can also be used to form party walls between purpose-built dwelling-houses & flats and dwelling-houses & flats formed by material change of use; guaranteeing Building Regulations – Part B (fire safety) and E (resistance to sound) compliance.

  • Laboratory tested to Rw 62 dB airborne sound insulation (in accordance with BS EN ISO 10140-2 & 717-1)

Akustak® FINISHES:

Akustak® Standard: Manufactured with a gypsum board fascia, ready for a plaster/paint finish.

Akustak® Forest: Manufactured with a birch ply fascia, pre-finished in clear Polyx®-Oil, as standard, with a range of timber veneers, available on request, including oak, teak and walnut.

Akustak® Chroma: Manufactured with an organically dyed, wood fibre panel fascia, pre-finished in clear Polyx®-Oil, with a range of colours, available on request, including black, blue, brown, dark grey, green, light grey, orange, red and yellow.
