Dual Polarised Horn Series DP240
Manufactured by Flann Microwave Ltd
Product Buying Options
Minimum Order Quantity: N/A
Additional Sales Information: To enquire about our range of Dual Polarised Horns, please contact the sales team on +44(0)1208 77777 or at sales@flann.com
Product Description
Features
- Frequency Range 2GHz to 18GHz
- Dual Polarization
- Close Phase and Amplitude Tracking Between Ports
- High Isolation
- Low Cross Polarization
- Integral Mounting Bracket Option
- Rated to IP54*
Typical Applications include:
- Electromagnetic Interference (EMI) Measurement
- Antenna Measurement
- Radar Cross Section Measurement

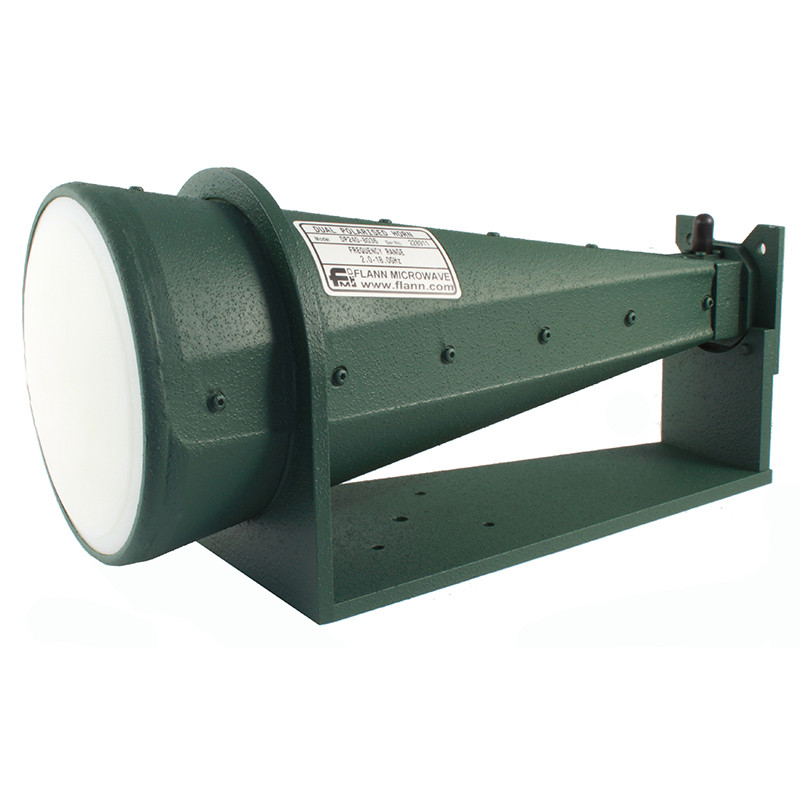

The Flann Dual Polarised Horn, Model DP240 is a multioctave, coaxially fed, quadridged horn suitable for many applications requiring a high performance over a broad band.
These high performance units covering the frequency range 2GHz to 18GHz offer high isolation with low phase and amplitude imbalance between ports. The horn maintains a low VSWR while the precision electroformed construction ensures very low cross polarisation levels.
*SMA, K and 2.4mm connectors are not hermetically sealed. Therefore to achieve IP54 rating the mated cable connection must be adequately sealed.
