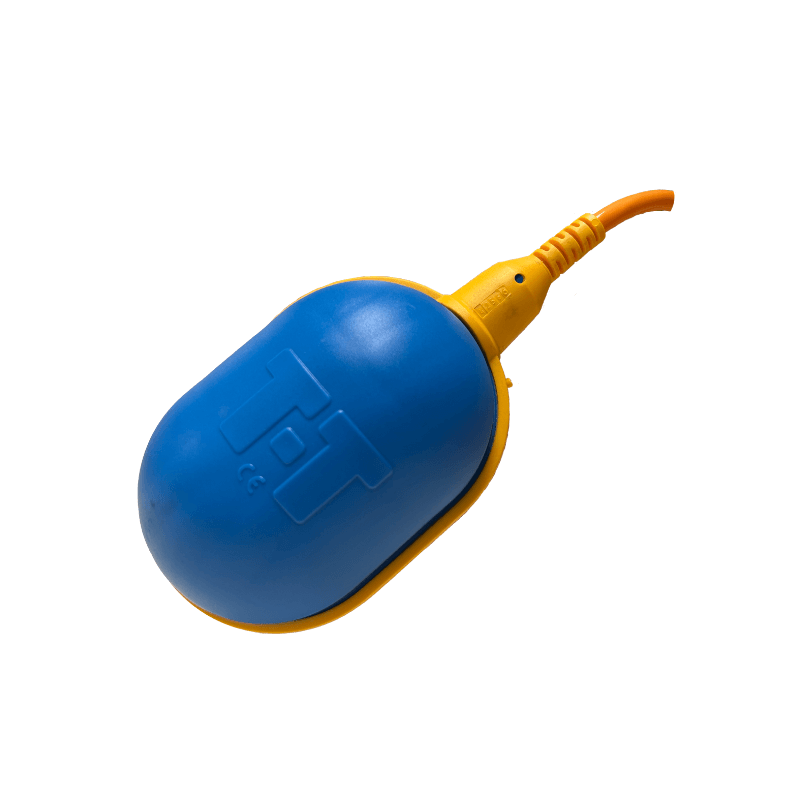

Float Switch FLO106

Product Description

Float Switches are economic and efficient liquid level sensors, simple to install, offering trouble free operation over a long life.

GENERAL FLO106 is constructed from a polypropylene housing, moulded to a 3-core EPR synthetic rubber cable, and contains an internal microswitch and rolling ball operator.

Applications:

• Level control and regulation in a tank well or sump
• Pump, motor and actuator switching systems (indirect)
• Filling and emptying of tanks and chambers
• Level indication by telemetry systems
• Flow control in flow channels
•  Level warning by initiation of high or low level alarms

Compliance:

• CE Compliance - Low voltage directive
• Other Conformity - The equipment has met the substance restrictions according to article 4 of the RoHS Directive

Specification:

• Contact rating:

- 16A (Resistive) @ 250V

 - 4a (Inductive) @ 250V

- 0.3A (Resistive) @ 250V

• Frequency: 50/60Hz
• Maximum Pressure: 5 bar
• Cable: 3-core x 0.75mm² EPR Orange Cable
• Options: Part numbers for suitable counterweights for this product:

-LT/FLOCW-1

-LT/FLOCW-2

• Weight with cable:

- 10 metre: 0.95kg ±5%

- 20 metre: 1.65kg ±5%

-30 metre: 2.35kg ±5%

-40 metre: 3.05kg ±5%

• Material: Polypropylene body and over-mould
