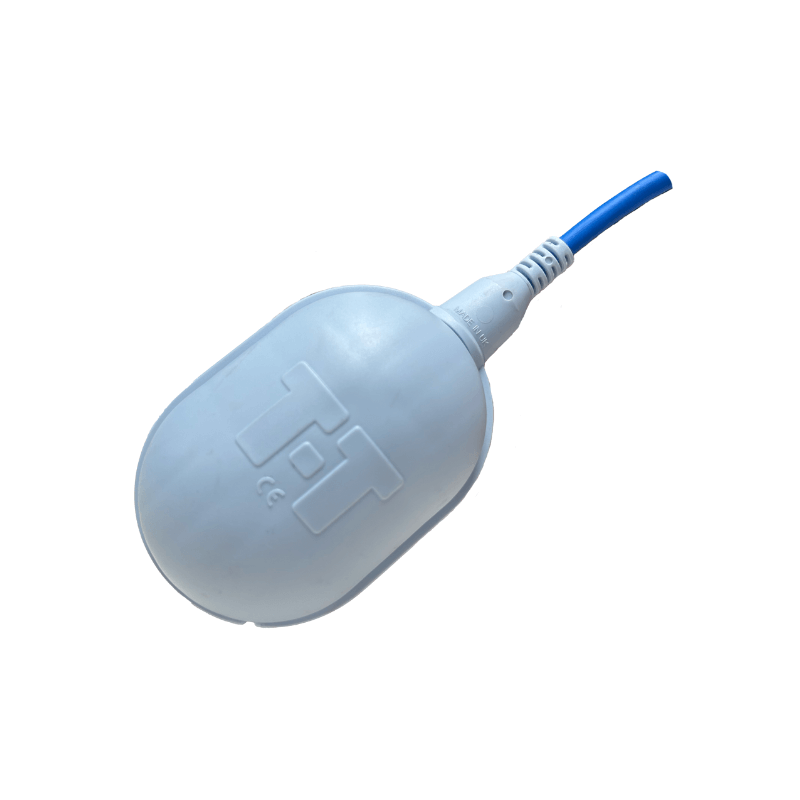

Float Switches FLO107

Product Description

Float Switches are economic and efficient liquid level sensors, simple to install, offering trouble free operation over a long life.

POTABLE FLO107 is constructed is WRAS approved materials and comprise a polypropylene housing mould to a 3-core EPDM cable and contains an internal microswitch and rolling ball operator.

Applications:

• Level control and regulation in a tank well or sump
• Pump, motor and actuator switching systems (indirect)
• Filling and emptying of tanks and chambers
• Level indication by telemetry systems
• Flow control in flow channels
•  Level warning by initiation of high or low level alarms

Compliance:

• CE Compliance - Low voltage directive
• Other Conformity - The equipment has met the substance restrictions according to article 4 of the RoHS Directive

Specification:

• Contact rating:

- 16A (Resistive) @ 250V

 - 4a (Inductive) @ 250V

- 0.3A (Resistive) @ 250V

• Frequency: 50/60Hz
• Maximum Temperature: 23°C
• Maximum Pressure: 5 bar
• Cable: 3-core x 0.75mm² light blue EPDM WRAS approved cable
• Options: Part numbers for suitable counterweights for this product:

-LT/FLOCW-5

• Weight with cable:

- 10 metre: 1.15kg ±5%

- 20 metre: 2.05kg ±5%

-30 metre: 2.95kg ±5%

-40 metre: 3.85kg ±5%

• Material: Polypropylene body and over-mould WRAS approved materials
