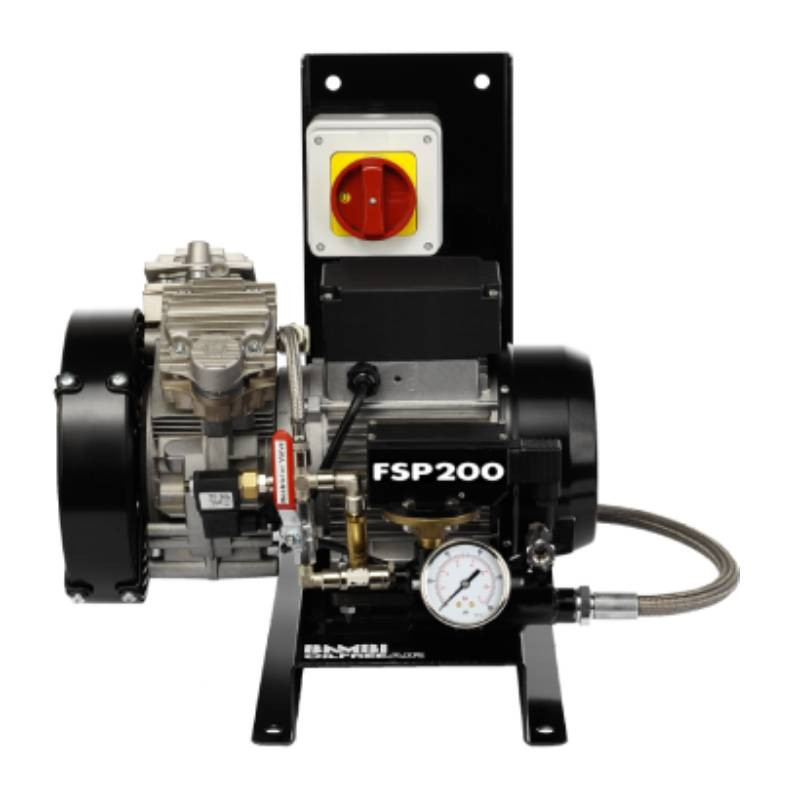

FSP200

Product Description

The FSP200 is a high-performance fire sprinkler air compressor designed to meet industry-leading specifications. Engineered for reliability and efficiency, it features an airflow restrictor for "topping up", a 0-6 bar pressure switch, and a glycerine-filled gauge for accurate pressure readings. For even greater control, the FSP200 is available with an optional Bailey & Mackay pressure switch upgrade, reducing the differential to just 0.2 bar.

Its compact and durable design makes it ideal for installations where space is limited, offering both floor and wall-mounting options. A wall-mounting template is included to make installation as easy as possible.

The FSP200 is fully compliant with LPC technical bulletins and BS EN 12845 standards for LH, OH, and HH systems, with or without an accelerator.

Designed for critical applications, this direct-drive, oil-free compressor delivers consistent performance with minimal maintenance, ensuring long-term reliability for fire protection systems.

Technical Specifications:
Motor Power: 1.5 kW (2 HP)
Duty Cycle: 50%
Maximum Working Pressure: 6 bar (87 psi)
Noise Level: 74 dB(A)
Weight: 29kg
Dimensions (HxWxD) 46 x 42 x 41 cm

Free Air Delivery (Unrestricted):
@ 1 Bar - 193 lpm
@ 2 Bar - 178 lpm

Free Air Delivery (Restricted):
@ 1 Bar - 129 lpm
@ 2 Bar - 119 lpm
