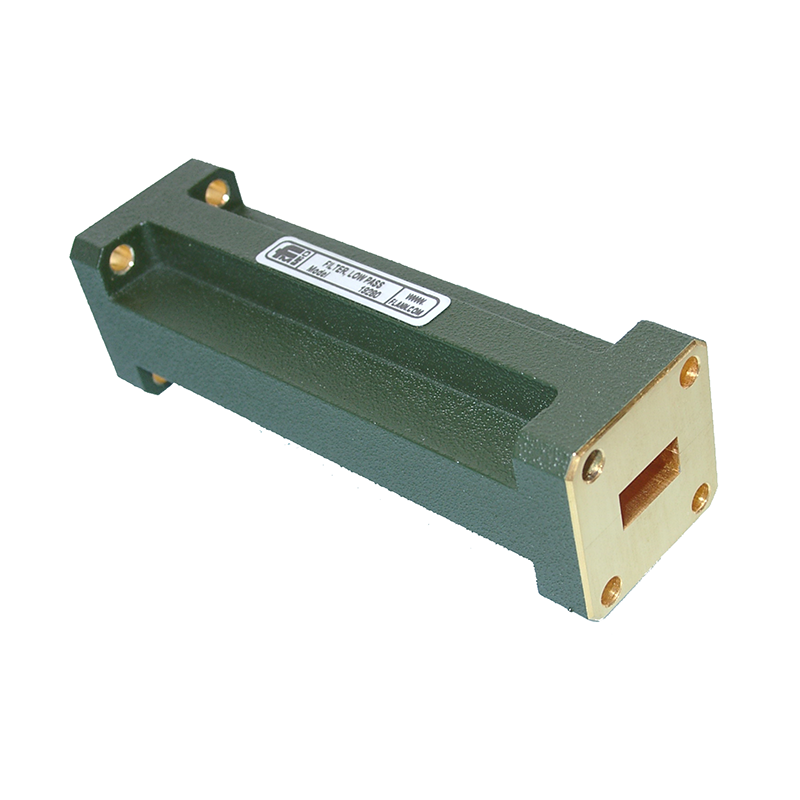

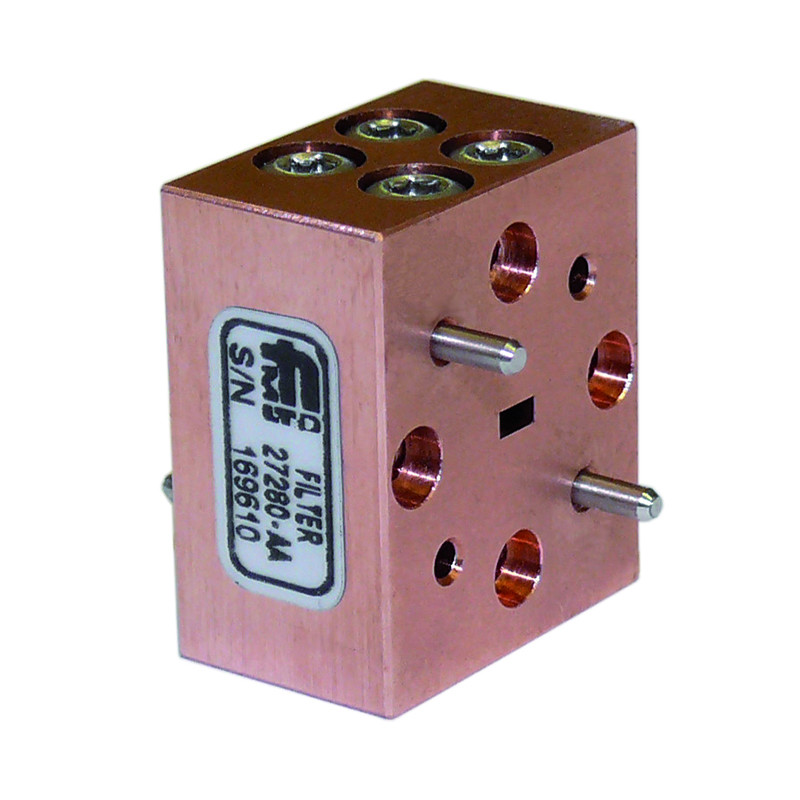

Low Pass Filters Series 280
Manufactured by Flann Microwave Ltd
Product Buying Options
Minimum Order Quantity: N/A
Additional Sales Information: To enquire about our range of Low Pass Filters, please contact the sales team on +44(0)1208 77777 or at sales@flann.com
Product Description
Features
- 40 dB Stop Band Rejection
- Models available up to 220 GHz
- High Frequency Models Available on Request
Low pass filters simplify measurements in microwave systems and enhance system performance by effectively reducing undesirable signals, i.e. harmonics, to an acceptably low level.
All models provide a very wide 'stop band' of frequencies above the recommended waveguide band. The pass band VSWR is generally better than 1.5:1 and insertion loss less than 1.5dB.
Filters of this type are particularly suitable for applications involving swept or slotted line measurements. A range of standard models is available as detailed below. Customised and special models can be combined with other devices. For example a low loss filter combined with waveguide to coax adaptor can also be supplied.
