Marsh UV

Product Description

Marsh:UV

Overview

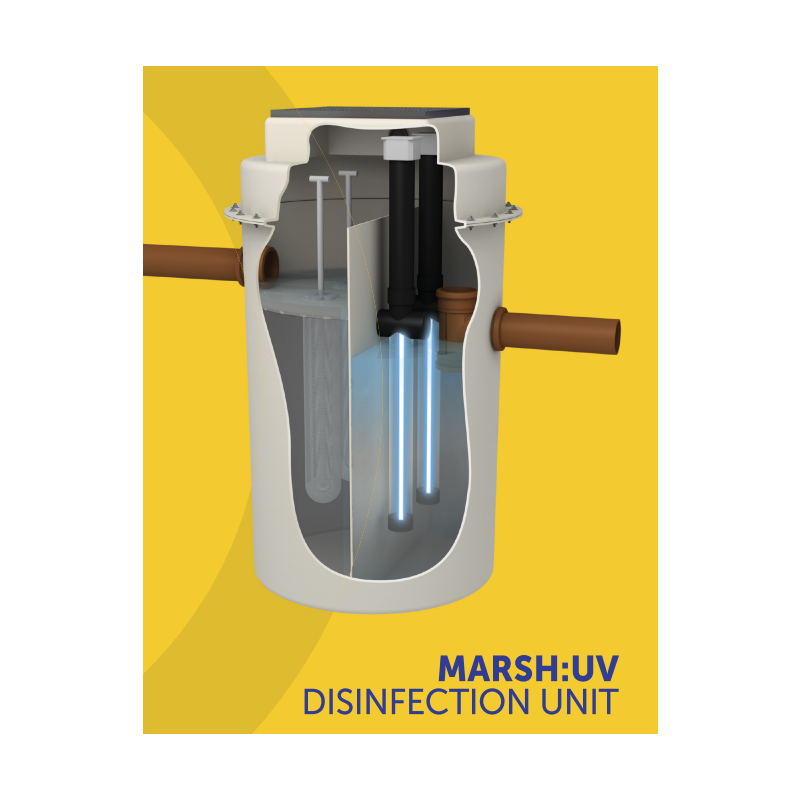

Marsh Industries has developed an innovative UV disinfection system which removes 99% faecal coliform bacteria levels from sewage treatment plant effluent.

The Marsh:UV Disinfection Unit can be supplied as an integral part within the Marsh Ultra:Polylok range of sewage treatment plants (50-500+PE) or as a stand-alone unit which can be installed at the outlet end of any existing sewage treatment plant.

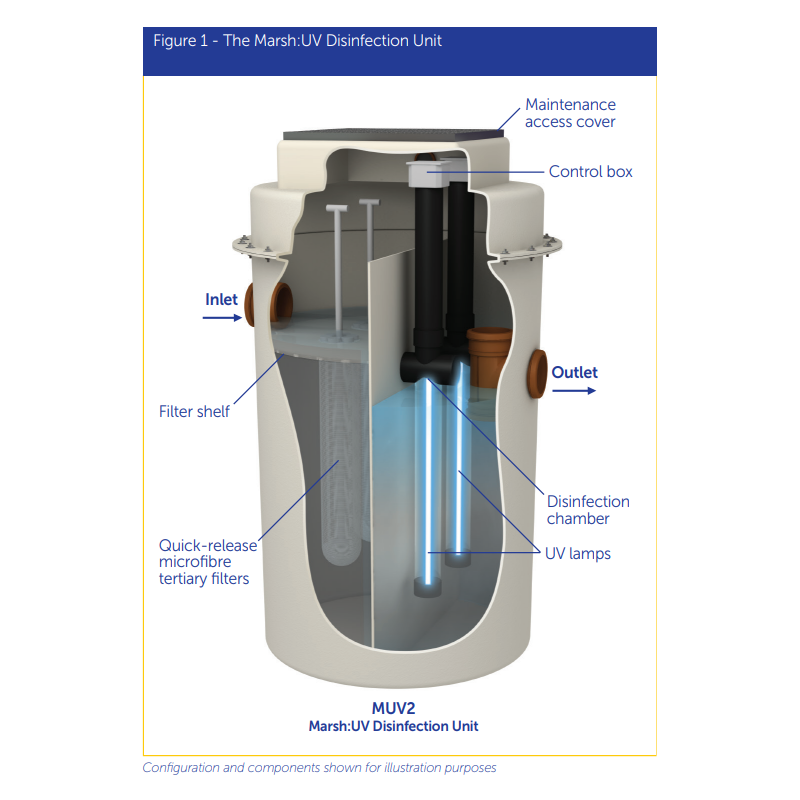

The UV light(s) are mounted in a sub-assembly which can be easily removed for periodic servicing and bulb replacement. In stand-alone units, the light assembly is mounted in a primary chamber by an anodized aluminium frame. The frame seals against the inner surface of the primary chamber to prevent flow bypass.

When the disinfection unit is filled with waste water, the ultraviolet light source operates continuously with a lamp surface temperature range of 105-120ºF providing optimum UV light output and long lamp lifetime (Power supply is via 230v Single Phase with consumption of a single UV lamp being 45 watts).

In addition to the UV disinfection assembly, microfibre tertiary filters are attached at the inlet pipe to reduce any remaining suspended solids, residual BOD and ammonia levels.

UV Treatment Performance

A single UV maximum flow through the unit is rated at 16m³ per day or a peak flow rate .056 litres per second under the following conditions:

UV dosage is greater than 5mJ/cm²
Suspended Solids – less than 30 mg/litre
BOD (5 days) – less than 30 mg/litre
If the effluent is cleaner than the above figures the level of treatment is greater
From the above conditions, the faecal coliform reduction by the Marsh:UV Disinfection Unit exceeds 99.9% or 3-logs, at the end of UV lamp life, which is two years of continuous operation.

Effluent Disinfection

For over a century scientists have known about the ability of ultraviolet light (UV) to disinfect and, for many years, UV-C lamps have been used for disinfection in medical settings, food production and a number of other places.

Effluent disinfection using UV light is the decontamination of outflowing water from sewage treatment plants, sewer pipes or industrial outfall into natural bodies of water.

Without UV disinfection, effluent can retain a mass of hazardous pathogens that could infect the natural water, causing potentially serious environmental health issues.

UV light deactivates pathogens so that they cannot survive in clean water, meaning they cannot replicate and infect future waterways.

UV light is one of the safest disinfectants available due to the lack of chemicals used and produced by the device.

The most common method of effluent disinfection used in off-mains sewage treatment plants is to install and connect a separate UV disinfection unit to the outlet of the sewage treatment plant.

The UV disinfection unit contains the necessary UV light system to match the volume of outflow from the sewage treatment plant.

Benefits

Removes 99% faecal coliform bacteria levels from sewage treatment plant effluent

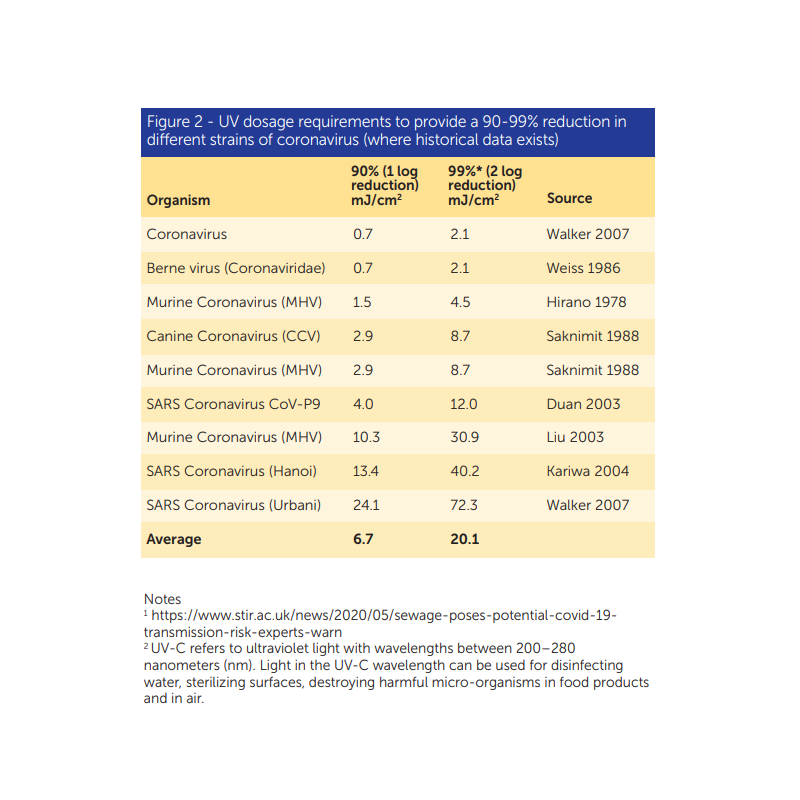

Optimum UV light distribution assembly for maximum disinfection (UV dosage requirements to provide a 90-99% reduction in different strains of coronavirus)
Can be supplied as an integral part within the Marsh Ultra:Polylok range of sewage treatment plants (50-500+PE) or as a stand-alone unit
Unique microfibre tertiary filters further reduce remaining suspended solids, residual biological oxygen demands and ammonia levels
Optimised for minimal running costs
Heavy duty shell as standard to enable installation in all ground conditions
Integral eye bolts for improved on-site handling
‘Keying-in flange’ assists anchoring into granular or concrete surround
Pedestrian cover included as standard
