Model 56 (Open Face/Pneumatic Lift - Flat Lapping Machine)

Manufactured by Lapmaster Wolters Limited

Product Buying Options

Additional Sales Information: Contact our sales office on 0044 1752 891600

Product Description

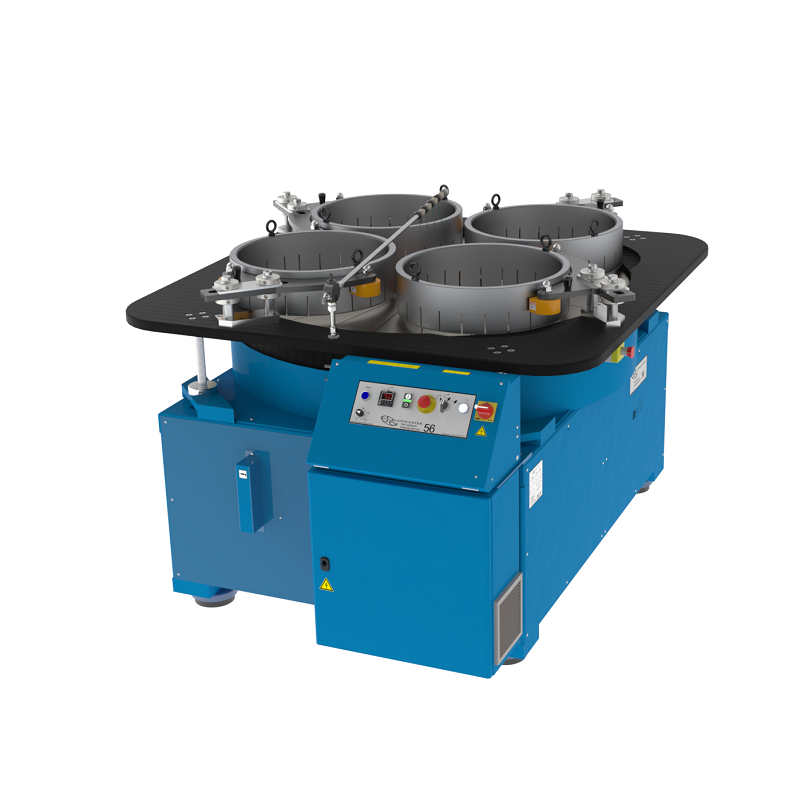

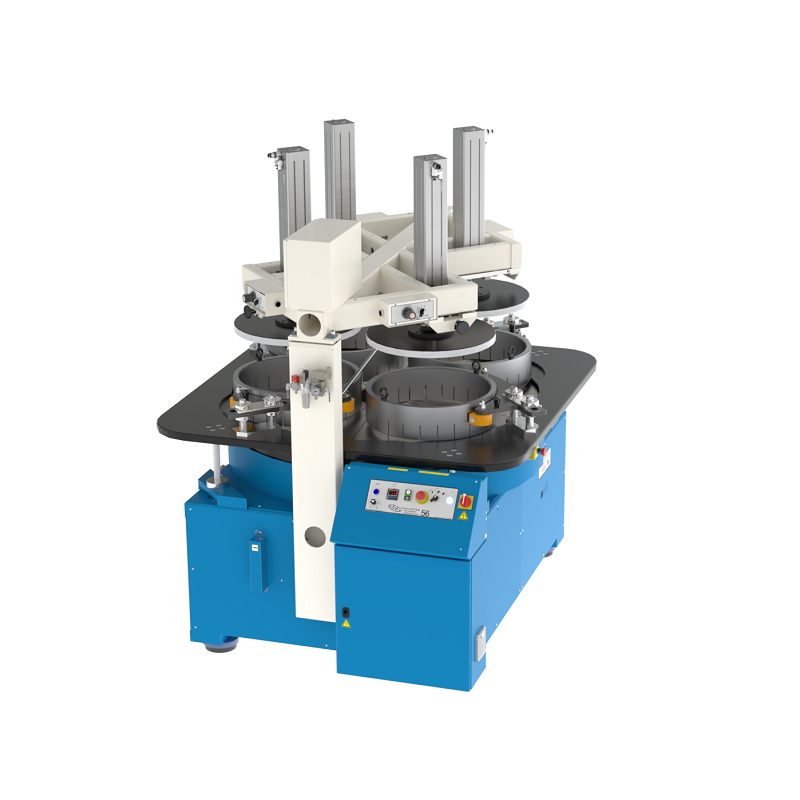

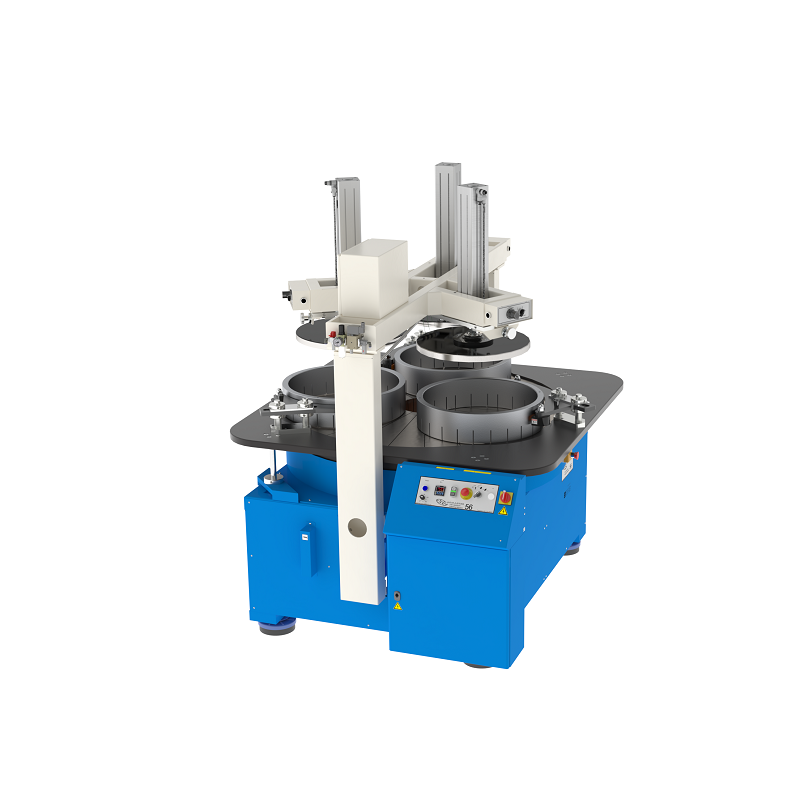

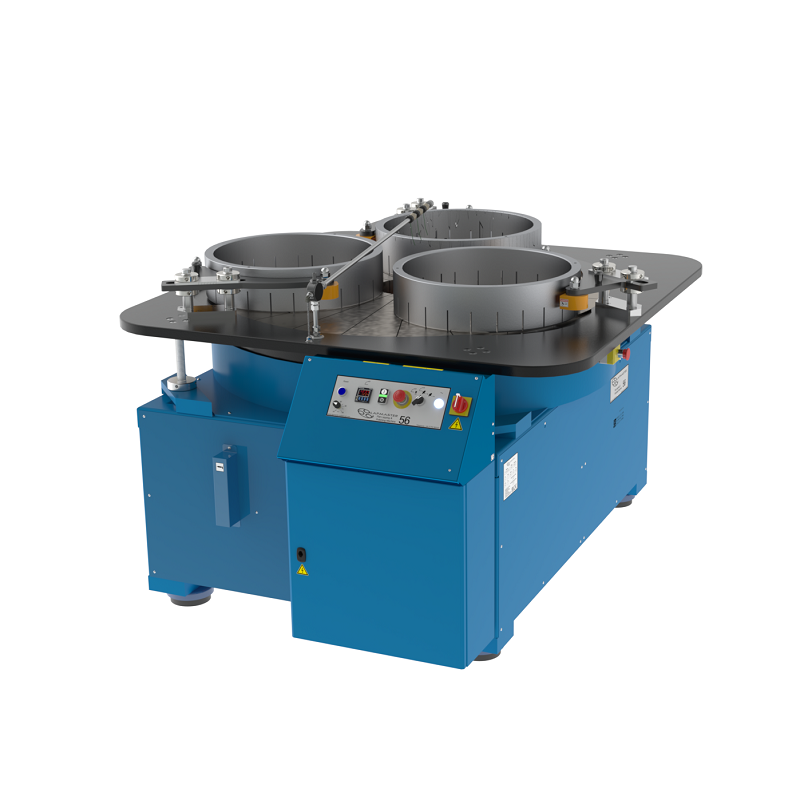

Model 56 Open Faced machine is an upgraded version of the Model 48, with a larger diameter lap plate and support plate and correspondingly larger conditioning rings. The serrated lap plate is made up of twenty four individual segments which are bolted to the support plate. It comes with optional guard, pneumatic lift, 3 or 4 rings.

  • Heavy duty floor standing base with integrally mounted drive motor, reduction gearbox and abrasive distribution system
  • Heavy duty work table, vertically adjustable
  • Three/ four conditioning rings, with adjustable, sealed roller bearing yoke assemblies to maintain lap flatness
  • Electrical system wired for various voltages High torque drive unit with 14.75hp/ 11 kW motor and gear reducer
