Open Spring Mountings
Manufactured by Christie & Grey Limited
Product Buying Options
Product Description

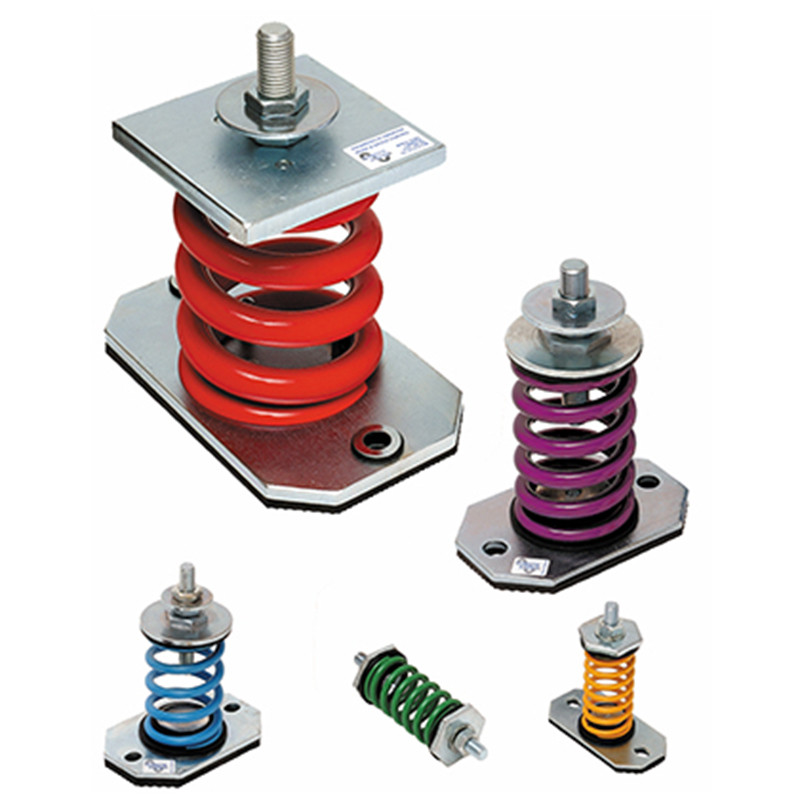

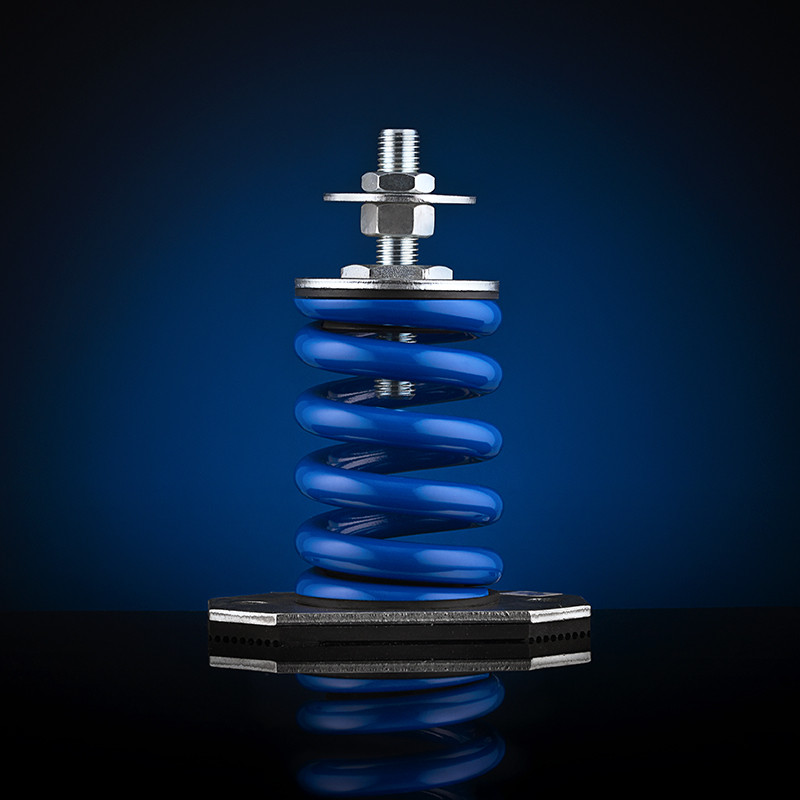

This unique range of Open Spring mountings uses integral rubber end fixing of the springs which sets them apart from all other designs. Larger capacity open spring mountings use rubber grommets and base pads to ensure no direct metal path between the machine and the seating, thus enhancing high frequency noise isolation.
Originally designed for use with Type IPF Inertia Pouring Frames, the OS mountings are now widely used to isolate vibration from every conceivable type of rotating and reciprocating machine. Where control of transient motion is required Open Spring mountings can be used in conjunction with our Viscous Dampers Type SFD.
Design Features
• Unique expanding rubber end fixing of springs which also provides high frequency attenuation.
• Nominal 20 & 25mm deflection colour coded helical steel springs to BS1726 Class B with 50% overload capacity and O/D equal to at least 85% of working height.
• Can be bolted to supporting structure or free standing on 6 mm thick ribbed rubber pad (3 mm on OSS).

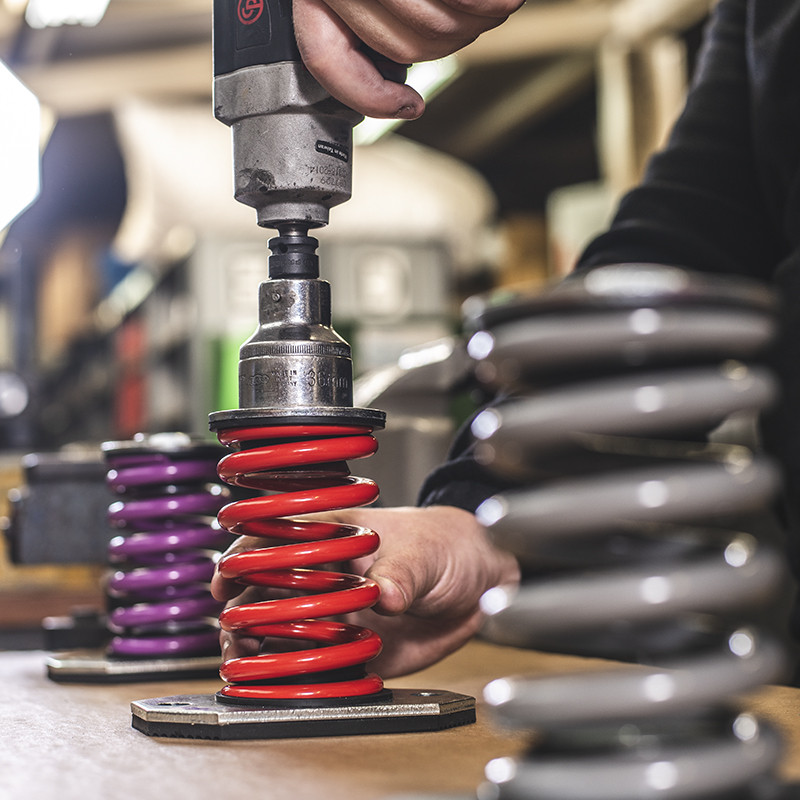

• Fully height adjustable (OS25).
• All steel components are zinc plated.
• No snubbing gives maximum efficiency.
Typical Applications
• Axial and Centrifugal Fans
• Air Handling Units
• Low Level Pipework.
• With Inertia Bases type IPF for Pumps, Generating Sets and Compressors etc.
