TRATOS® 2491B / 6701B

Product Description

As the actual manufacturer of TRATOS® 2491B / 6701B cables, not simply a distributor, Tratos has total control of the design, quality and manufacturing process from the purchase of the raw materials through to final testing and despatch to our customers. Having control of the manufacturing process Tratos has developed these cables to have the optimum balance of properties, class 5 conductors give the flexibility to ease installation and movement in use. Special fire performance, toughness to withstand pulling into conduit and trunking combined with a smooth, low coefficient of friction surface to prevent jamming.

Tratos manufacture a complete range of cables with special fire performance for building and construction applications that are both safe and reliable when correctly selected, installed and properly used

Standards

BS EN 50525-2-31/ UNE 211002 – Design
BS EN 60228 – Conductor
UNE 211002– Insulation
BS EN 60332-1-2 – Test on single vertical cable
BS EN IEC 60332-3-22 – Test on bunched wire or cable
BS EN 61034-2 – Smoke emission > 60%
BS EN 50525-1 – Assessment of halogens for all non-metallic materials

Application
Tratos 2491B and 6701B flexible cables are used inside appliances, panels, conduit and general normally fixed wiring applications where there is a requirement for flexibility during installation and where, in the event of a fire, a need to minimise the risk from smoke and toxic fumes but where circuit integrity is not required. Not suitable for wet or applications where the cable will be immersed in water or fluids.

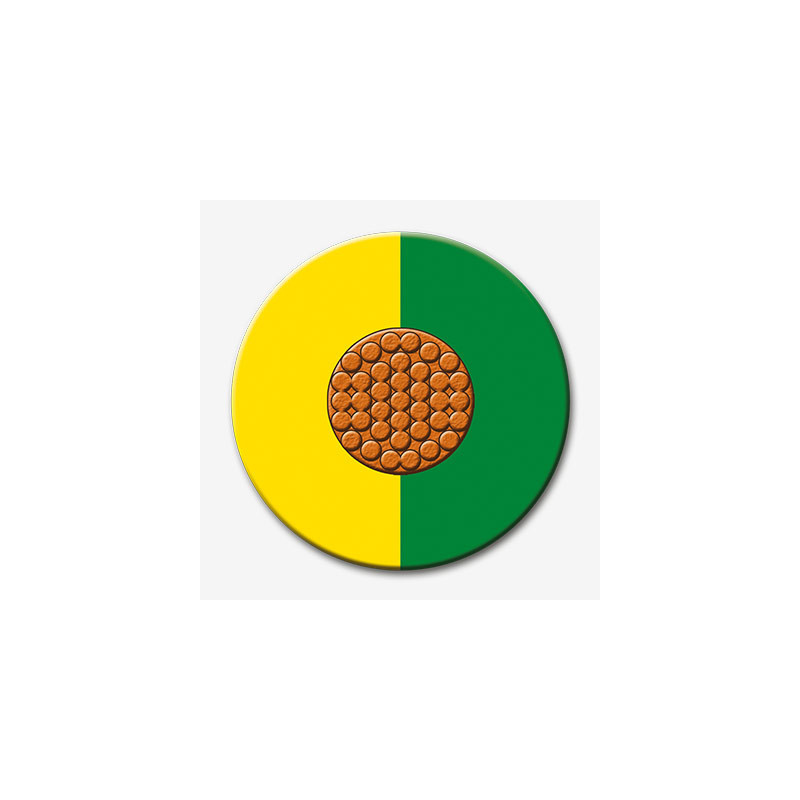

Construction
Conductors: BS EN 60228 class 5 plain copper
Insulation: Type TIZ1 thermoplastic polyolefin low smoke, zero halogen (LSZH) material according to UNE 211002
Insulation Colour: black, blue, brown, grey, orange, pink, red, turquoise, violet, white and green-and-yellow.
