Tratos®CNE CONCENTRIC NEUTRAL EARTH – PVC SHEATH

Product Description

Tratos CNE Cable (CONCENTRIC NEUTRAL EARTH) – 0.6/1 KV -PVC SHEATH

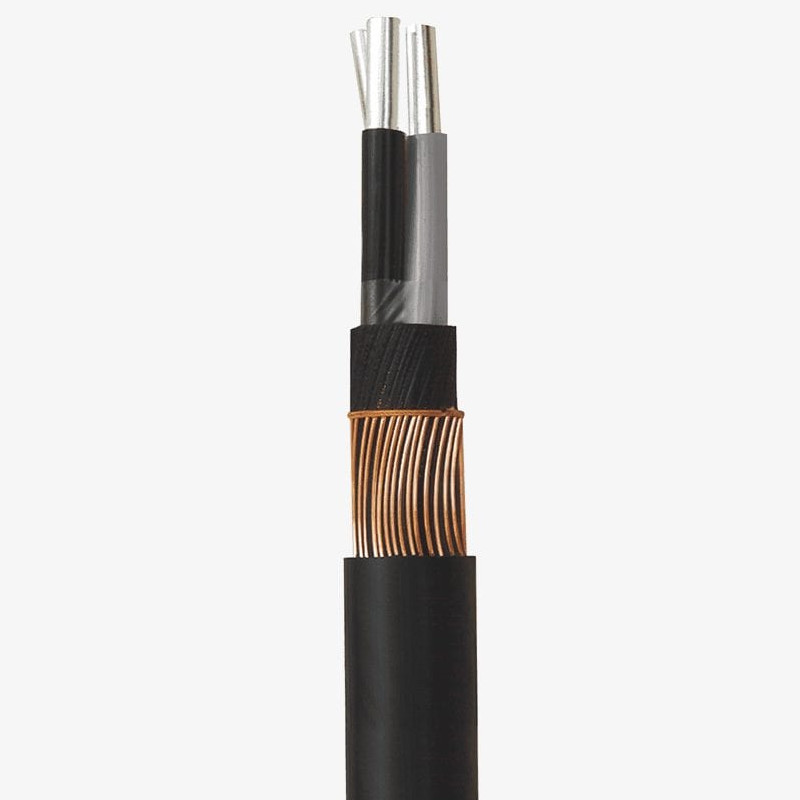

LV polymeric insulated cables for use by distribution and generation utilities for connection to buildings. Specification for CNE service cable with PVC sheath to BS 7870 3.21. Conductor – solid round aluminium (Class 1) or stranded plain copper (class 2). Insulation phase conductors – XLPE Type DIX 3 conforming to the requirements given in BS 7870-1 annexe B. Concentric conductor Combined plain annealed copper neutral and earth. Oversheath – PVC Type DMZ 23 conforming to the requirements given in BS 7870-1 annexe B. Colour – Black (other colours can be supplied on request). Core Colours 1 core – Brown. 3 core – Brown, Black, Grey. Voltage rating Uo/U 0.6/1kv. Tratos CNE cables are designed for a maximum continuous conductor temperature of 90 deg c and a maximum short circuit temperature of 250 deg c. Standard sizes available (other sizes available on request), Aluminium conductors. 25mm single and 3 core. 35mm single and 3 core. Copper conductors. 4mm single core. 16mm single and 3 core. 25mm single and 3 core.

Standards
BS 7870 3.11 (implements Part 5S of HD 603 S1 A3)
BS 7870-1
BS EN 60228
BS EN 60332-1-2

Application
Low Voltage service cable for use by the Distribution Network Operators (DNOs) and Independent Distribution Network Operators (IDOs) for the final connection to buildings.

Construction
Conductor: stranded plain annealed copper (Class 2 or solid aluminium (Class 1)
Insulation: XLPE Type DIX 3
Assembly of cores: 3 phase cables cores laid up
Bedding: 3-phase cables only – tape
Concentric neutral/earth conductor: plain annealed copper wires
Oversheath: PVC Type DMV 23
Colour: Black (other colours can be supplied on request)
Marking: TRATOS ELECTRIC CABLE 600/1000V BS 7870-3.11 (Number of Cores and Size) (Year of Manufacture)
