VT75D

Product Description

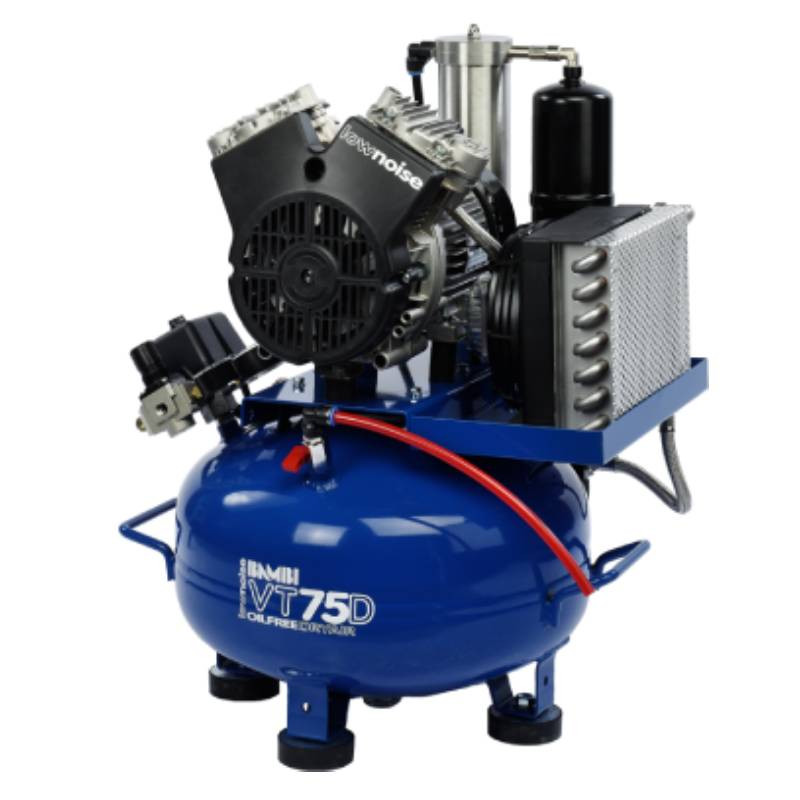

VT75D oil free compressors have been designed for applications where a reliable, clean, dry supply of air is required. Ideal for laboratories, food and beverage production, dental and medical environments, and other precision industries, the VT75D has been the compressor of choice for many where quality can’t be compromised.

The Vee Twin pump compressor features the very latest “tilting piston” technology. Perfect when you demand reliable, oil free air for critical applications like; dentistry, scientific laboratories, food packaging, pneumatic controls, hospital ventilators, drink dispensing. Fitted with a “soft start” solenoid valve, the air pressure in the pump discharges whenever the power is disconnected, protecting the compressor from overload and extending the service life.

At the heart of the VT75D is our innovative desiccant dryer unit, engineered to deliver “desert dry” air. The multi-row, fan-assisted aftercooler efficiently lowers air temperature, while a centrifugal filter captures and removes water before the air enters the dryer, reducing the dew point to as low as -40°C for optimal dryness.

Technical Specifications:
Motor Power: 0.55 kW (0.75 HP)
Duty Cycle: 50%
Air Receiver: 24 L
Maximum Working Pressure: 8 bar (114 psi)
Noise Level: 72 dB(A)
Weight: 40 kg
Dimensions (HxWxD) 64 x 52 x 49 cm

Free Air Delivery:
@ 1 Bar - 108 lpm
@ 2 Bar - 96 lpm
@ 3 Bar - 85 lpm
@ 4 Bar - 74 lpm
@ 5 Bar - 65 lpm
@ 6 Bar - 57 lpm
@ 7 Bar - 48 lpm
@ 8 Bar - 45 lpm
