VTS200D
Manufactured by Bambi Air Ltd
Product Buying Options
Product Description

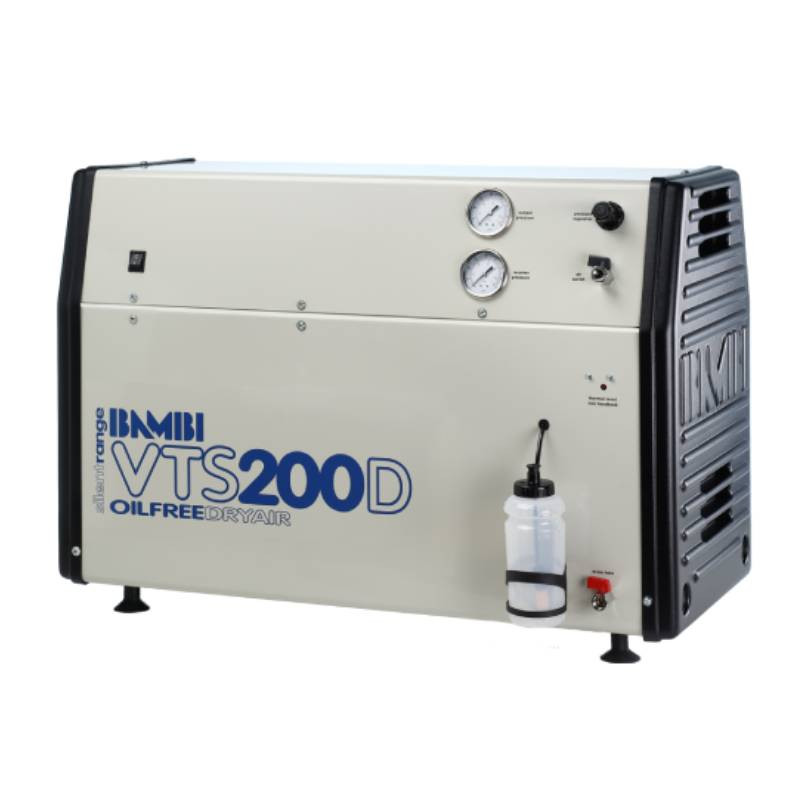

The VTS200D Silent Oil-Free Compressor is designed for applications where clean, dry, and ultra-quiet air is essential. Ideal for laboratories, food and beverage production, dental and medical environments, and other precision industries, this advanced system ensures reliable, contaminant-free air with minimal noise disruption.

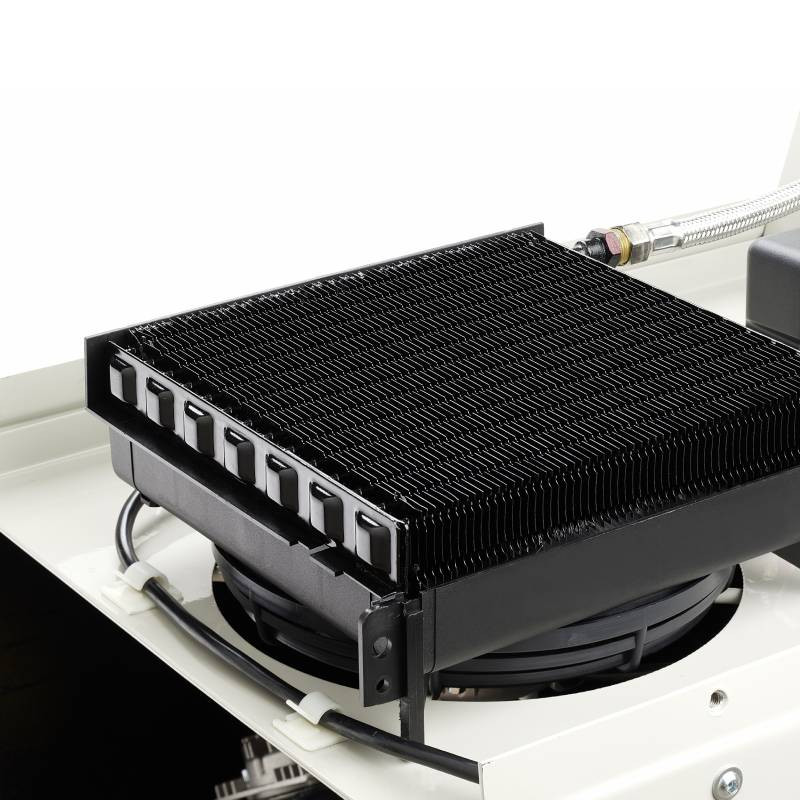

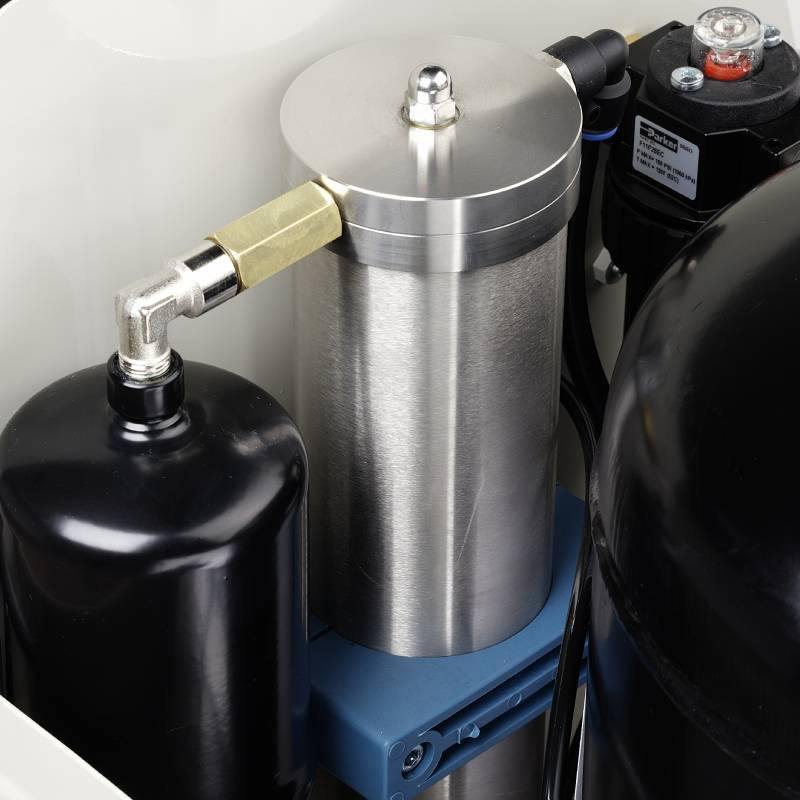

At the heart of its performance is our innovative desiccant dryer unit, engineered to deliver “desert dry” air. The multi-row, fan-assisted aftercooler efficiently lowers air temperature, while a centrifugal filter captures and removes water before the air enters the dryer, reducing the dew point to as low as -40°C for optimal dryness.

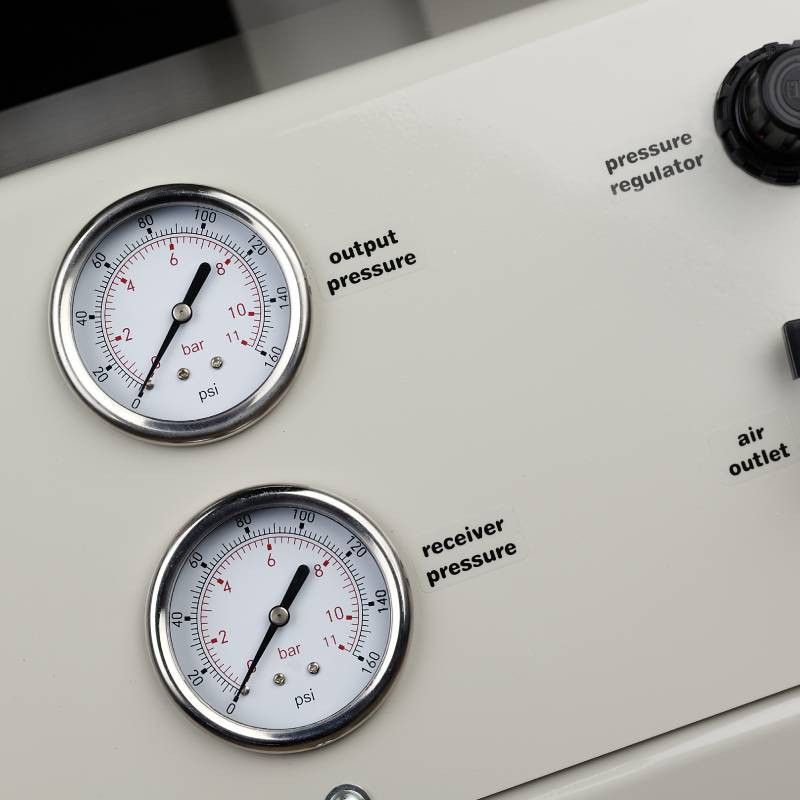

The air outlet and drain points are positioned at the front of the machine for quick and easy access. Additionally, a built-in condensate collection bottle automatically collects purged water from the centrifugal filter, making maintenance even easier.
The custom-engineered enclosure provides exceptional noise reduction, allowing the VTS200D to be positioned close to users without causing disruption, perfect for noise-sensitive environments.
Technical Specifications:
Motor Power: 1.5 kW (2 HP)
Duty Cycle: 50%
Air Receiver: 23 L
Maximum Working Pressure: 8 bar (114 psi)
Noise Level: 55 dB(A)
Weight: 76 kg
Dimensions (HxWxD) 65 x 93 x 48 cm
Free Air Delivery:
@ 1 Bar - 193 lpm
@ 2 Bar - 178 lpm
@ 3 Bar - 164 lpm
@ 4 Bar - 150 lpm
@ 5 Bar - 142 lpm
@ 6 Bar - 130 lpm
@ 7 Bar - 122 lpm
@ 8 Bar - 116 lpm
