Type 3
Manufactured by Buttonfix Limited
Product Buying Options
Product Capacity: 100,000 per week
Additional Sales Information: Please see https://www.button-fix.com/where-to-buy
Product Description

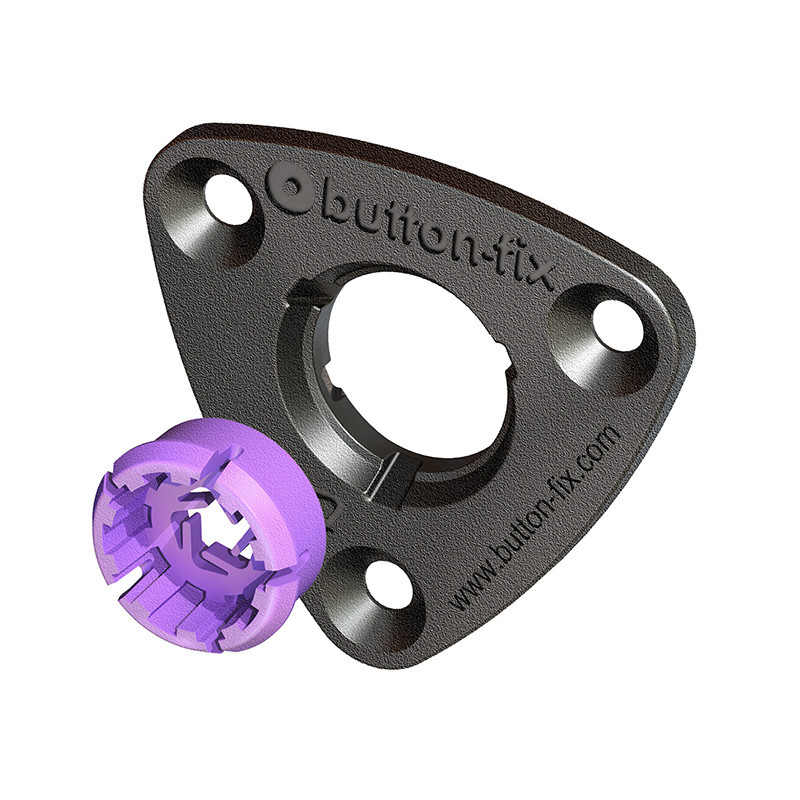

Our new push-on/pull-off mount for wall and ceiling panels.
Simply connects parallel panels, including panels with no clearance at the side. It can be surface-mounted or semi-recessed Our new push-on/pull-off mount for wall and ceiling panel.
Simply connects parallel panels, including panels with no clearance at the side. It can be surface-mounted or semi-recessed into the panel and its installation depth matches the Type 1 Button-fix, allowing the two fasteners to be used to hang adjacent panels.
The Fix housing is moulded from PBT and the Button is acetal - both strong and durable engineering polymers. As a general guide, four Button-fix Type 3 fasteners on a vertical panel will support loads weighing up to a maximum of 60kg (132 lbs), provided that the screws and substrate are properly matched and all other installation instructions are complied with. Four Type 3 Button-fixes can also support a ceiling panel of up to 10kg (22 lbs). Manufactured in the UK.
